Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

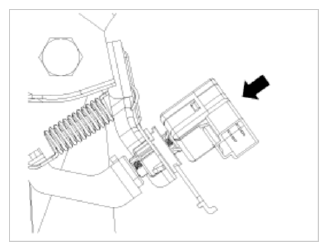

Fig 1: Inserting Stop Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA
After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate (B) by pushing.

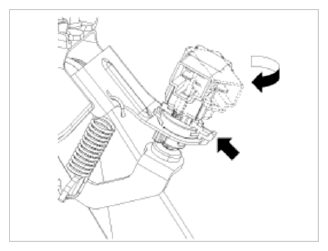

Fig 2: Turning Stop Switch
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance: 1.0 ~ 2.0 mm (0.04~ 0.08 in.)

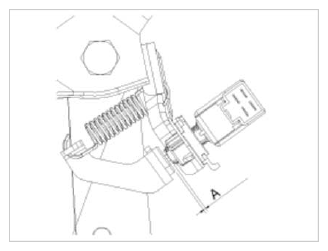

Fig 3: Identifying Gap Between Stop Lamp Switch And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Connect the stop lamp switch connector.
NOTE: If the gap between stop lamp switch and bracket is not 1.0 ~ 2.0mm (0.04~ 0.08in), perform the above process again.
Install the lower crash pad.
(Refer to the "CRASH PAD ")
