Repair procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Insert the pistion in the cylinder the SST (09581-11000).

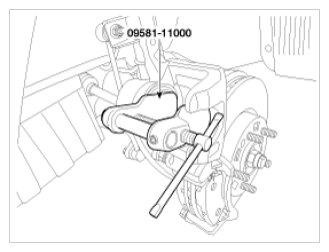

Fig 1: Inserting Piston Cylinder Using SST (09581-11000)
Courtesy of HYUNDAI MOTOR AMERICA
After installation, bleed the brake system.
(Refer to BRAKE SYSTEM BLEEDING )
CAUTION:
- Do not hit piston end by hammer or prying directly against piston face with screwdriver to push in piston.
- Using wood or used pad to protect piston end and pushing the wood or pad is recommended.
- When spreading a piston, SST should be cover all area of piston end face.
