Driver Front Seat Module (DSM): Removal

NOTE: LHD driver seat shown, RHD driver seat similar.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

  1. 2.

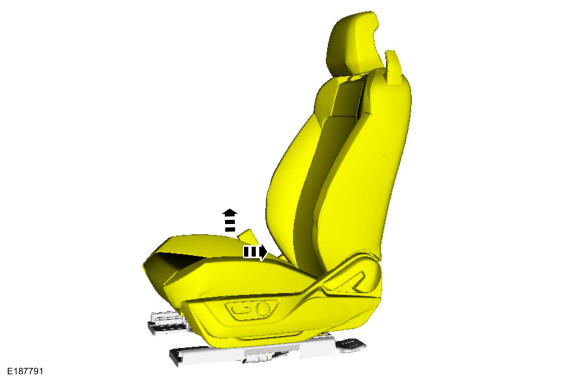

    Position the driver front seat to the full rearward and full upward position.
GFD132968Courtesy of FORD MOTOR COMPANY

  1. 3.

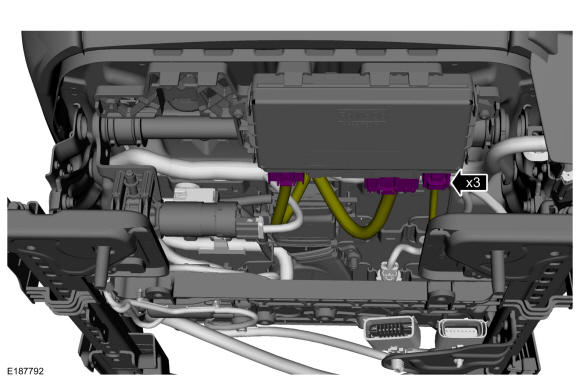

    Disconnect the DSM electrical connectors.
GFD132969Courtesy of FORD MOTOR COMPANY

  1. 4.

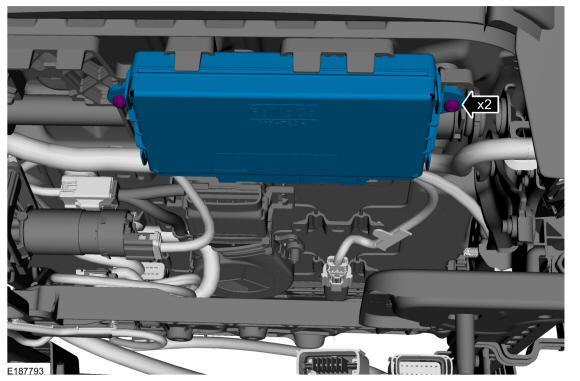

    Remove the screws and the DSM.

    Torque: 18 lb.in (2 Nm)

GFD132970Courtesy of FORD MOTOR COMPANY
