In-Vehicle Temperature and Humidity Sensor: Notes
WARNING: This page is about a different car, the 2016 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

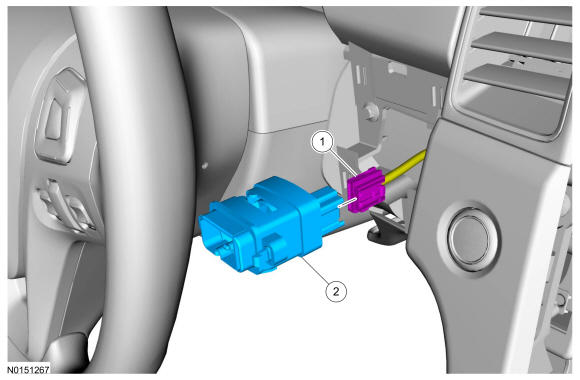

Taurus and Police Interceptor vehicles with floor console shown; Police Interceptor vehicles without floor console, the in-vehicle temperature and humidity sensor is located behind the lower center instrument panel finish panel.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | In-vehicle temperature sensor electrical connector |
| 2 | 19C734 | In-vehicle temperature sensor |
