Powertrain Control Module (PCM) (2.5L)

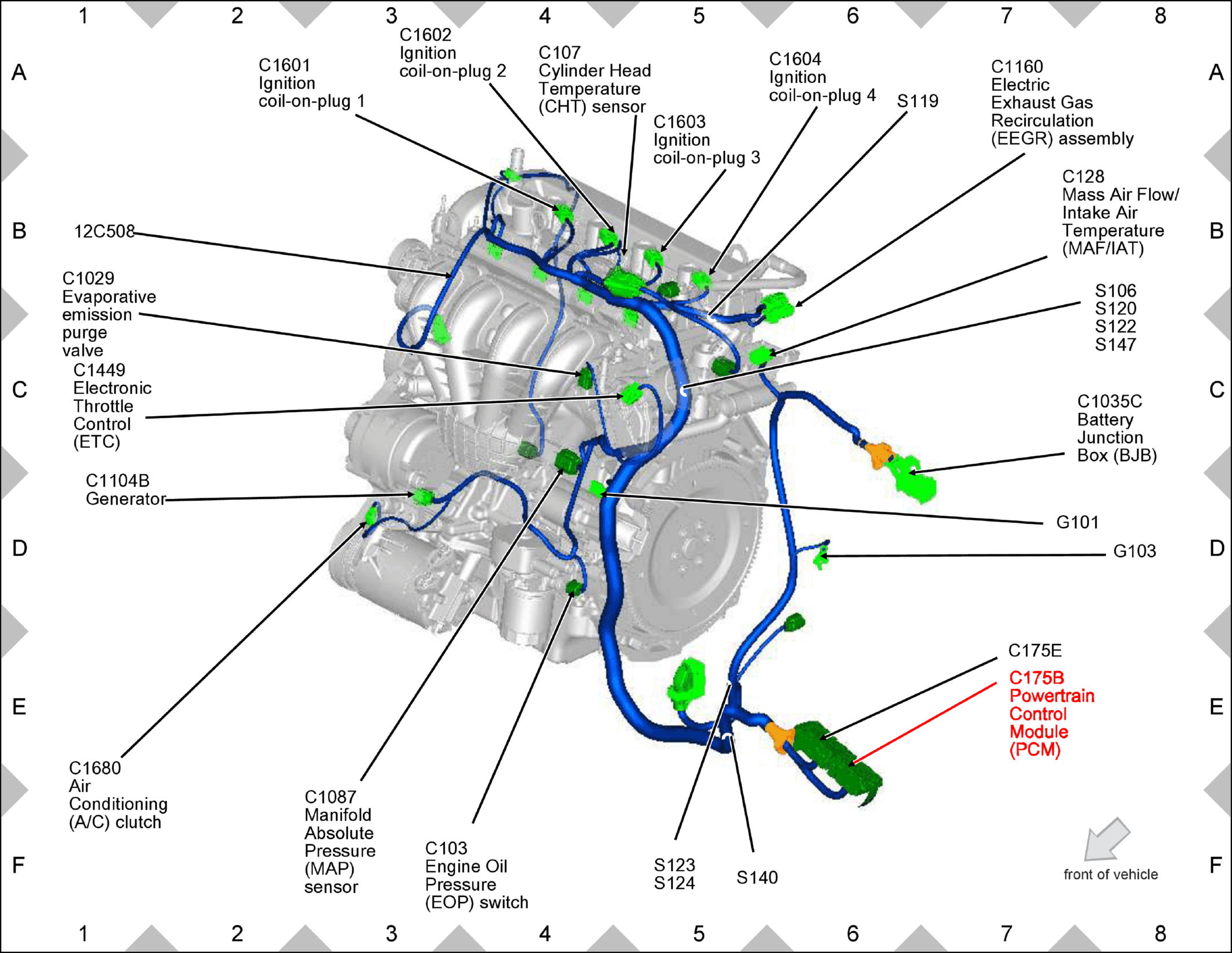

Fig 1: Powertrain Control Module (PCM) Component Location (2.5L)
GFDW64345Courtesy of FORD MOTOR COMPANY
