Steering Angle Sensor Module (SASM)

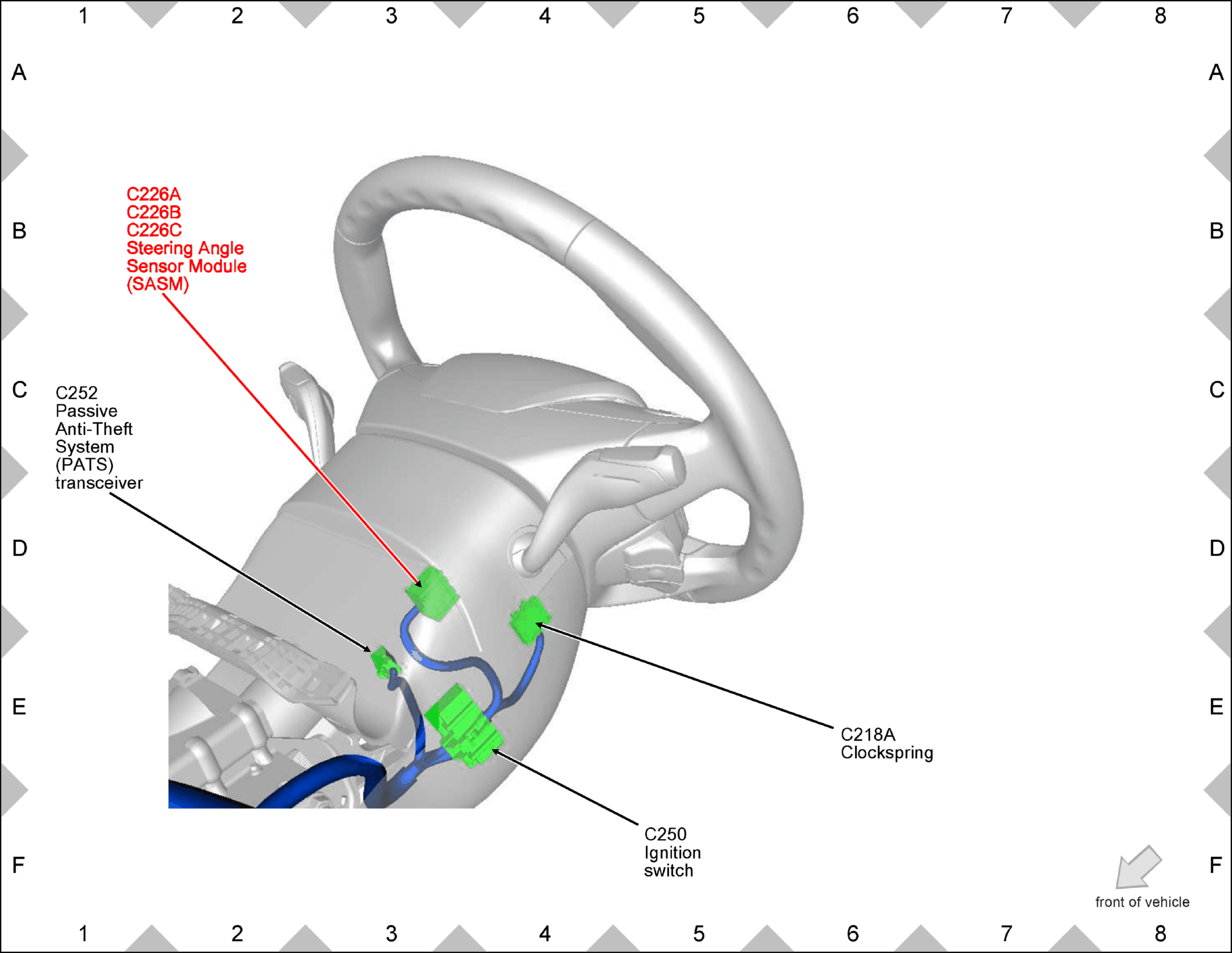

Fig 1: Steering Angle Sensor Module (SASM) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
