Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire.Refer to: Wheel And Tire .
NOTE: Make sure that the sensor housing is clean and free of foreign material.

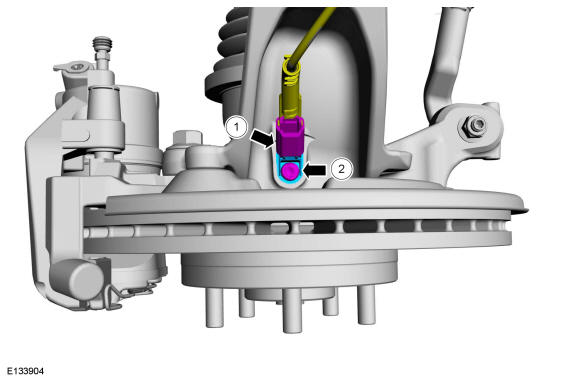

1. Disconnect the electrical connector.
2. Remove the bolt and the front wheel speed sensor.
  Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
