Powertrain Control Module (PCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health And Safety Precautions .
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.Use the General Equipment: Ford Diagnostic Equipment

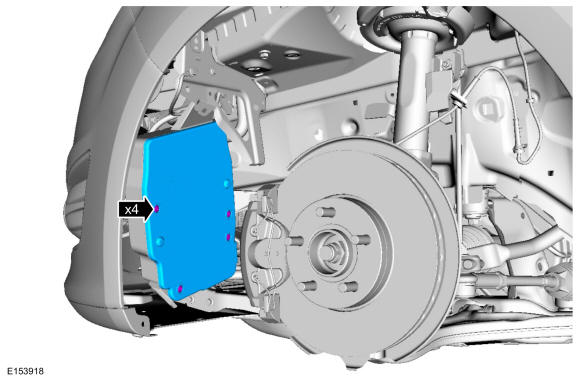

- Remove the LH inner fender splash shield.Refer to: Fender Splash Shield .
