Connector Repair Procedures

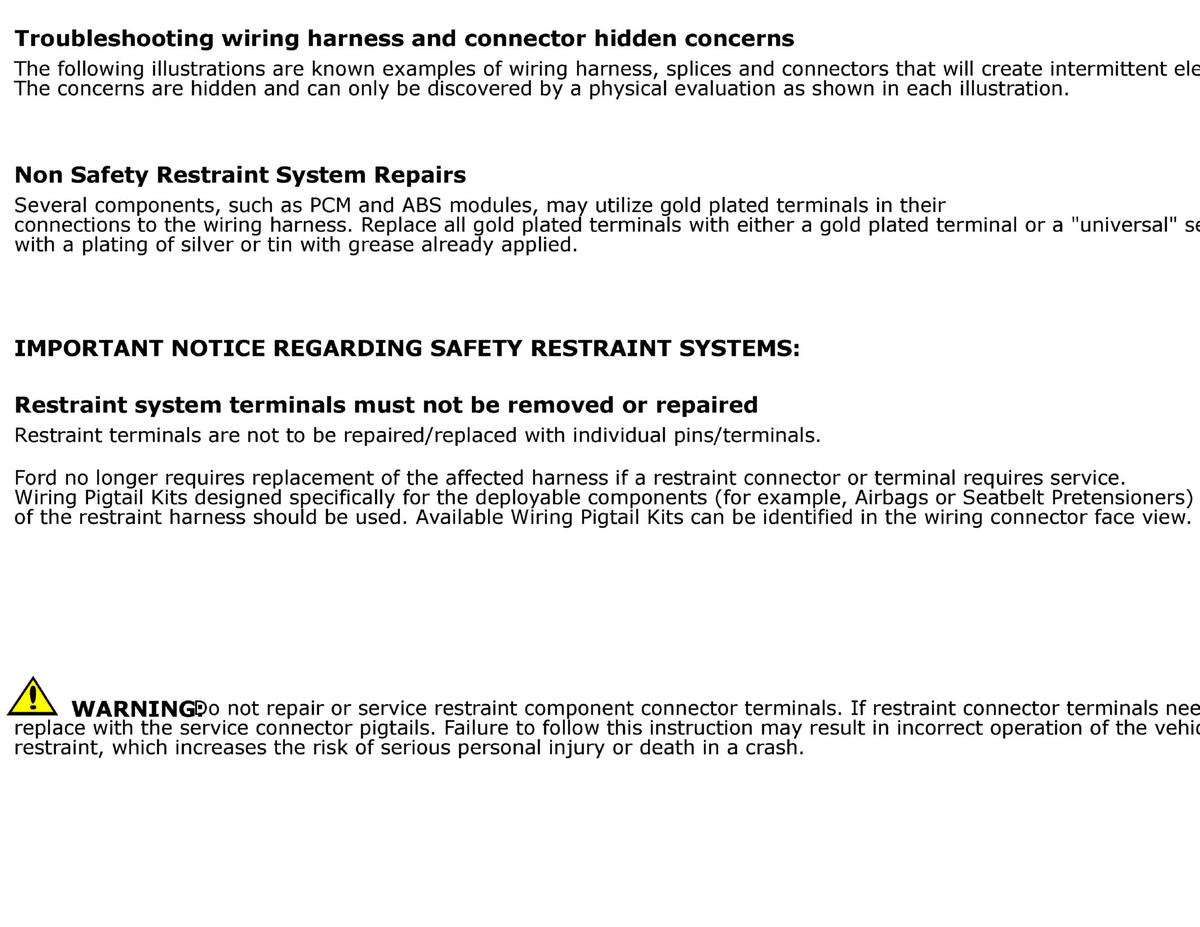

GFDW88772Courtesy of FORD MOTOR COMPANY

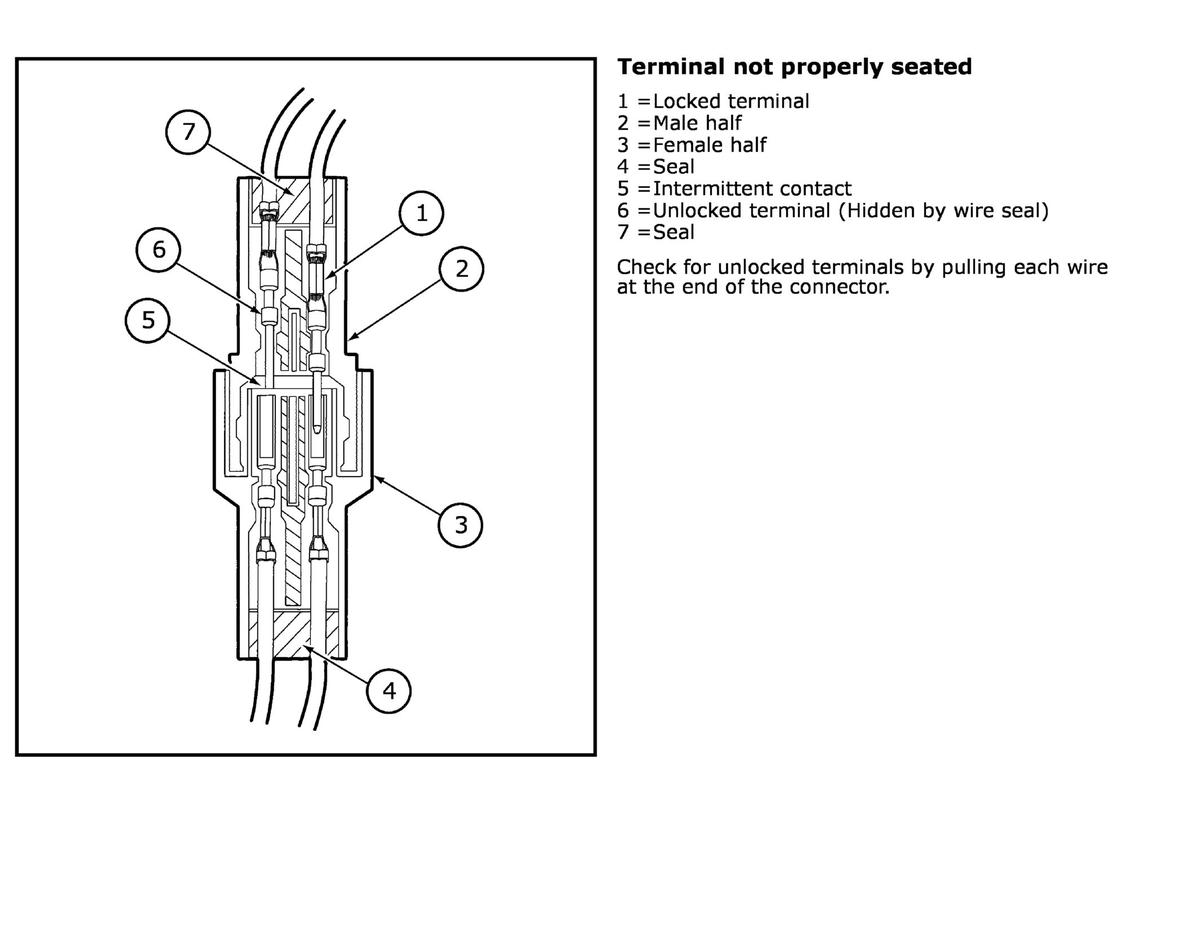

GFDW88773Courtesy of FORD MOTOR COMPANY

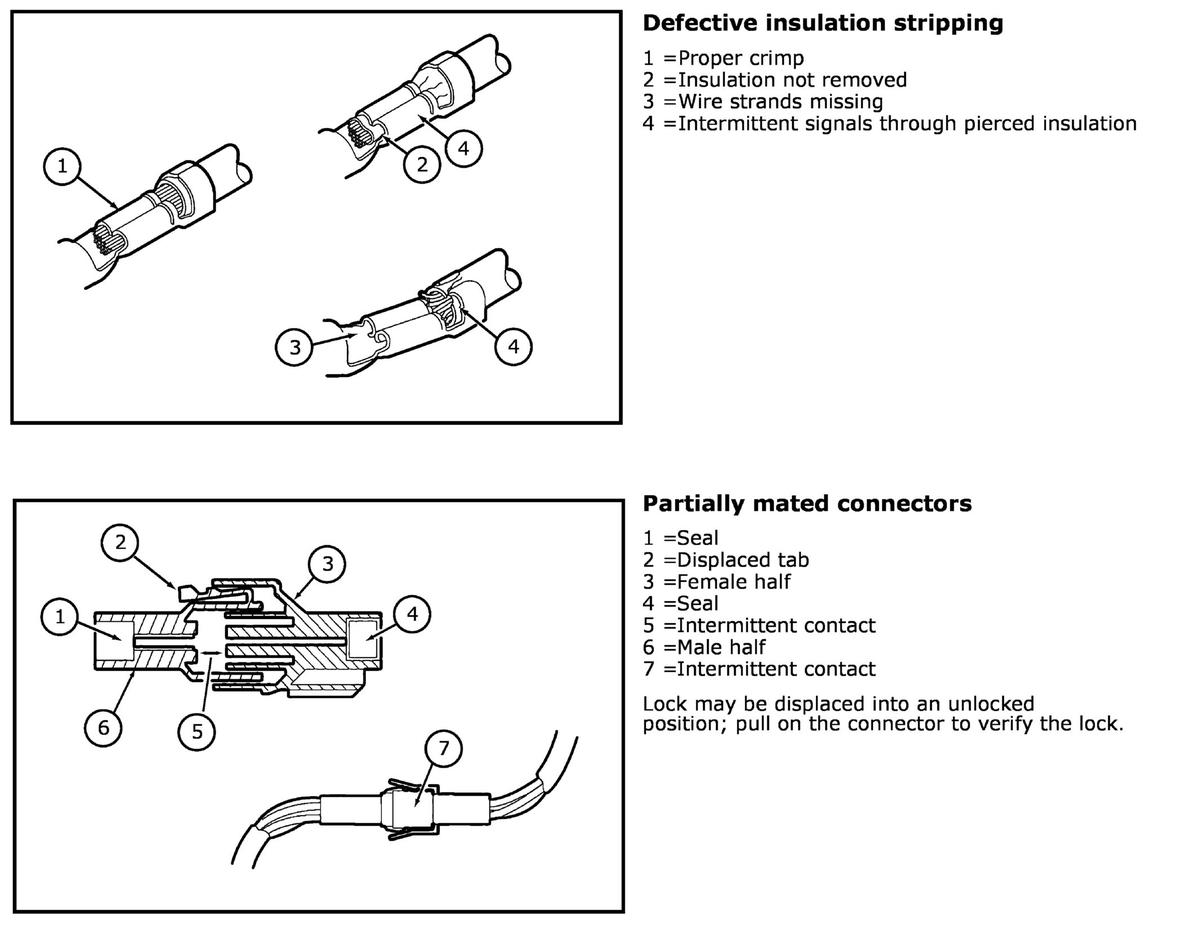

GFDW88774Courtesy of FORD MOTOR COMPANY

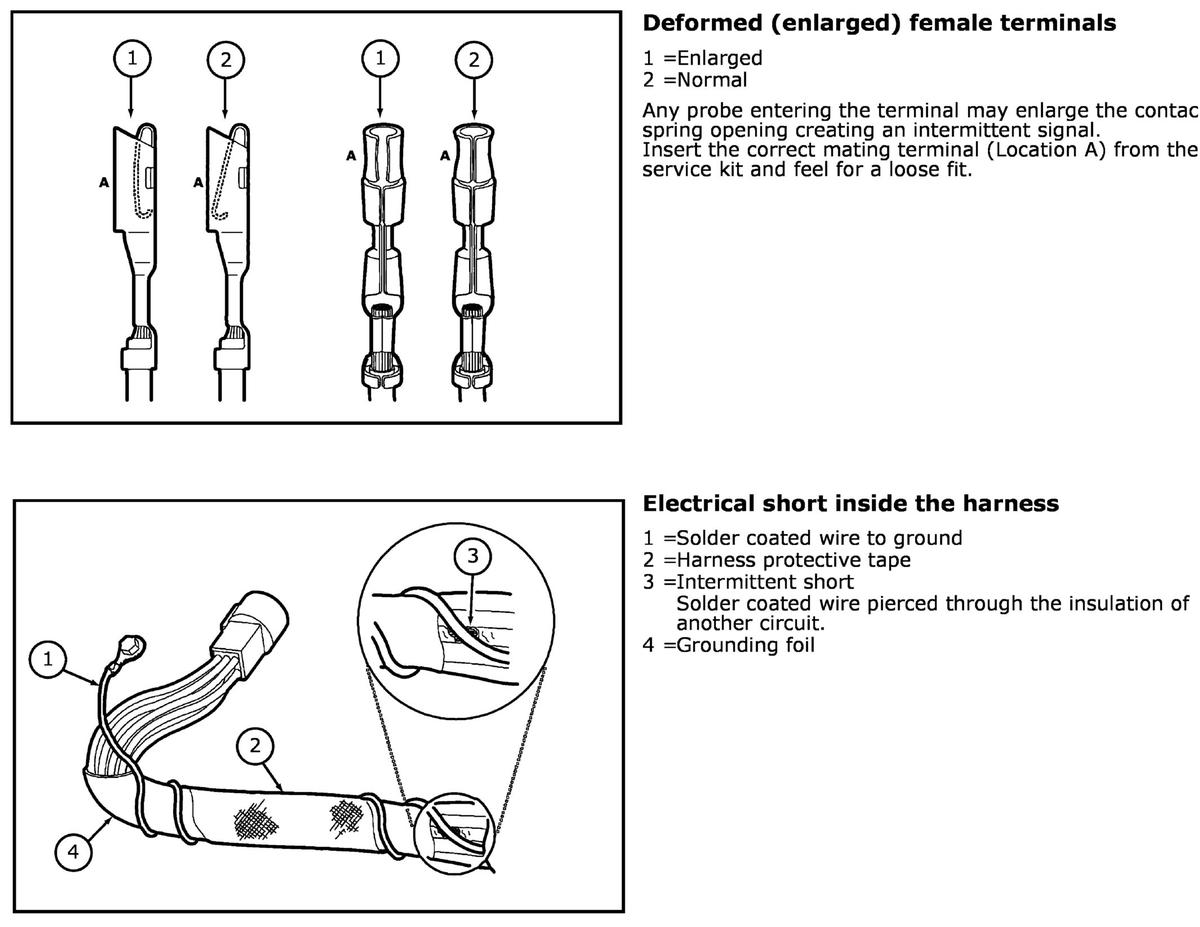

GFDW88775Courtesy of FORD MOTOR COMPANY

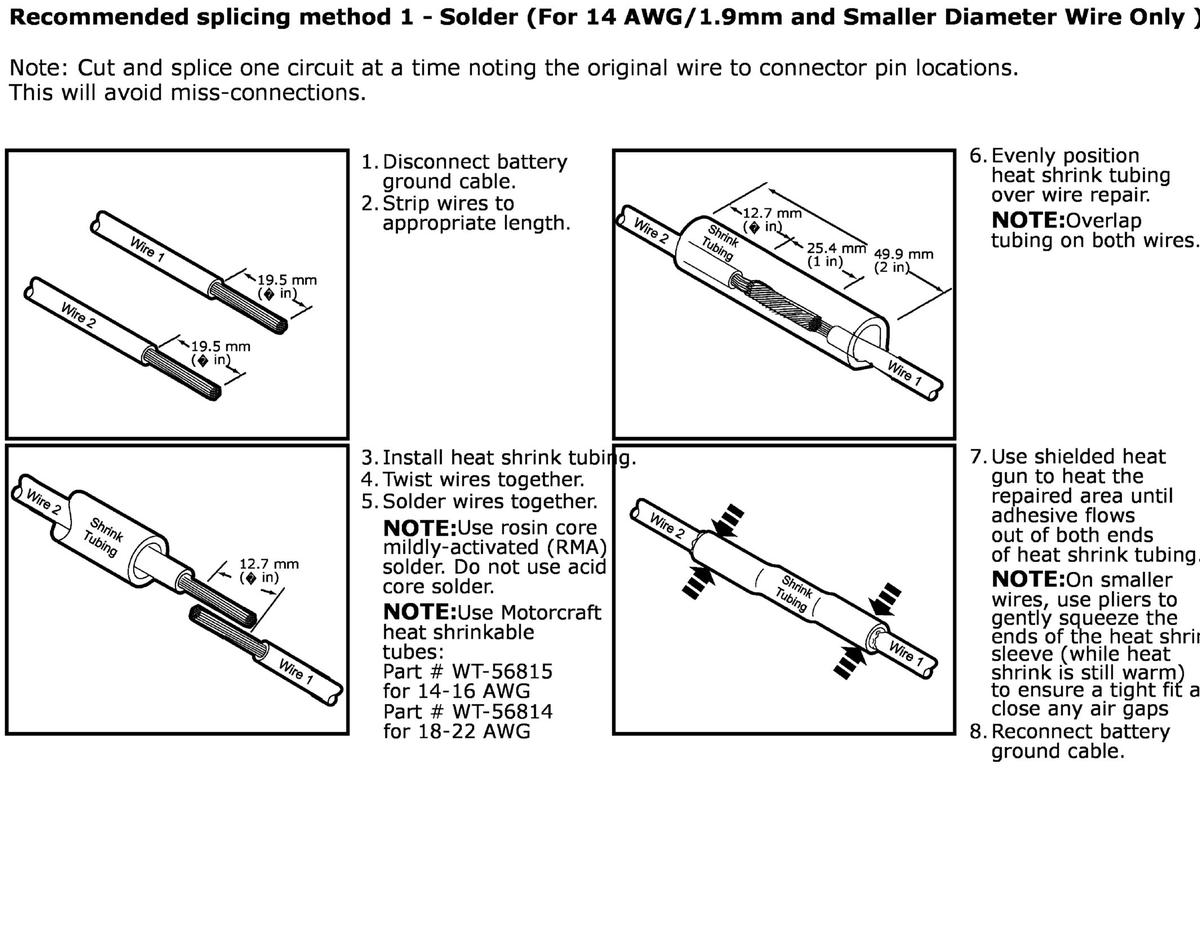

GFDW88776Courtesy of FORD MOTOR COMPANY

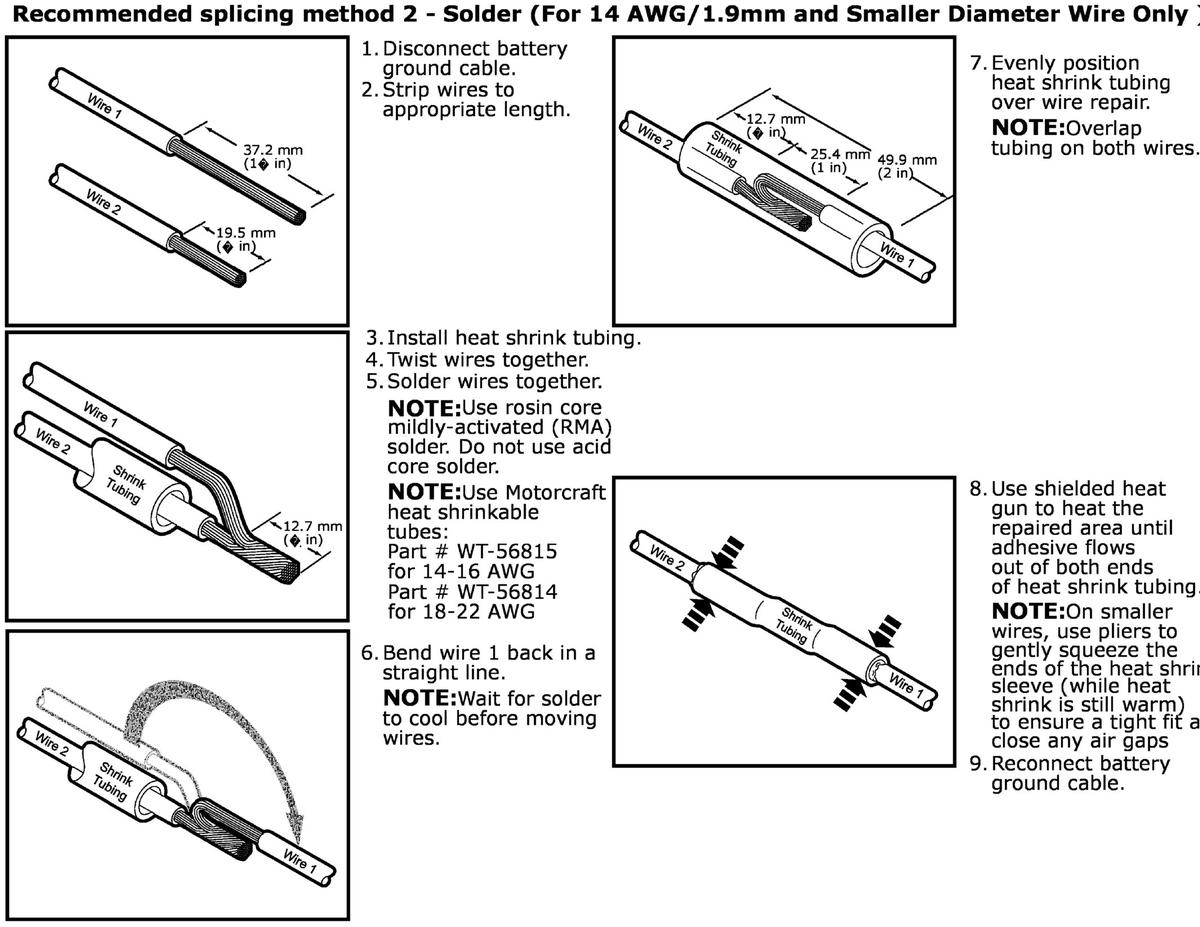

GFDW88777Courtesy of FORD MOTOR COMPANY

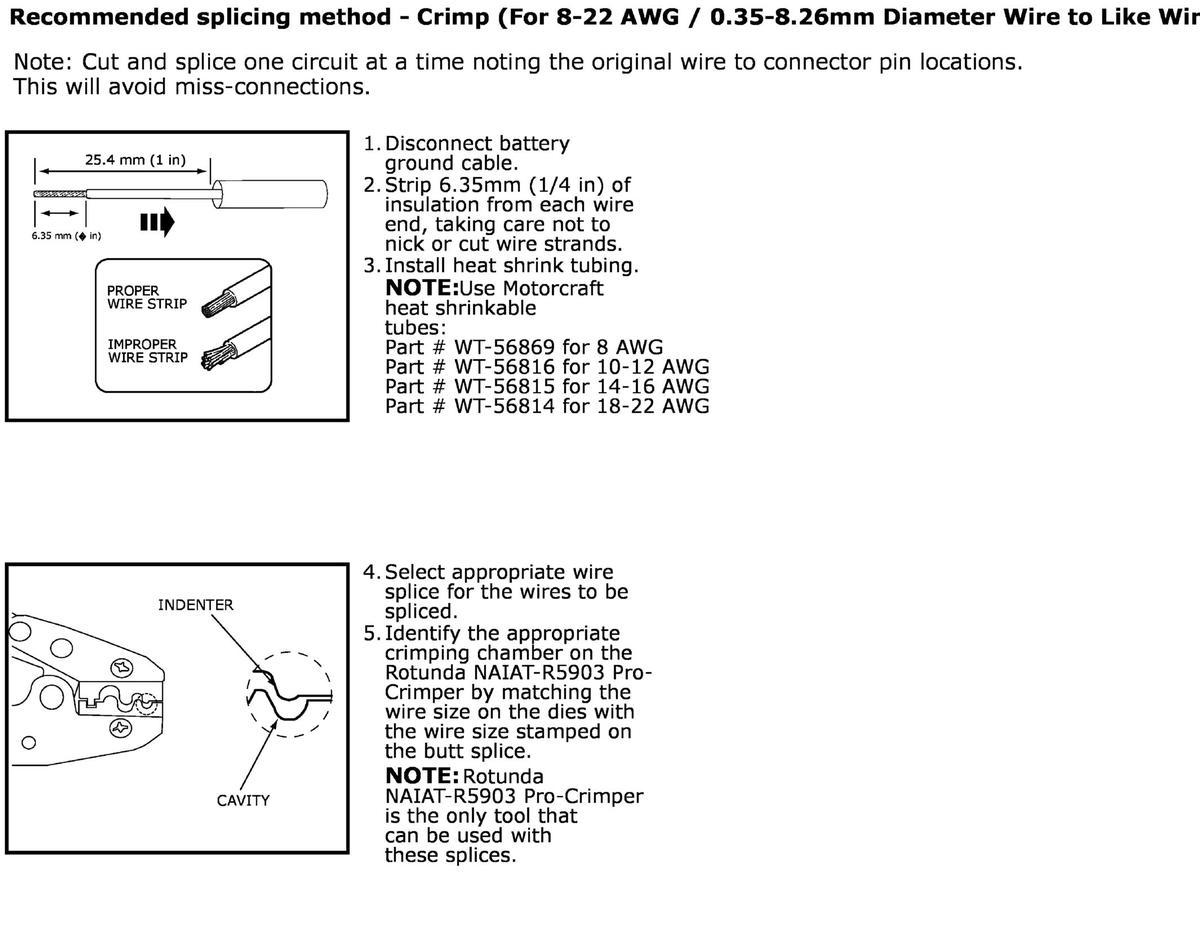

GFDW88778Courtesy of FORD MOTOR COMPANY

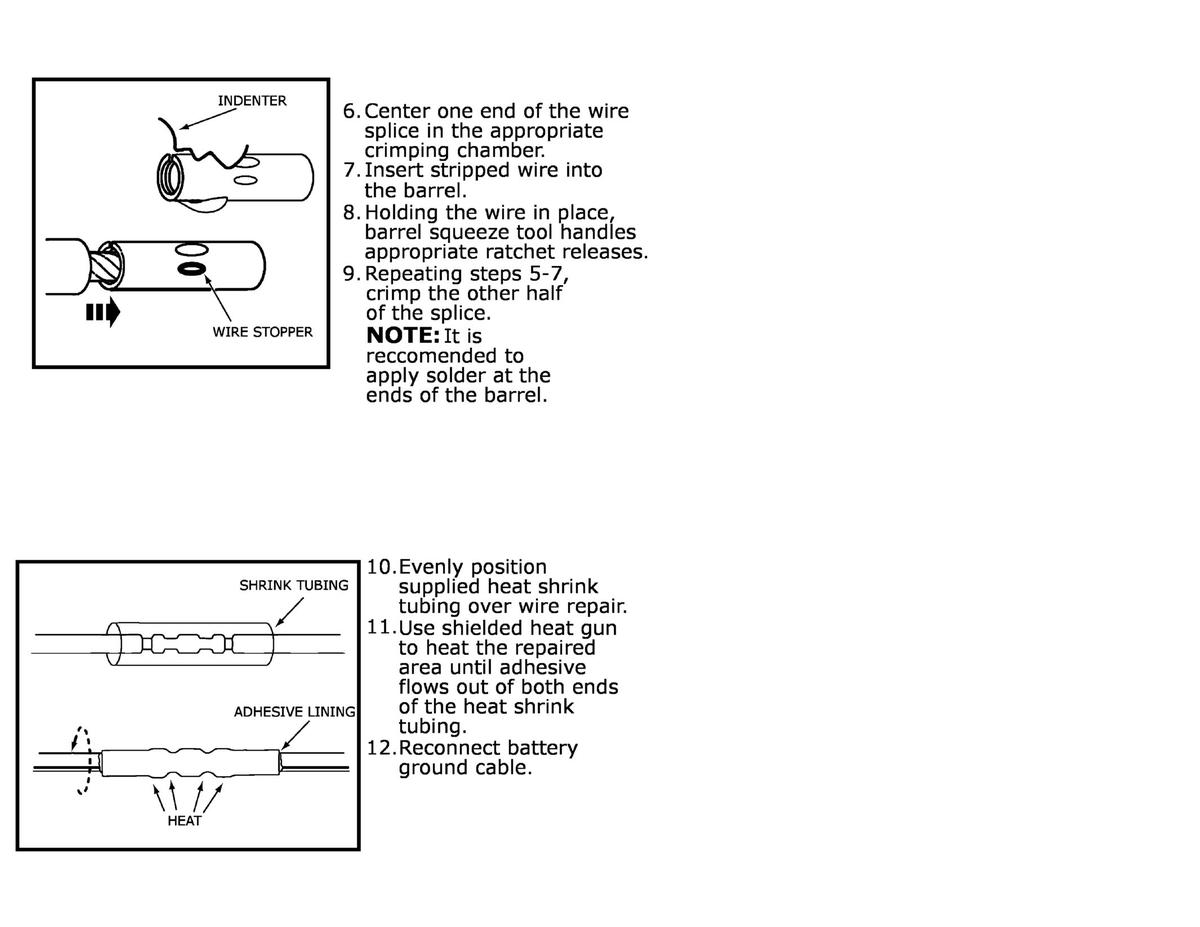

GFDW88779Courtesy of FORD MOTOR COMPANY

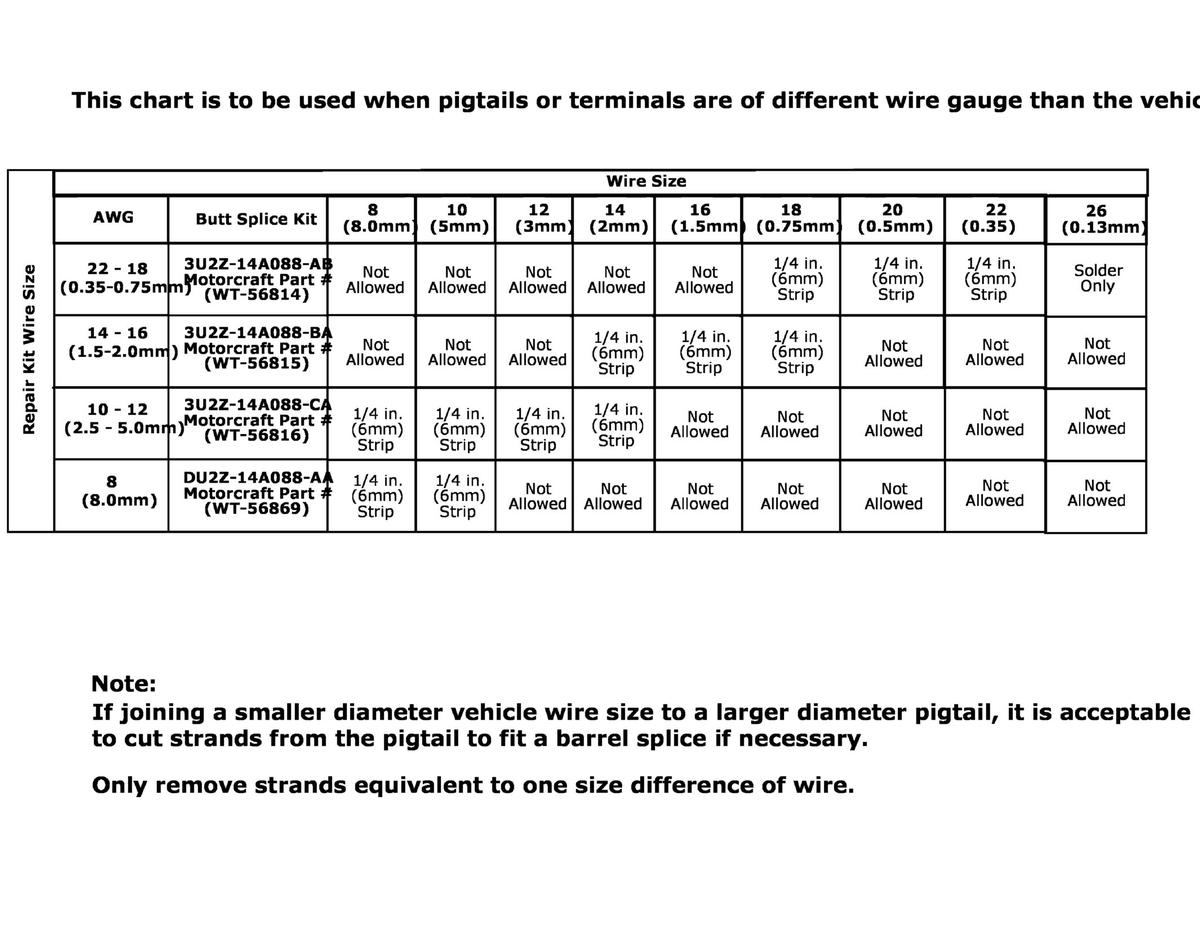

GFDW88780Courtesy of FORD MOTOR COMPANY
