Module Communications Network

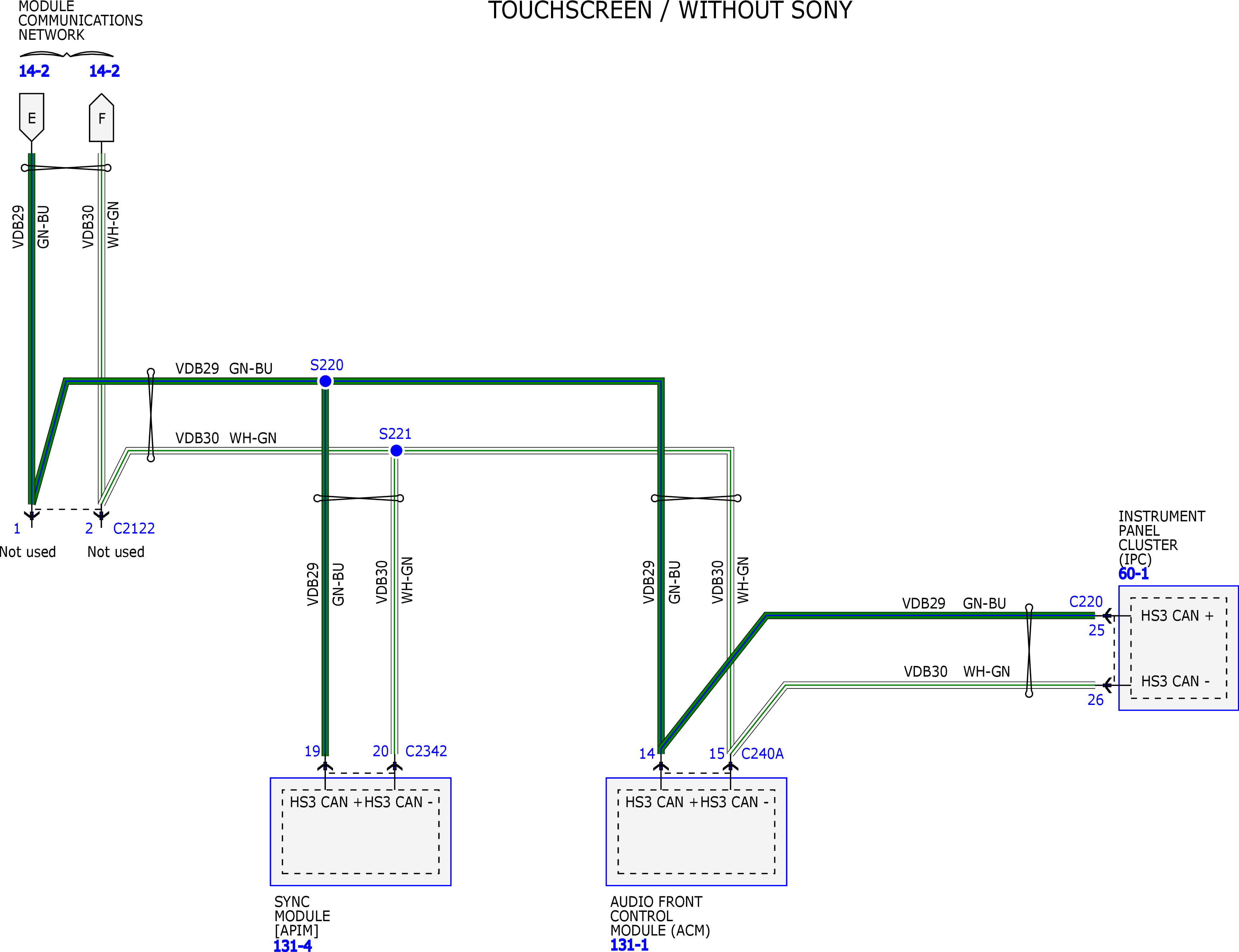

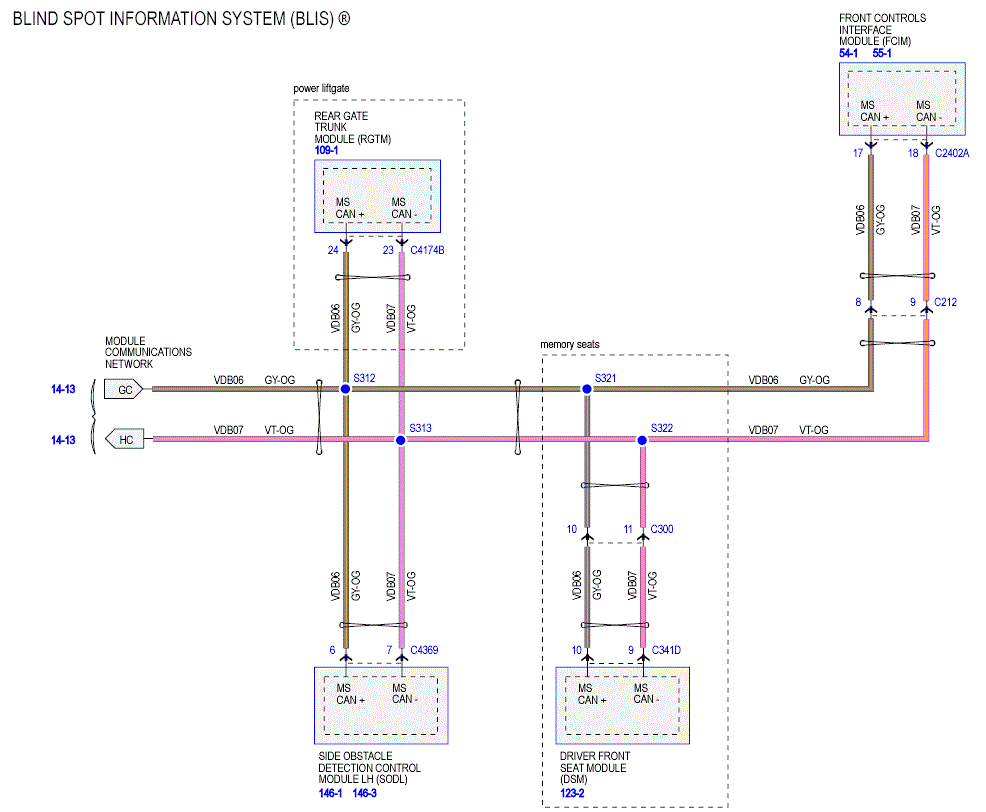

Fig 1: Module Communications Network Wiring Diagrams (1 Of 16)

Courtesy of FORD MOTOR COMPANY

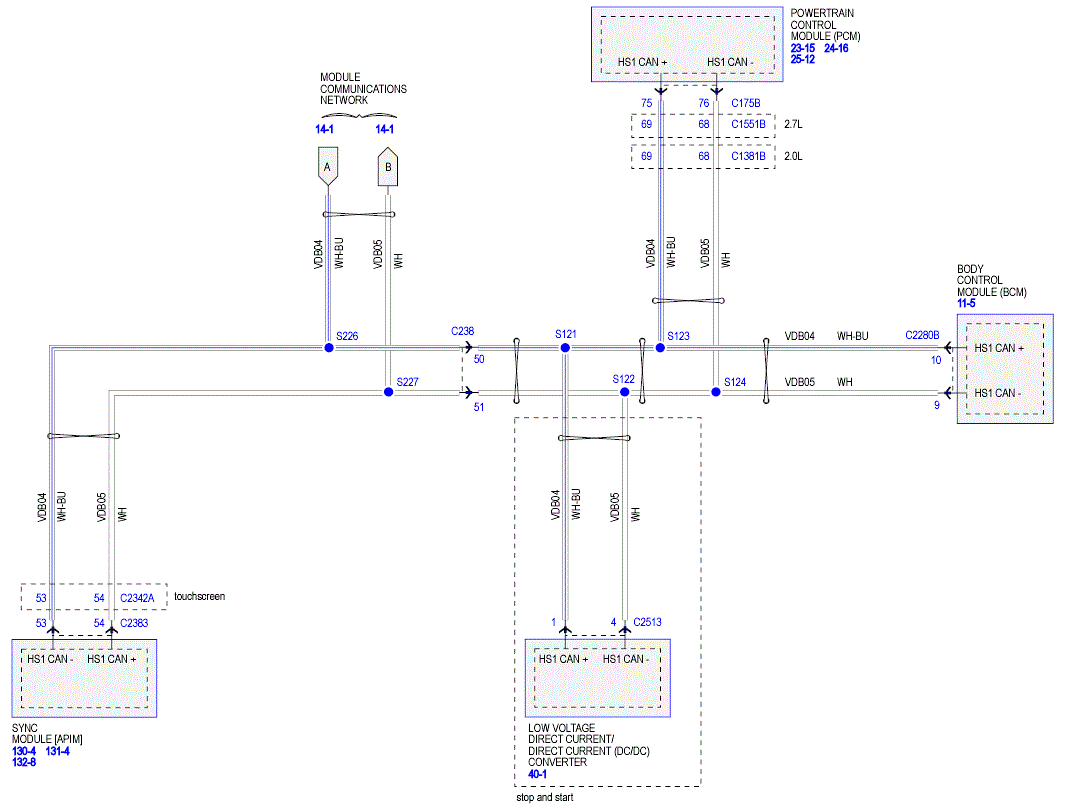

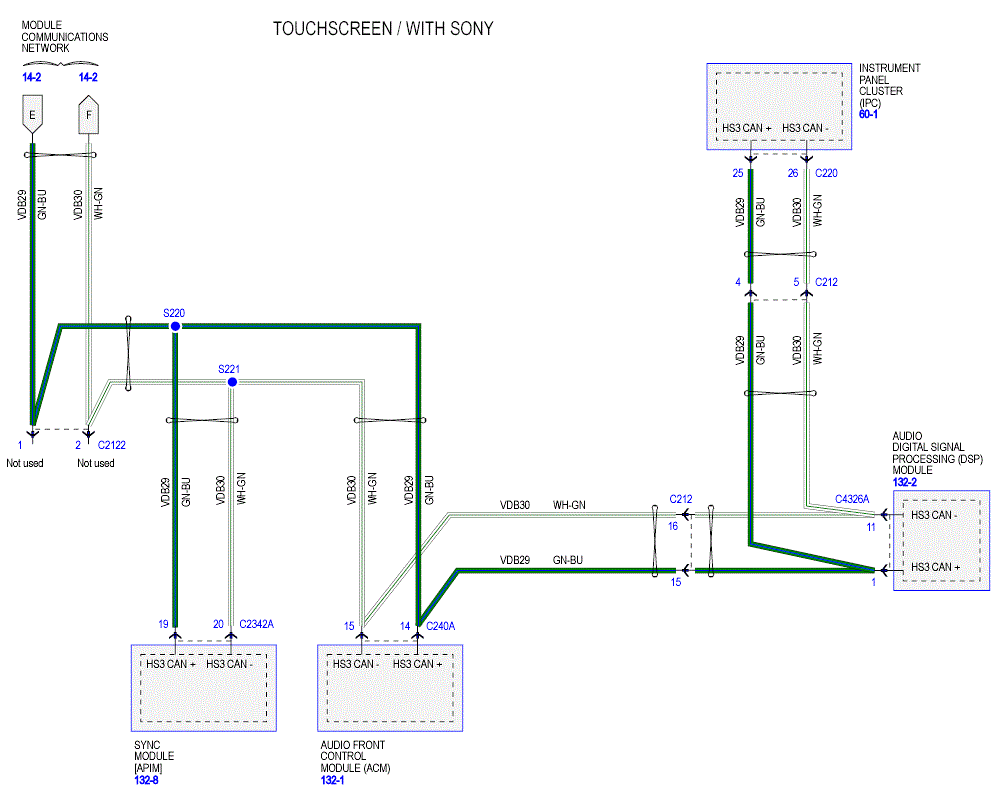

Fig 2: Module Communications Network Wiring Diagrams (2 Of 16)

Courtesy of FORD MOTOR COMPANY

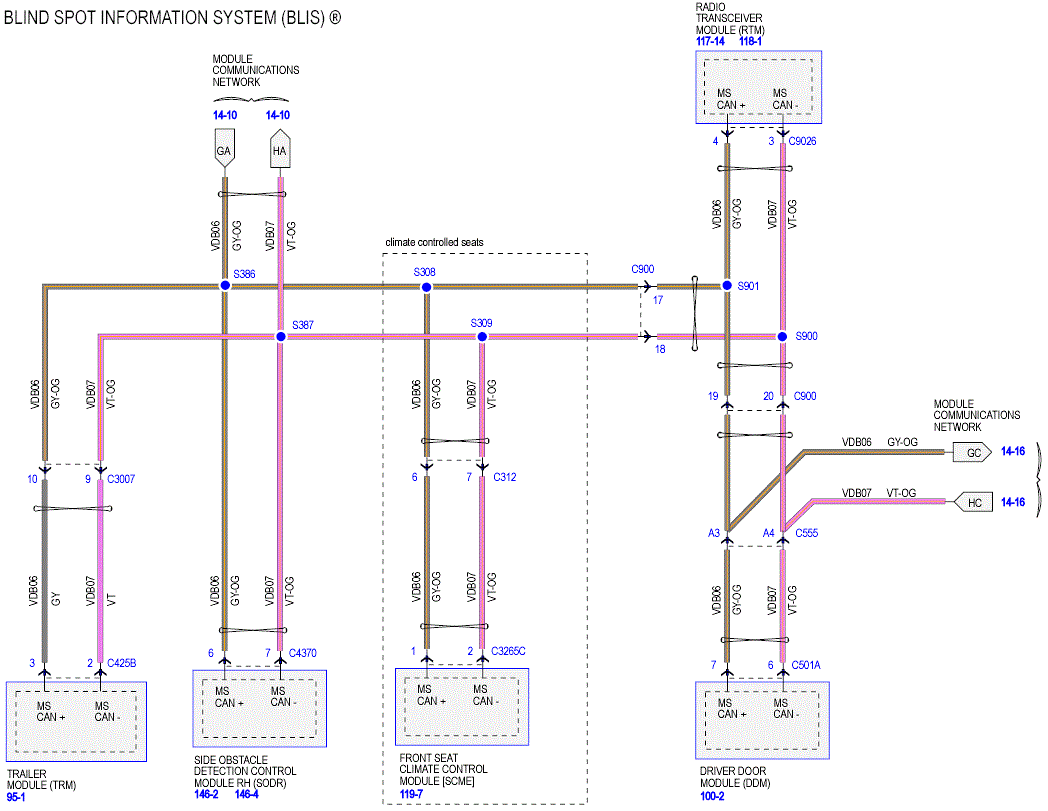

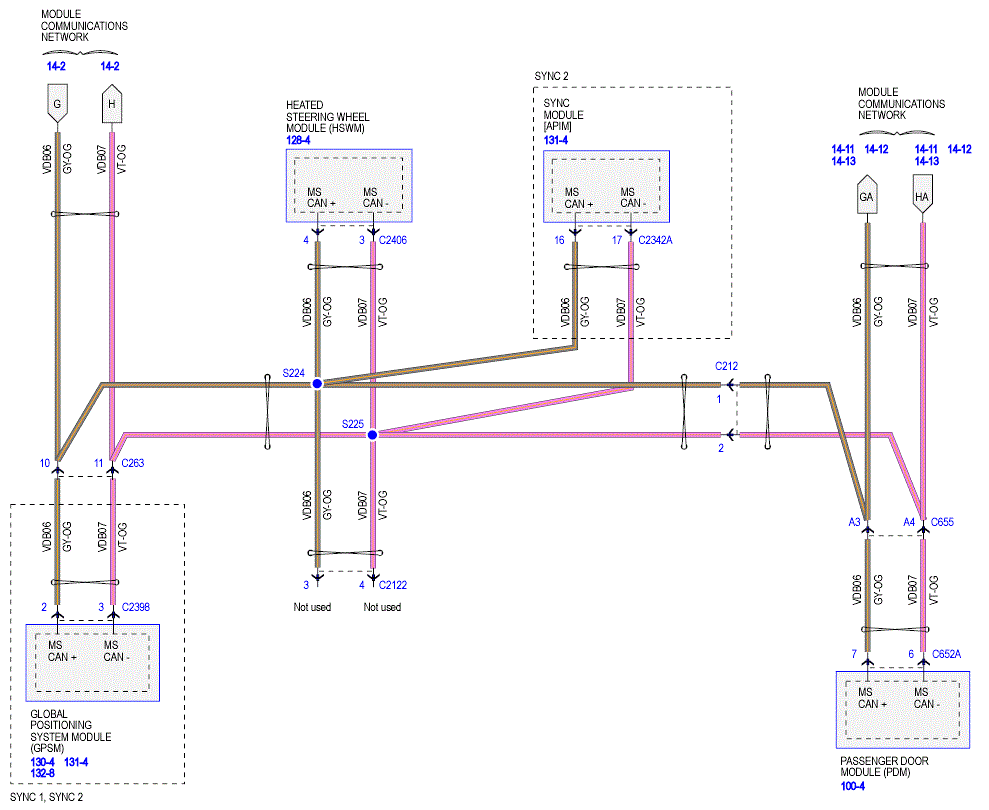

Fig 3: Module Communications Network Wiring Diagrams (3 Of 16)

Courtesy of FORD MOTOR CO.

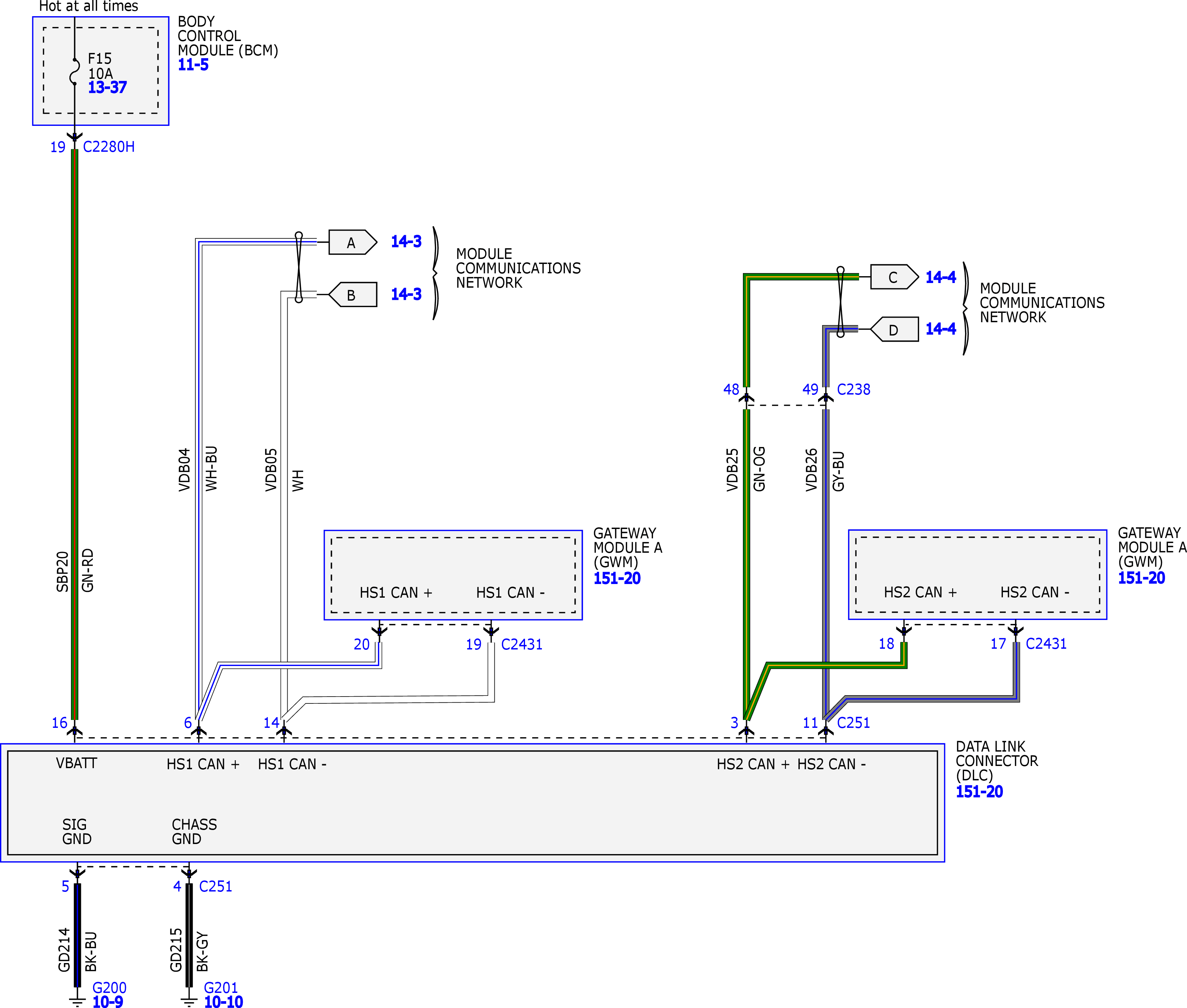

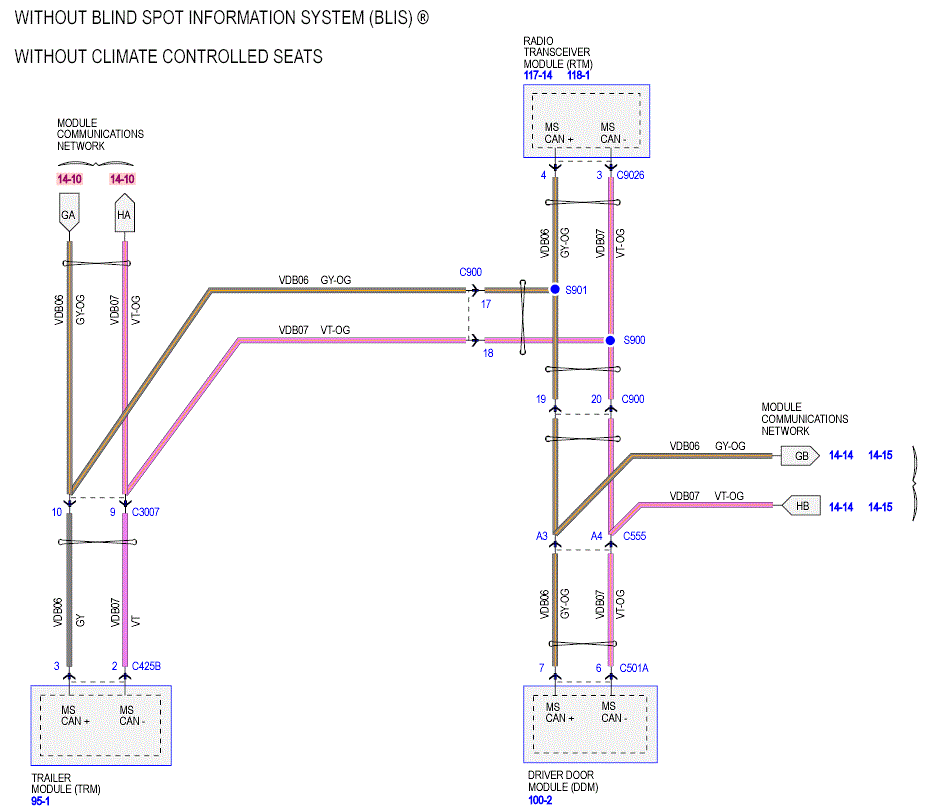

Fig 4: Module Communications Network Wiring Diagrams (4 Of 16)

Courtesy of FORD MOTOR CO.

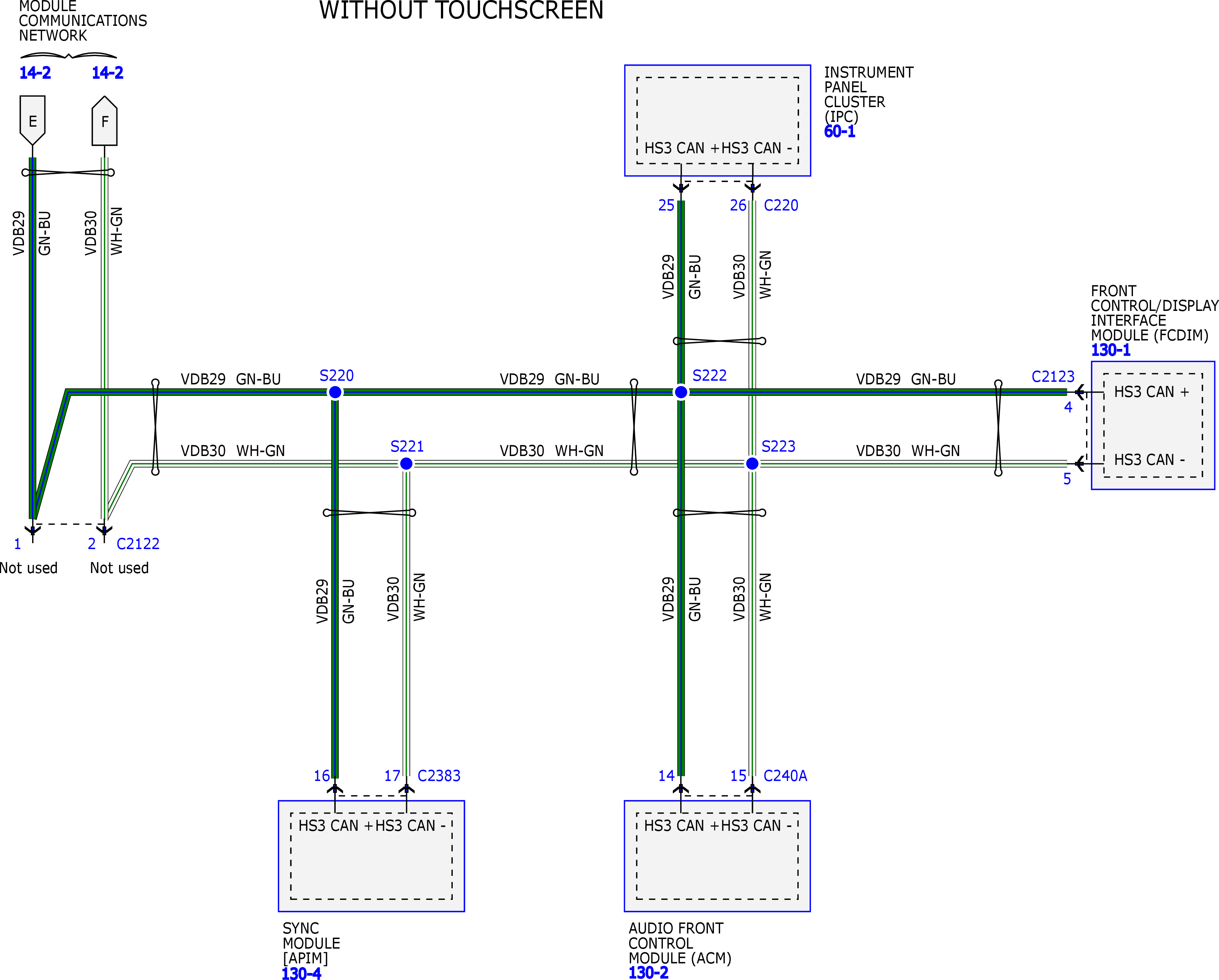

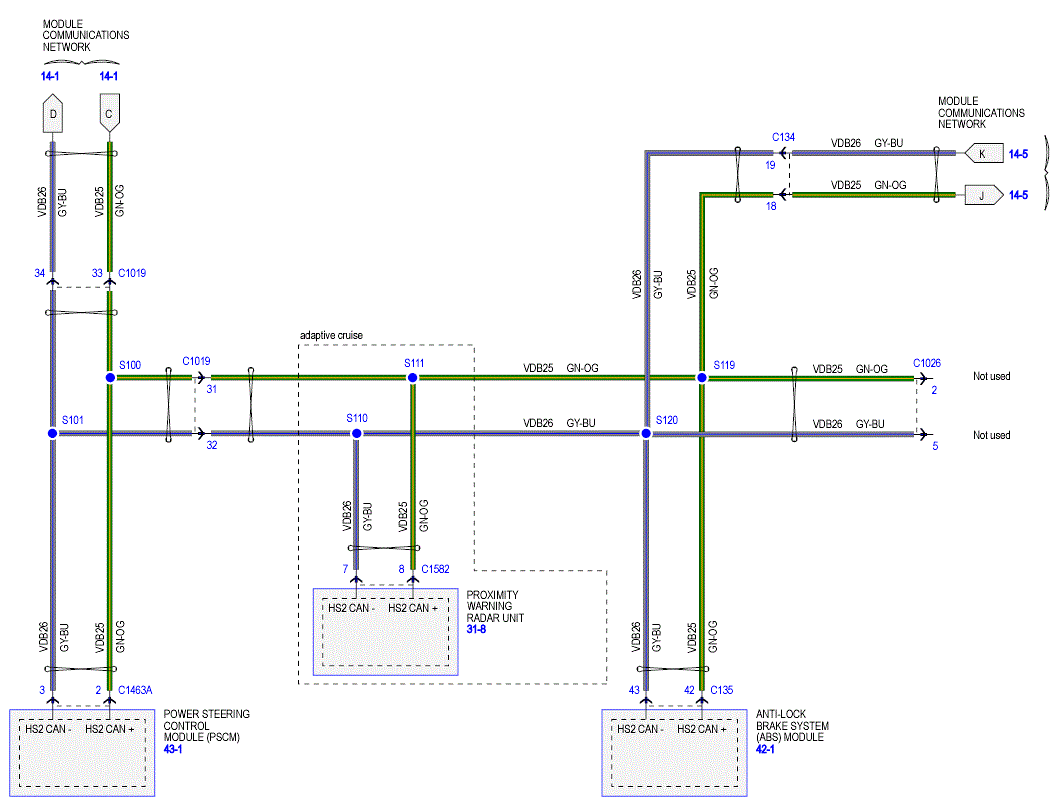

Fig 5: Module Communications Network Wiring Diagrams (5 Of 16)

Courtesy of FORD MOTOR COMPANY

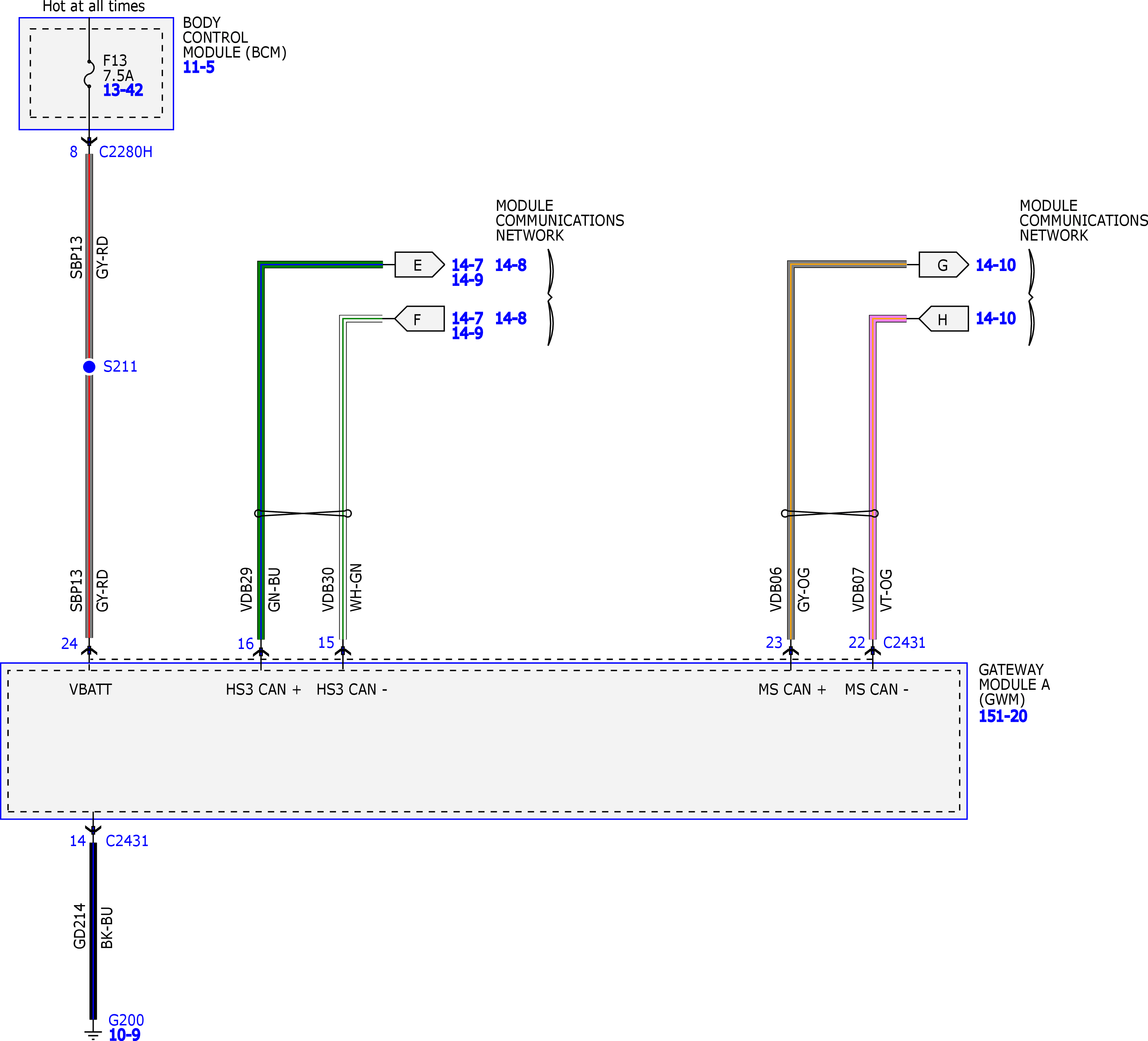

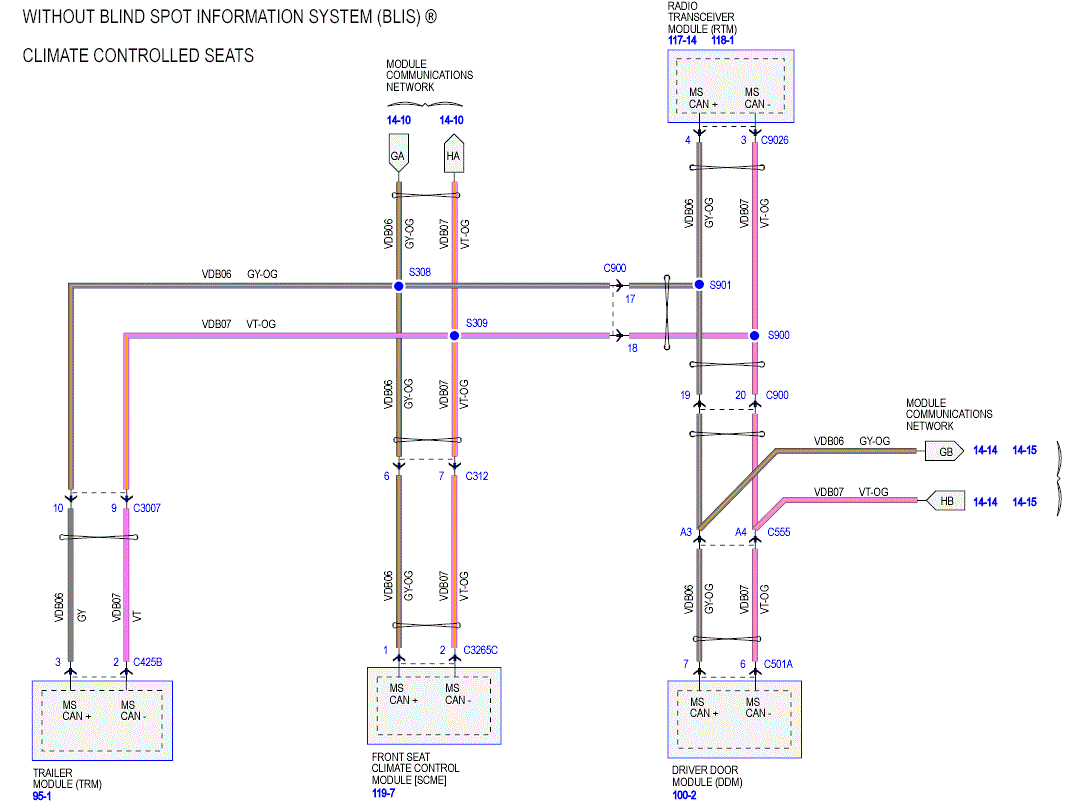

Fig 6: Module Communications Network Wiring Diagrams (6 Of 16)

Courtesy of FORD MOTOR COMPANY

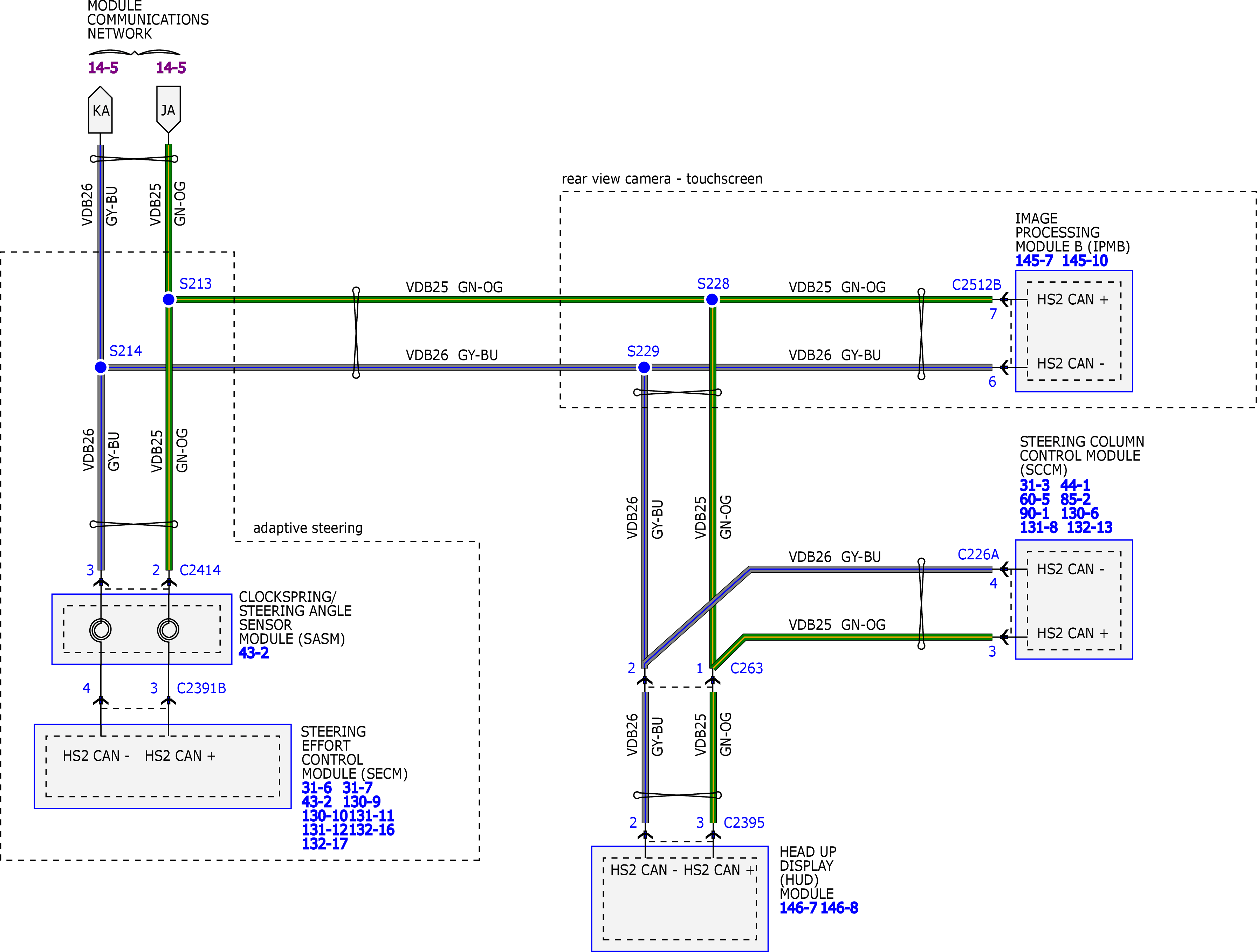

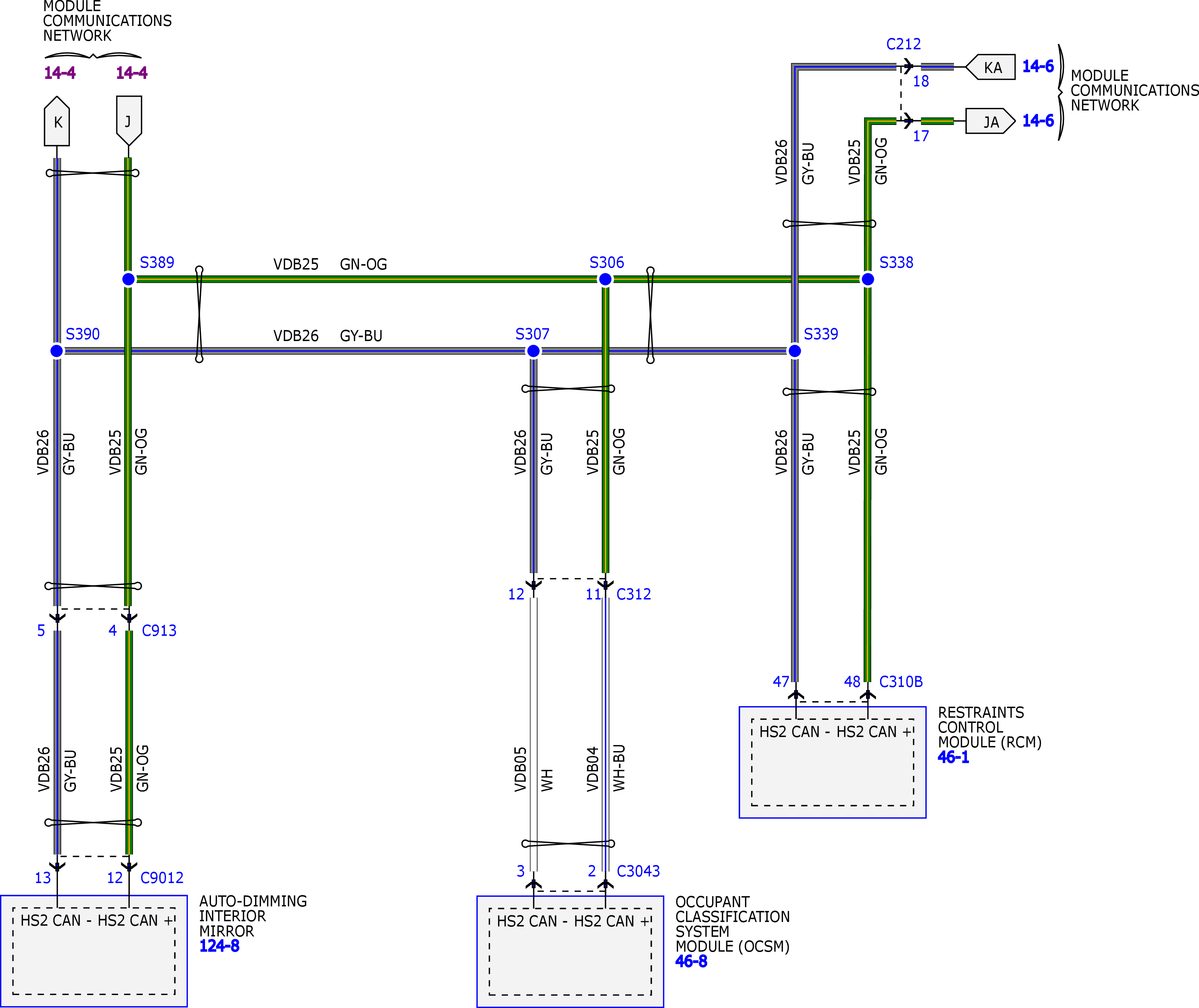

Fig 7: Module Communications Network Wiring Diagrams (7 Of 16)

Courtesy of FORD MOTOR COMPANY

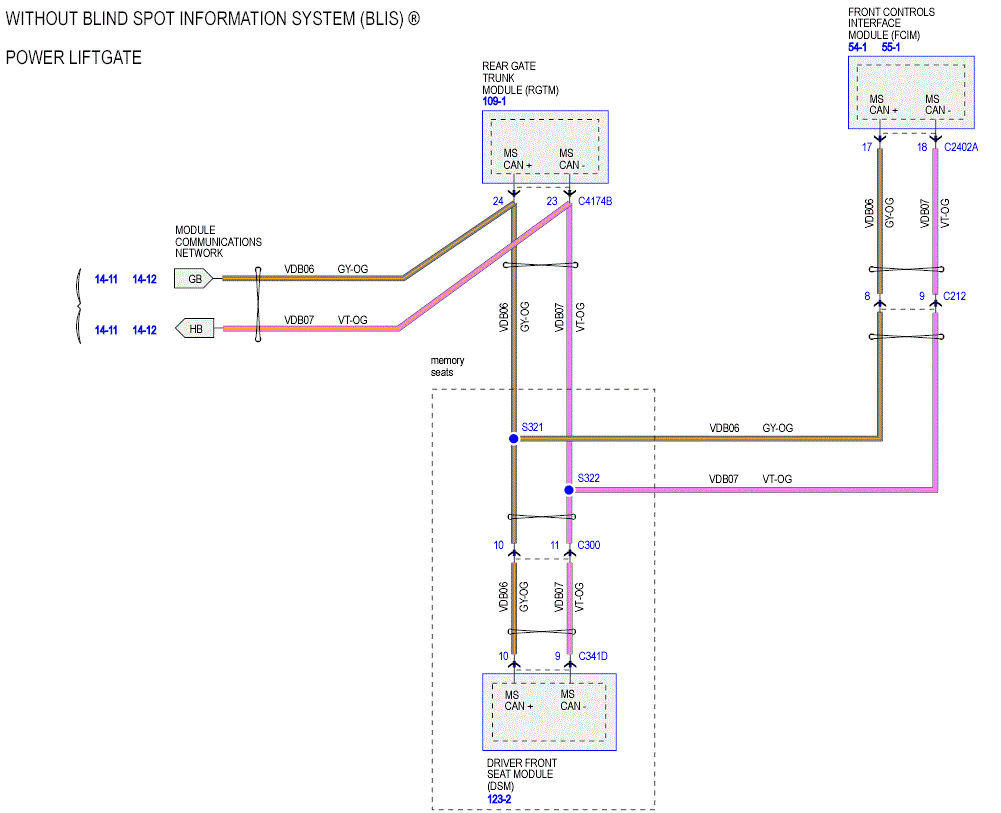

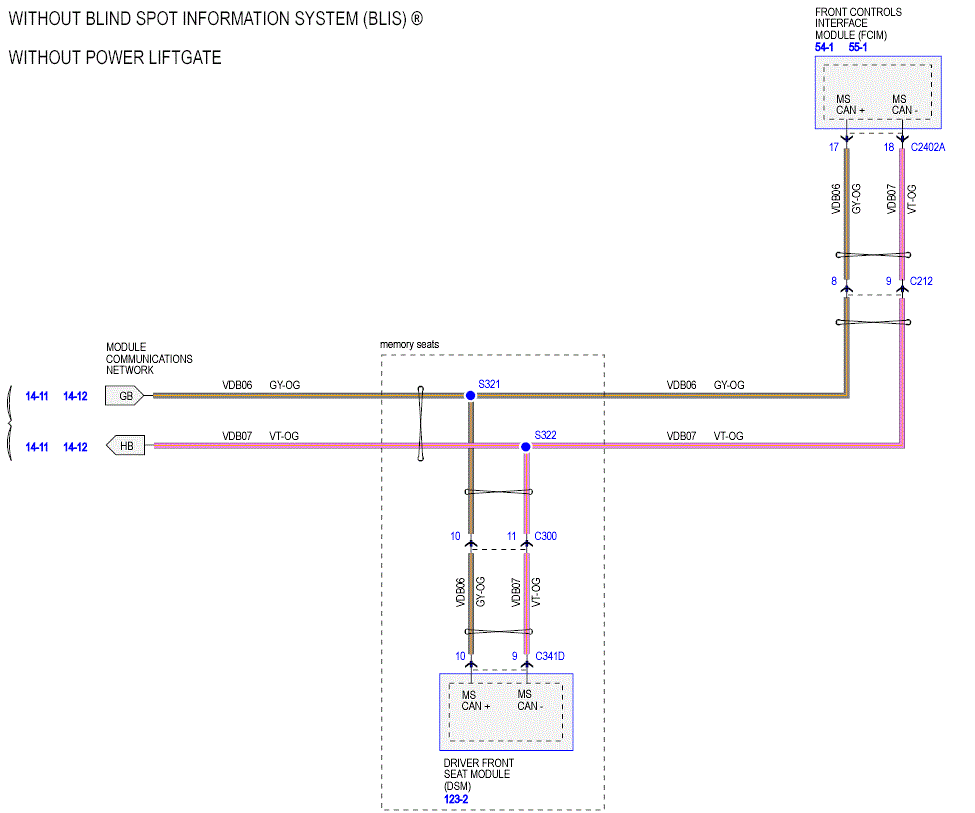

Fig 8: Module Communications Network Wiring Diagrams (8 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 9: Module Communications Network Wiring Diagrams (9 Of 16)

Courtesy of FORD MOTOR CO.

Fig 10: Module Communications Network Wiring Diagrams (10 Of 16)

Courtesy of FORD MOTOR CO.

Fig 11: Module Communications Network Wiring Diagrams (11 Of 16)

Courtesy of FORD MOTOR CO.

Fig 12: Module Communications Network Wiring Diagrams (12 Of 16)

Courtesy of FORD MOTOR CO.

Fig 13: Module Communications Network Wiring Diagrams (13 Of 16)

Courtesy of FORD MOTOR CO.

Fig 14: Module Communications Network Wiring Diagrams (14 Of 16)

Courtesy of FORD MOTOR CO.

Fig 15: Module Communications Network Wiring Diagrams (15 Of 16)

Courtesy of FORD MOTOR CO.

Fig 16: Module Communications Network Wiring Diagrams (16 Of 16)

Courtesy of FORD MOTOR CO.
