Fuel Pump Driver Module (FPDM): Installation
1.

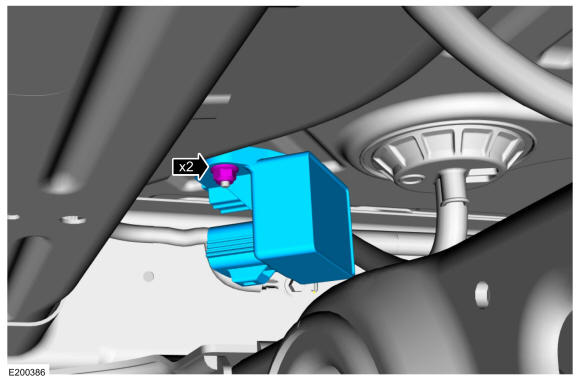

Install the FPDM, then install and tighten the FPDM nuts.
Torque: 13 lb.in (1.5 Nm)
Courtesy of FORD MOTOR COMPANY
2.

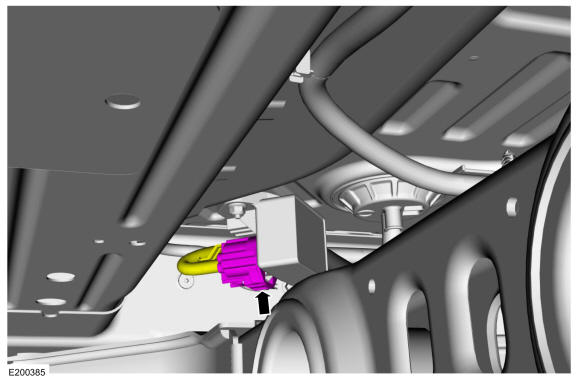

Connect the FPDM electrical connector.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
