Front Door Lock Switch RH

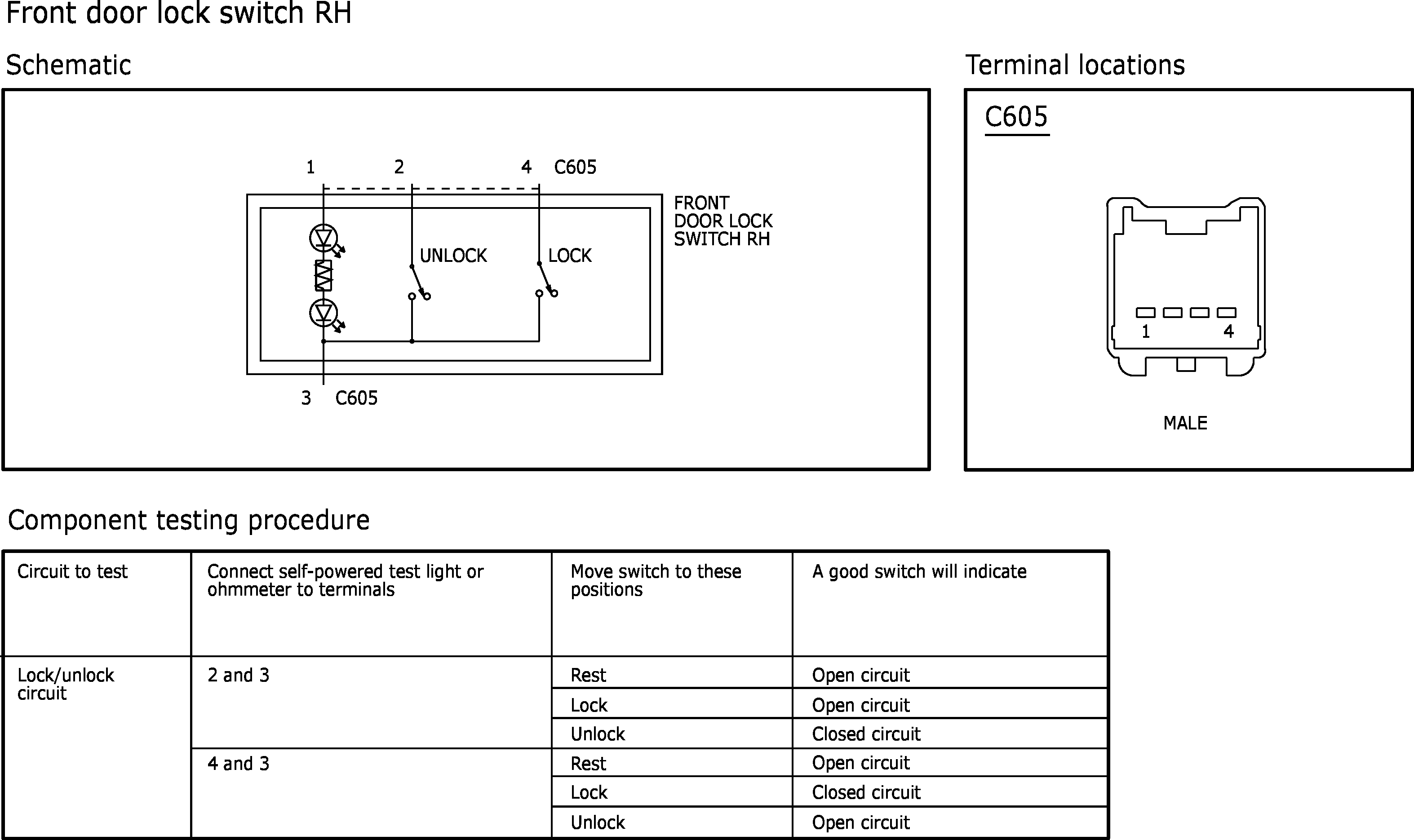

Fig 1: Front Door Lock Switch RH

GFDW5580

Courtesy of FORD MOTOR COMPANY
