Rear Door Window Control Switch

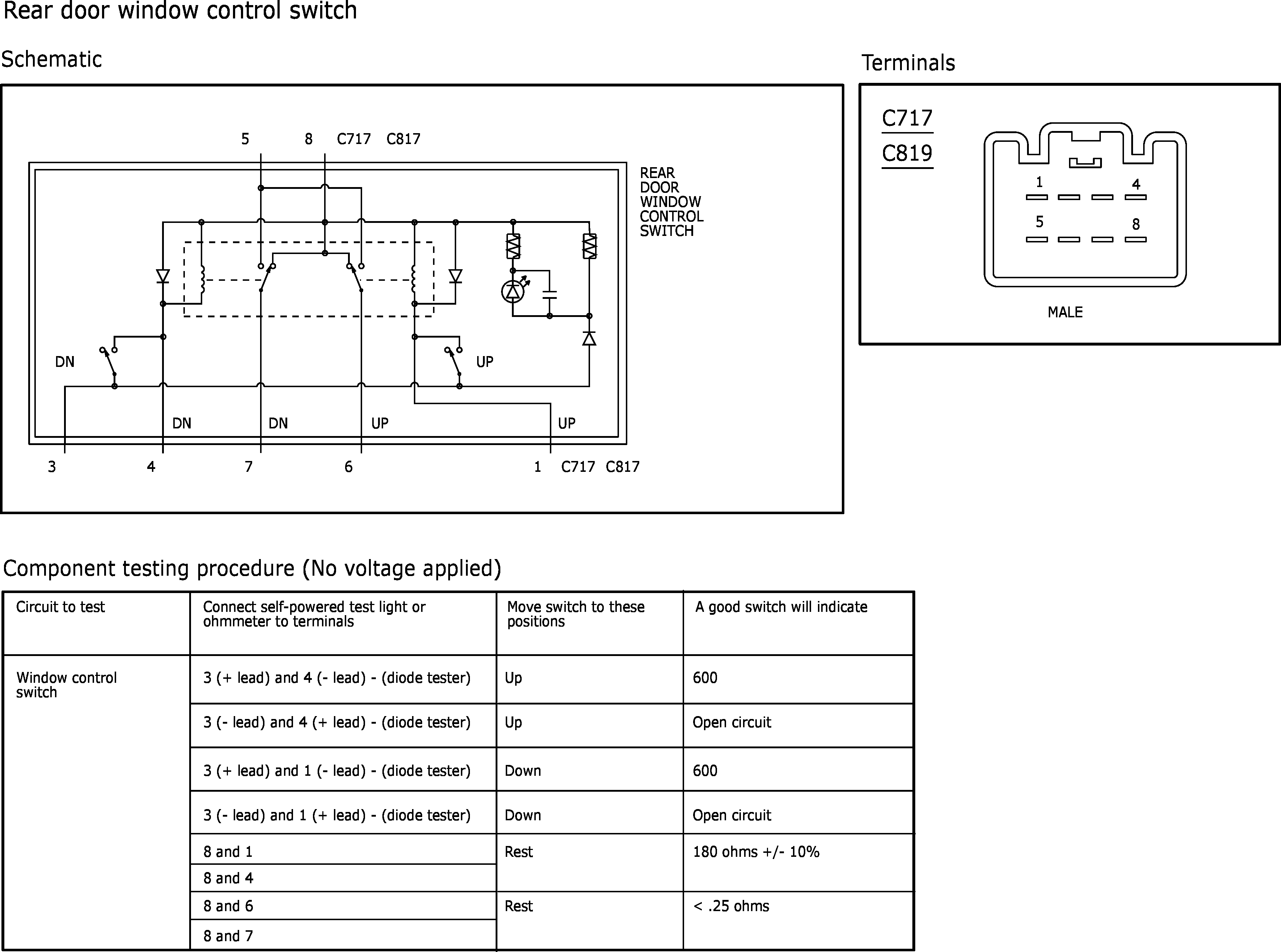

Fig 1: Rear Door Window Control Switch
Courtesy of FORD MOTOR COMPANY
