Front Seat Control Switch: Removal

NOTE: Driver seat control switch shown, passenger seat control switches similar.

1.

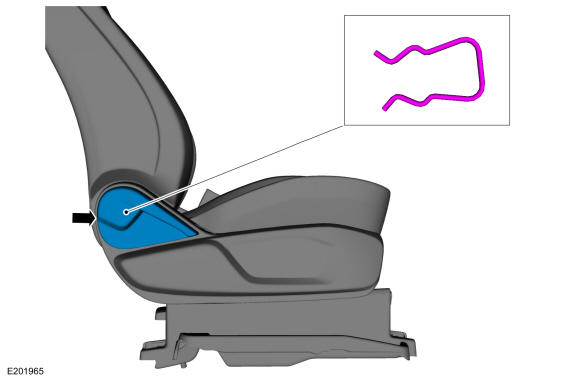

If equipped on passenger seat. Remove the clip and the recline handle.

GFD17854

Courtesy of FORD MOTOR COMPANY

2.

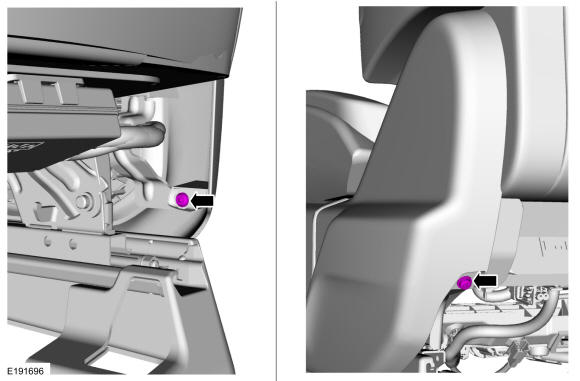

Remove the side shield screws.

GFD17844

Courtesy of FORD MOTOR COMPANY

3.

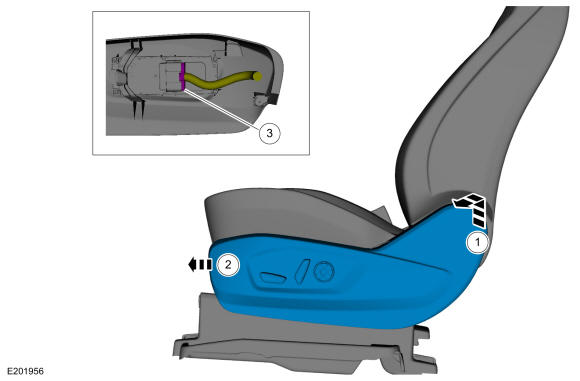

Remove the side shield.
1. 1.

  Lift up on the rear of the side shield and pull outward.
1. 2.

  Push the side shield forward.
1. 3.

  Disconnect the electrical connector.

GFD17855

Courtesy of FORD MOTOR COMPANY

4.

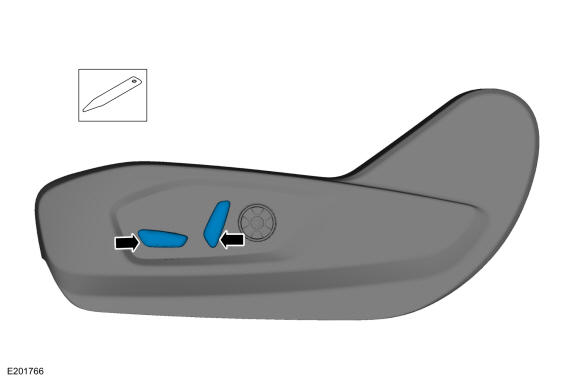

Remove the seat control switch knob(s).

GFD17856

Courtesy of FORD MOTOR COMPANY

5.

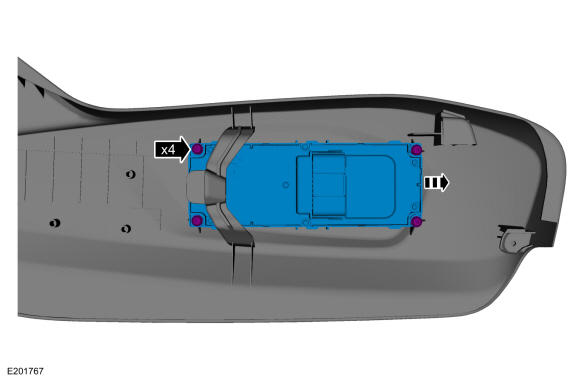

NOTE: 10-way seat control switch shown, 6-way seat control switch similar.

Remove the screws and the seat control switch.

GFD17857

Courtesy of FORD MOTOR COMPANY
