Front Seat Climate Control Module [SCME]: Removal

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

2.

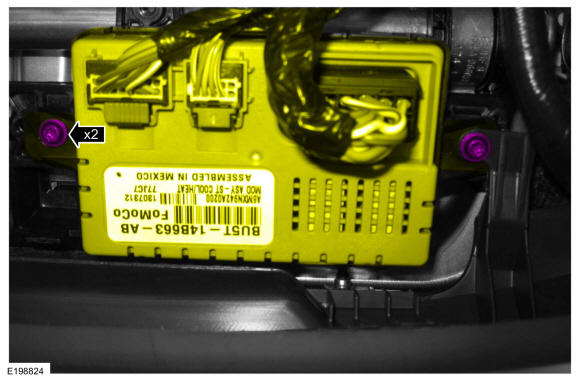

NOTE: The SCME outboard mounting tab is located under the front seat front shield.

Remove the screws and position the SCME aside.

GFD17852

Courtesy of FORD MOTOR COMPANY

3.

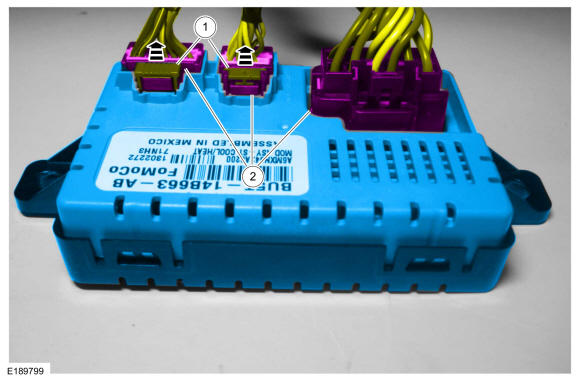

Remove the SCME.
1. 1.

  Release the locking wedges.
1. 2.

  Disconnect the electrical connectors.

GFD17853

Courtesy of FORD MOTOR COMPANY
