Piston Diameter
Check
NOTE:
Refer to the appropriate Engine article for the specification.

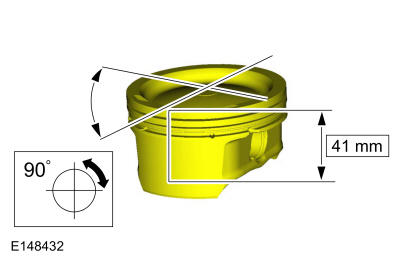

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
 Courtesy of FORD MOTOR COMPANY
|
