Electronic Engine Controls - Component Location

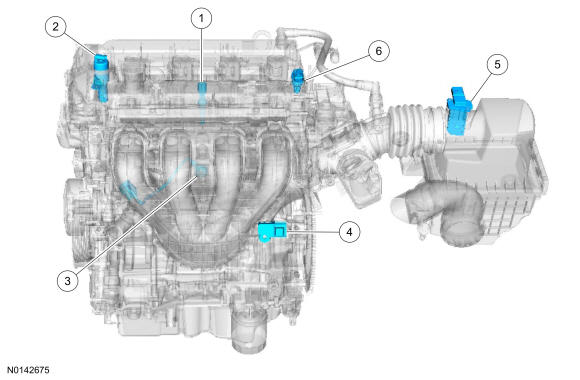

LH Engine Sensor Locations
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
CHT sensor |
| 2 |
VCT oil control solenoid |
| 3 |
KS |
| 4 |
MAP sensor |
| 5 |
MAF sensor |
| 6 |
CMP sensor |

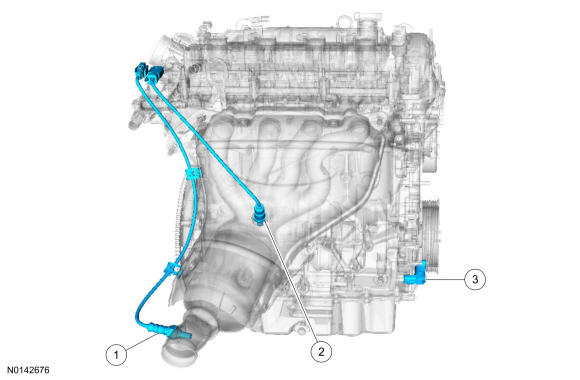

Electronic Engine Controls - RH
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Catalyst monitor sensor |
| 2 |
HO2S |
| 3 |
CKP sensor |

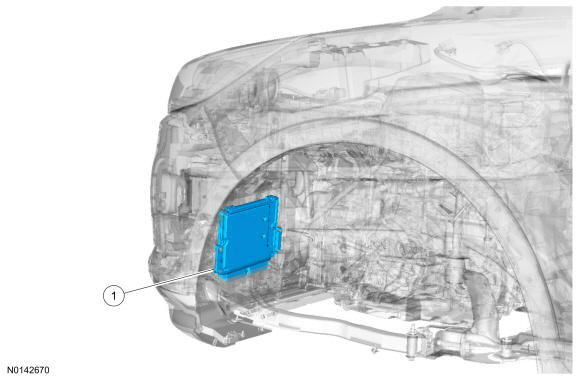

Powertrain Control Module (PCM)
 Courtesy of FORD MOTOR COMPANY
|
