Differential Fluid Level Check
WARNING: This page is about a different variant/trim than selected.
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL | WSP-M2C197-A |
Check
- Raise the vehicle. Refer to: Jacking and Lifting - Overview .

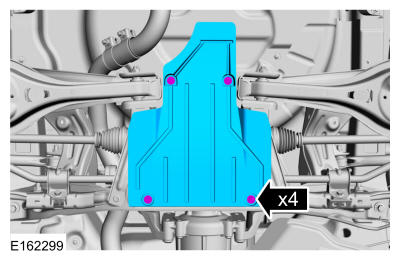

- Remove the retainers and the air deflector.

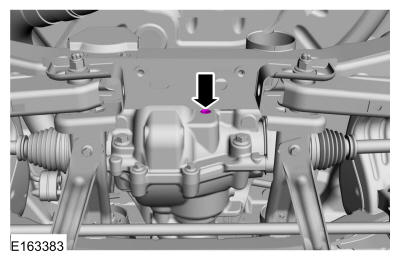

- Remove the filler plug.

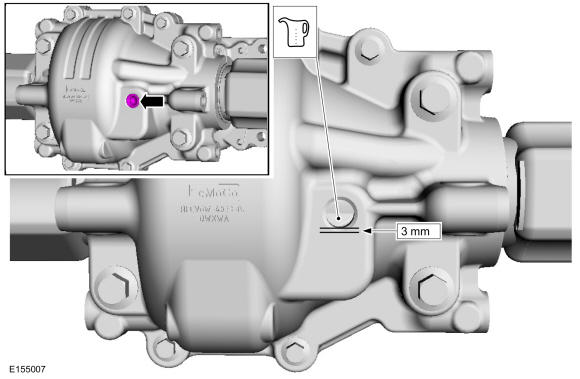

- If empty, fill the rear axle with 0.54L (1.15pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
Material: Motorcraft ® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
Torque:
Stage 1: 177 lb.in (20 Nm)
Stage 2: 180 °
- Install the air deflector and retainers.
- Lower the vehicle. Refer to: Jacking and Lifting - Overview .
