Connector Repair Procedures

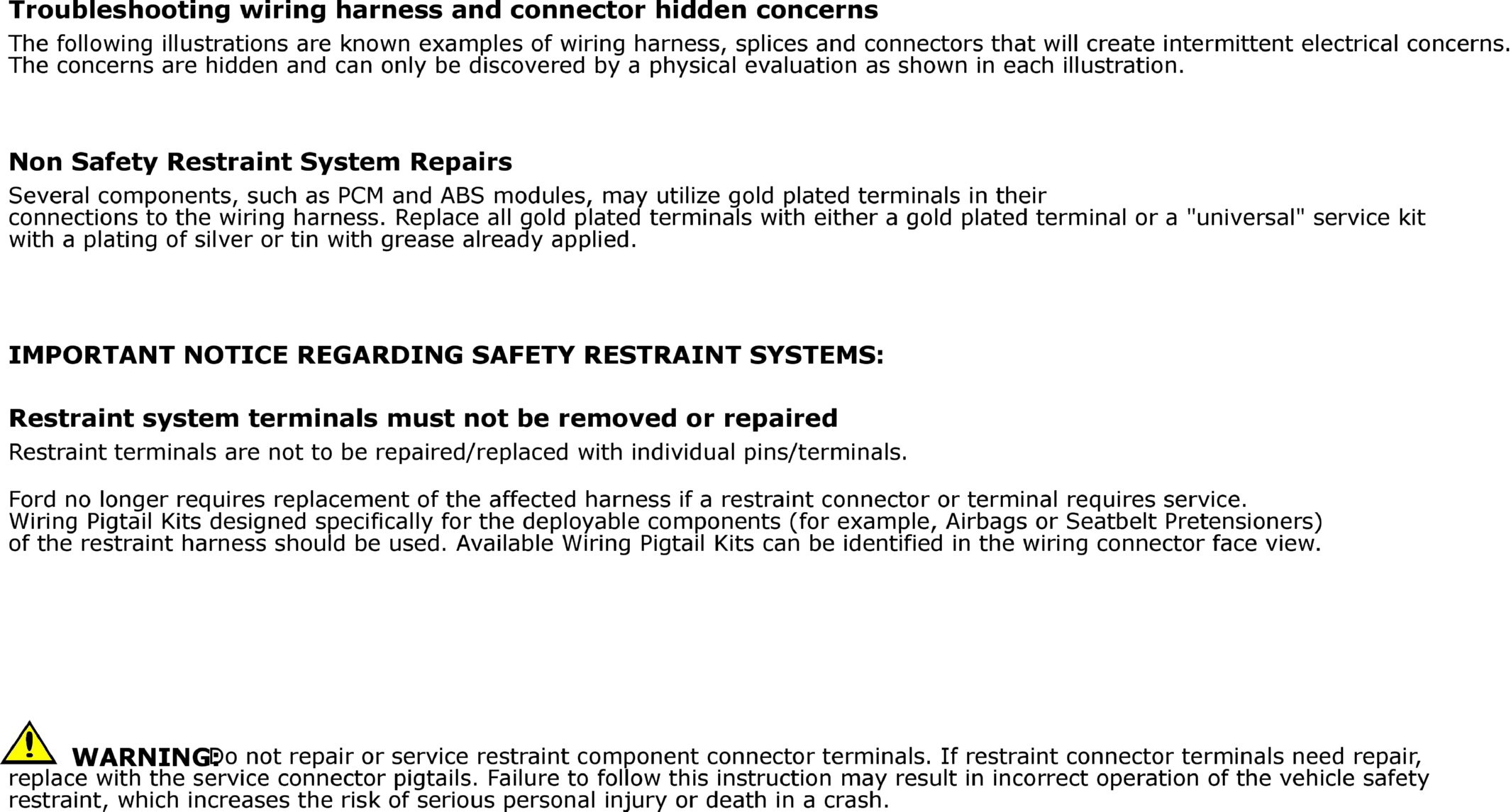

GFDW76368Courtesy of FORD MOTOR COMPANY

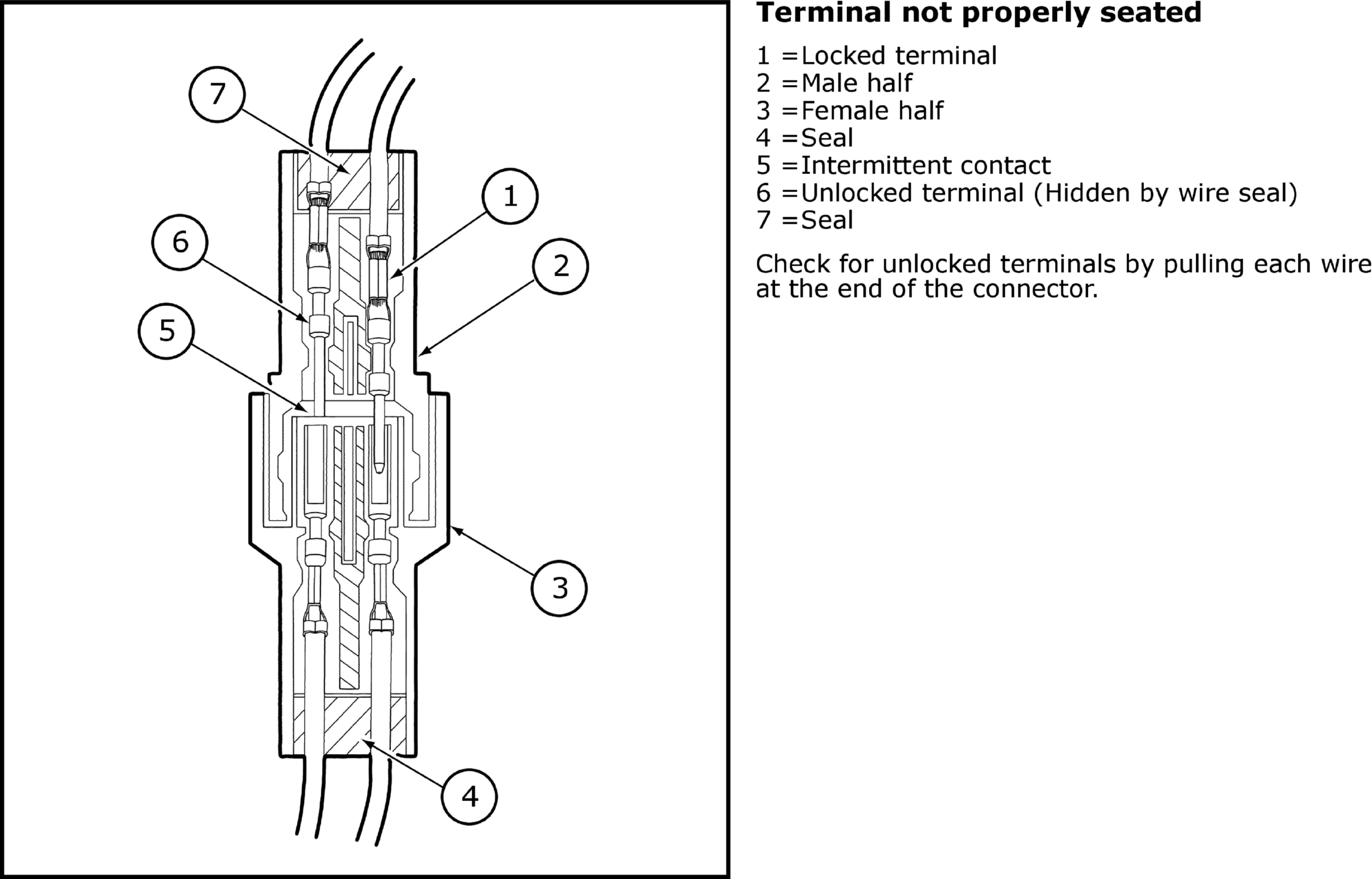

GFDW76369Courtesy of FORD MOTOR COMPANY

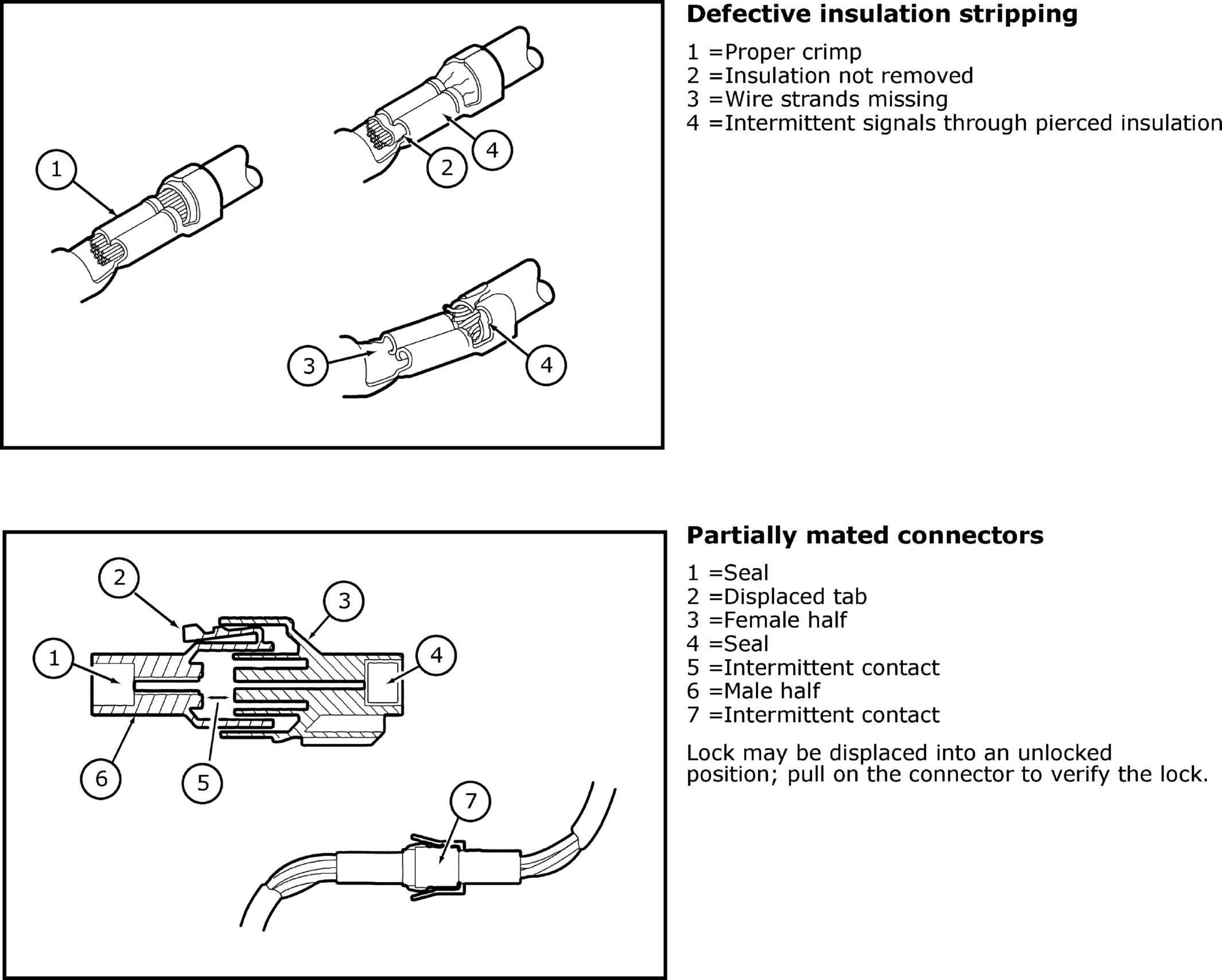

GFDW76370Courtesy of FORD MOTOR COMPANY

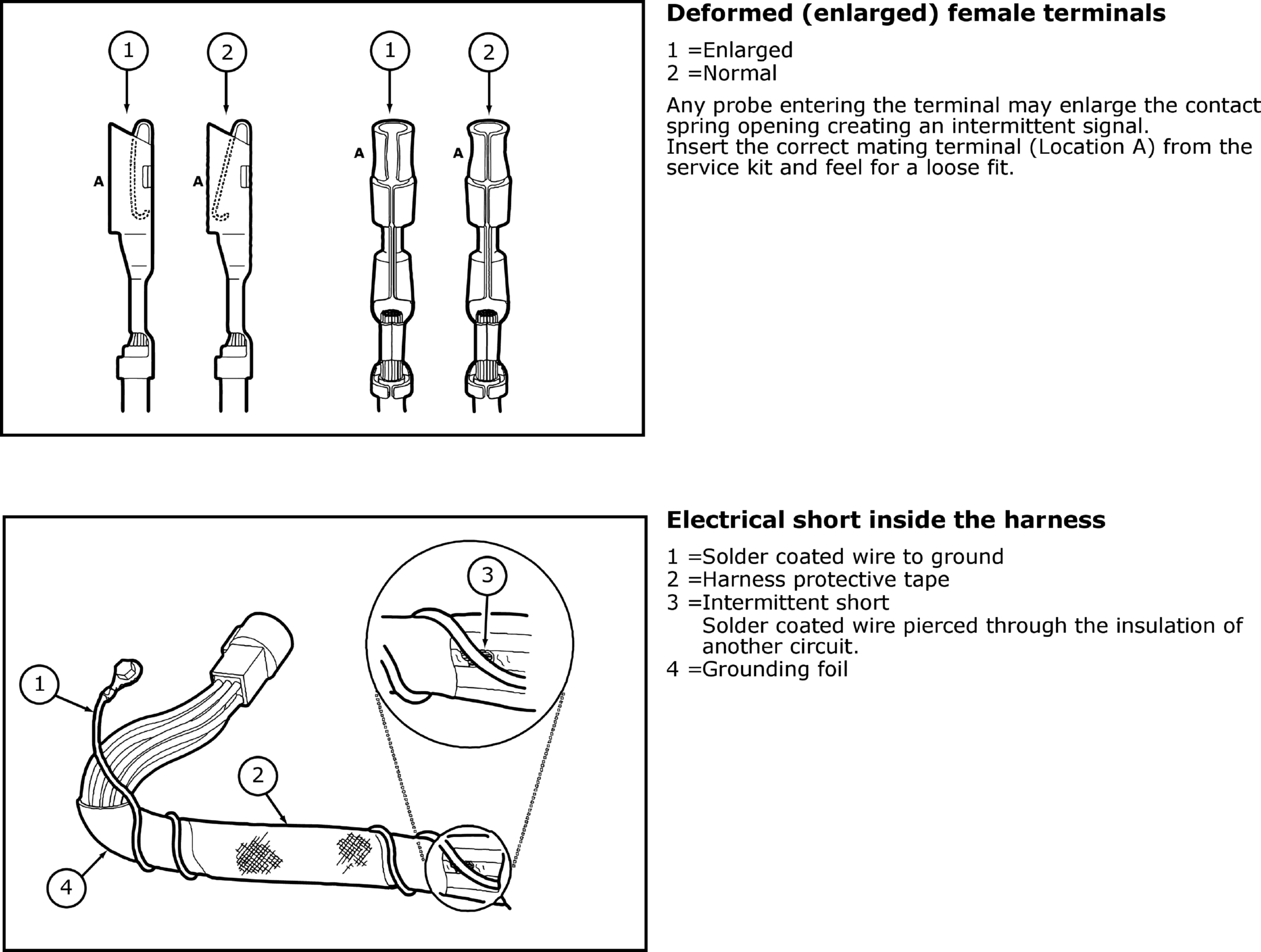

GFDW76371Courtesy of FORD MOTOR COMPANY

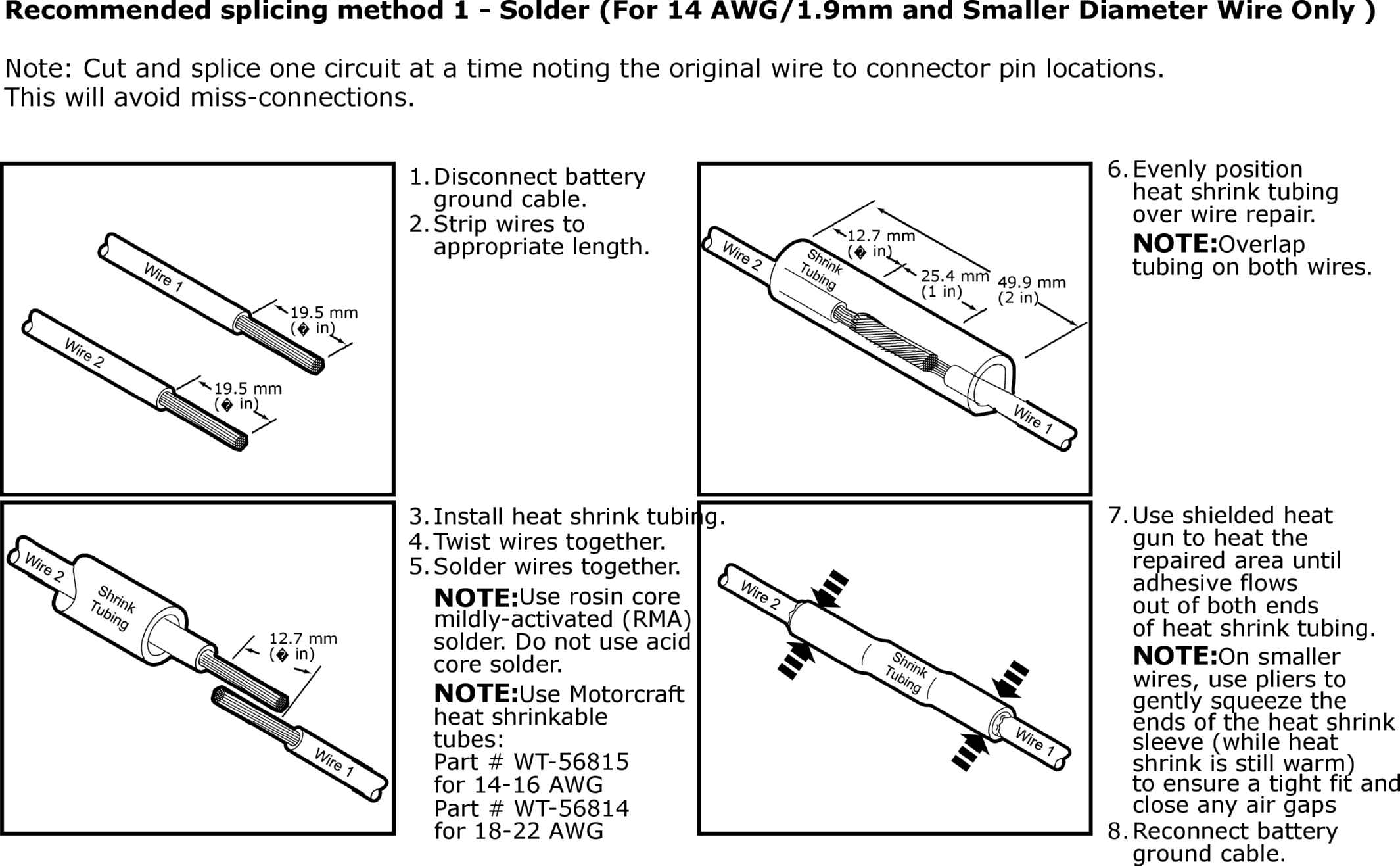

GFDW76372Courtesy of FORD MOTOR COMPANY

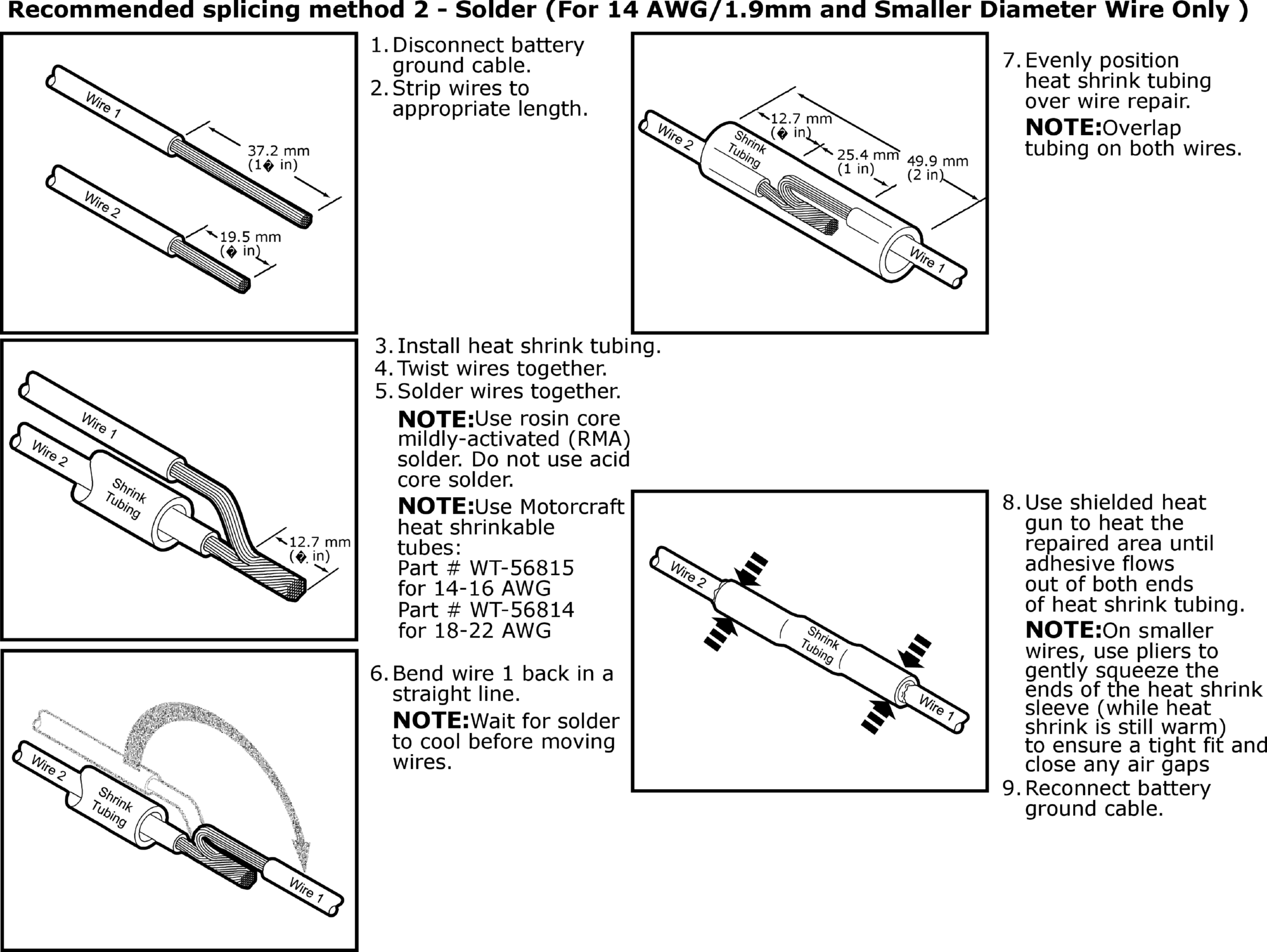

GFDW76373Courtesy of FORD MOTOR COMPANY

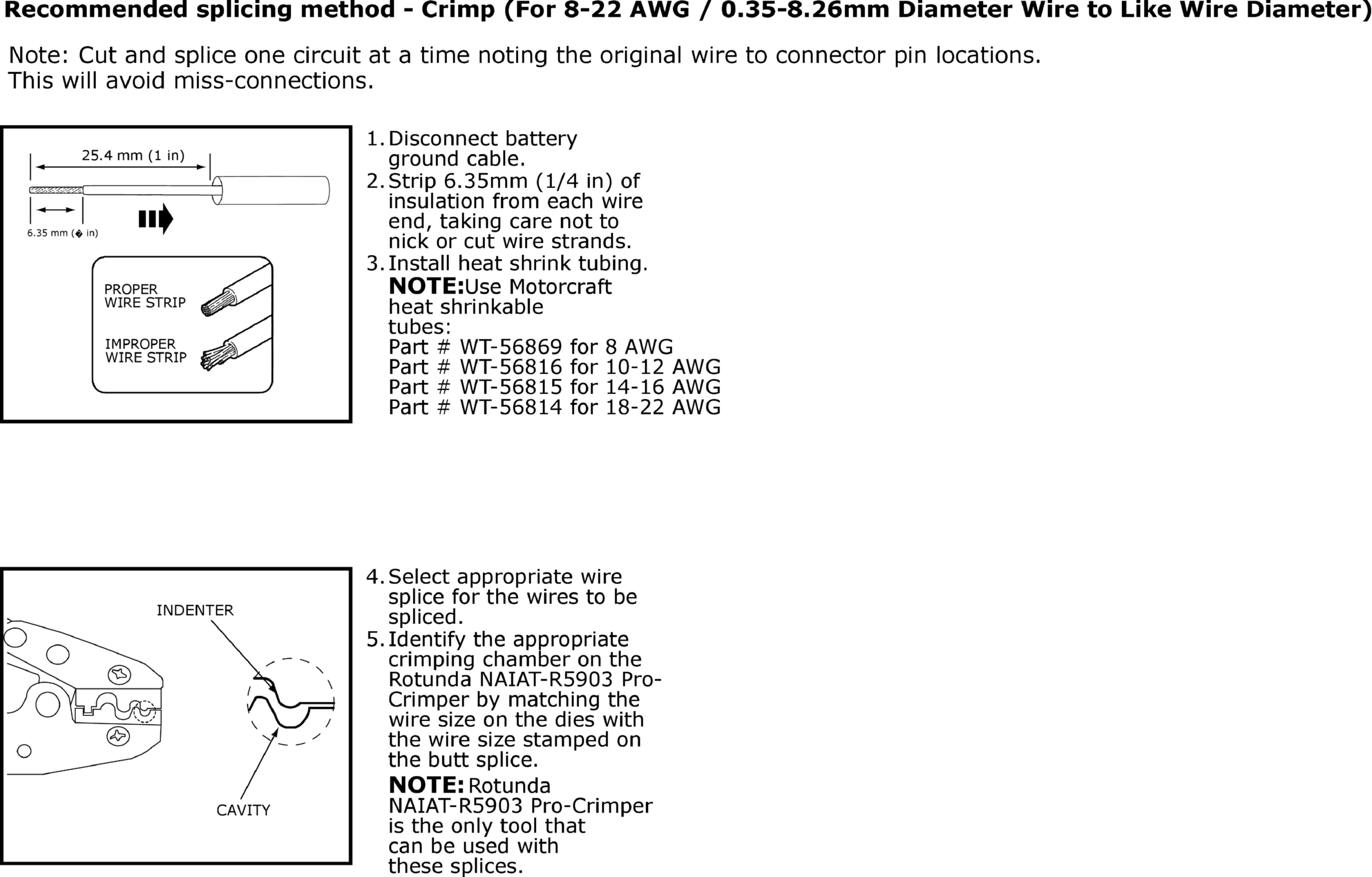

GFDW76374Courtesy of FORD MOTOR COMPANY

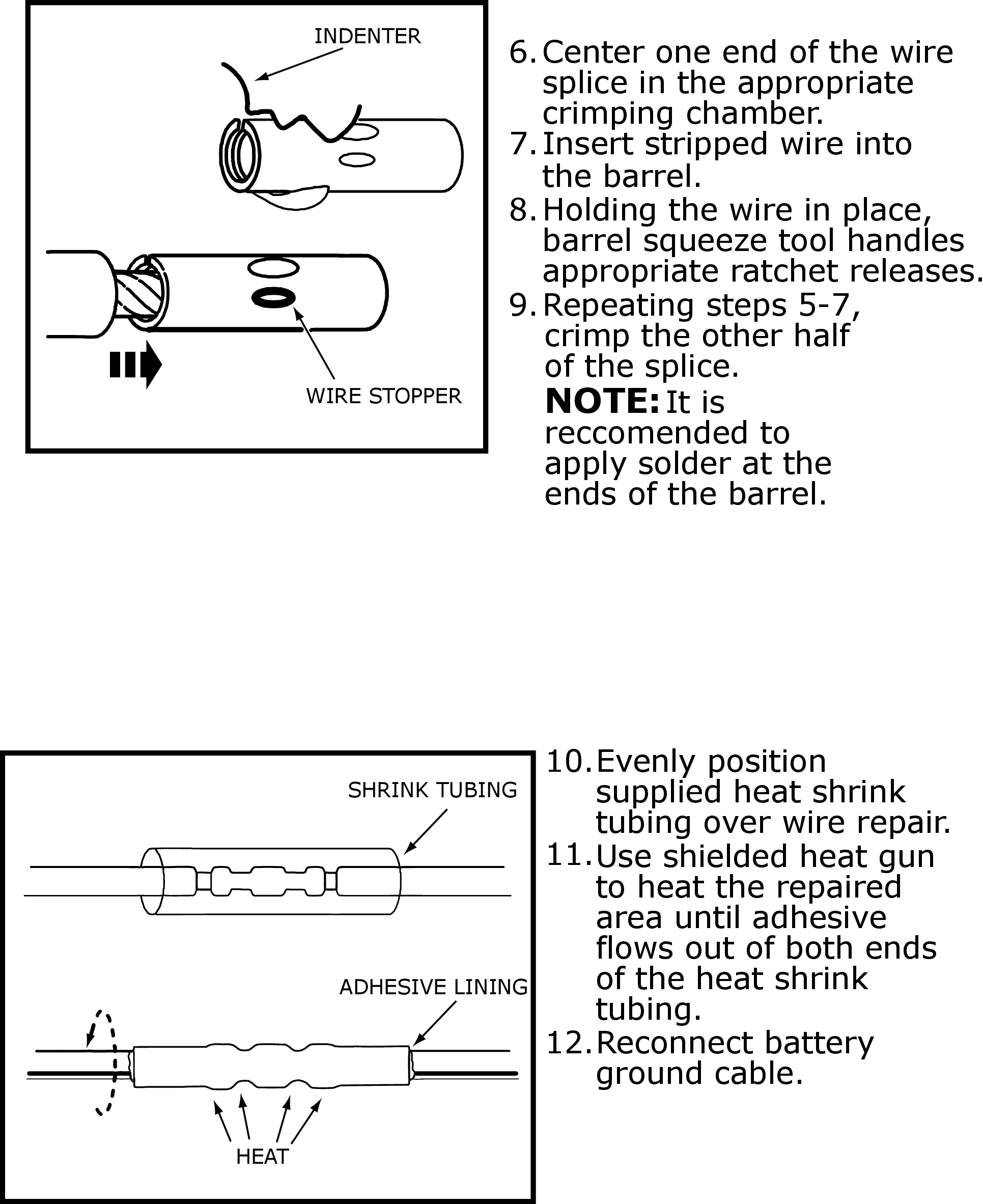

GFDW76375Courtesy of FORD MOTOR COMPANY

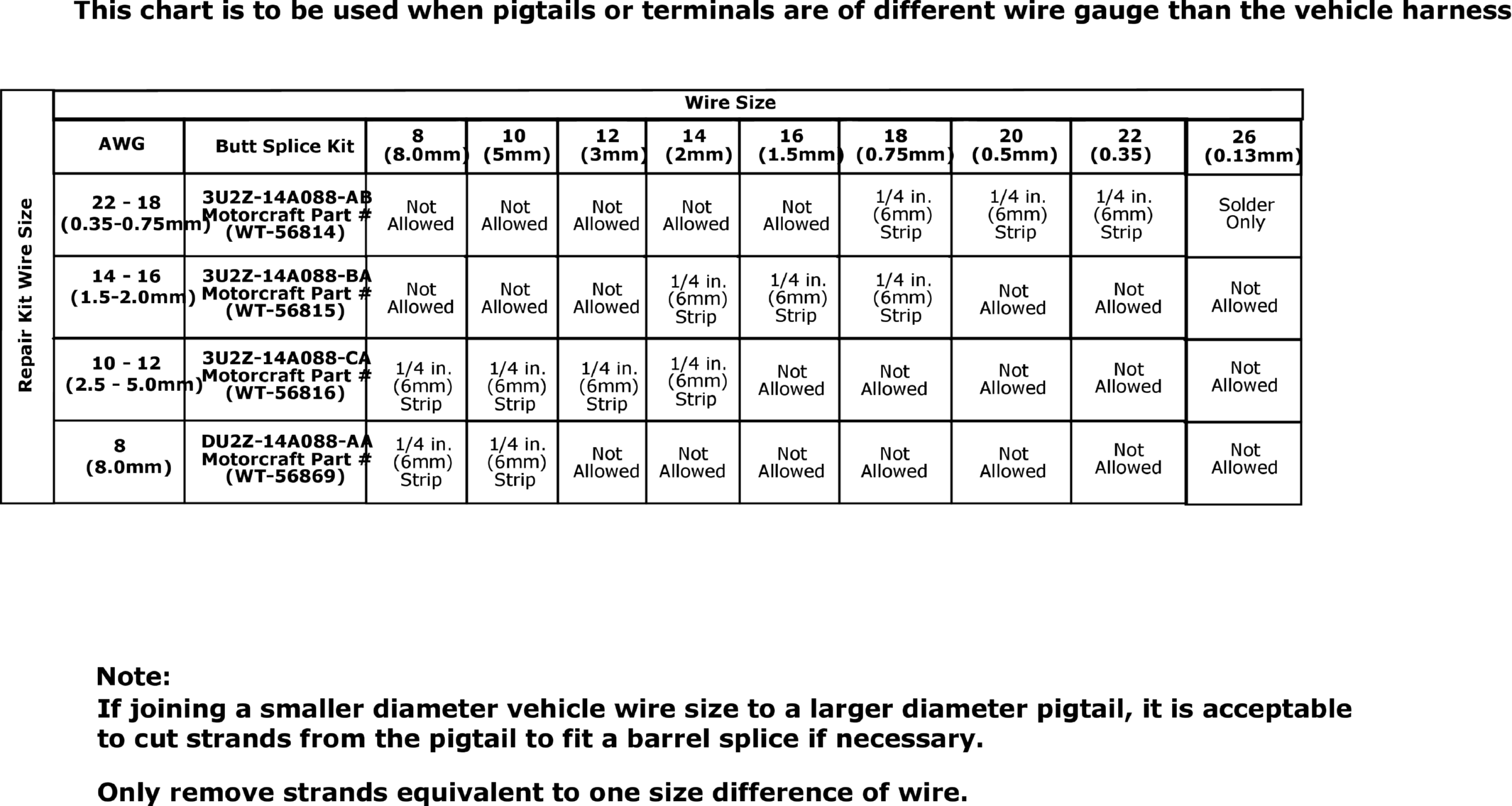

GFDW76376Courtesy of FORD MOTOR COMPANY
