Fuel Pump Driver Module (FPDM): Installation

NOTE: Position the carpet aside for access.

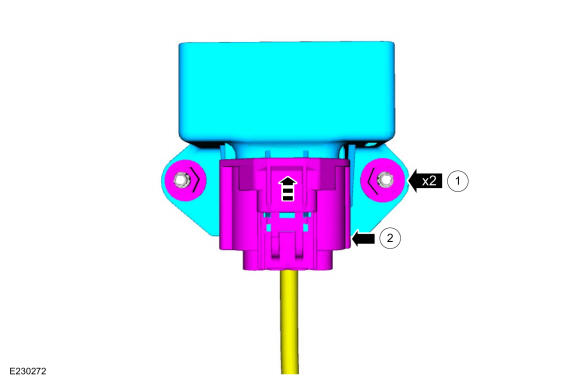

1. Install the FPDM, then install and tighten the FPDM retaining nuts.
  Torque: 97 lb.in (11 Nm)
2. Connect the FPDM electrical connector.
Courtesy of FORD MOTOR COMPANY

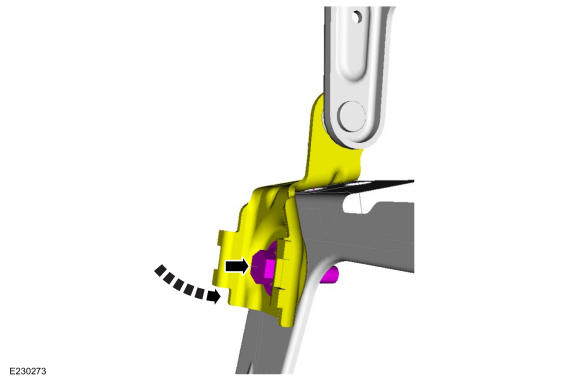

Install the right rear seat RH hinge, then install and tighten the retaining bolt.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

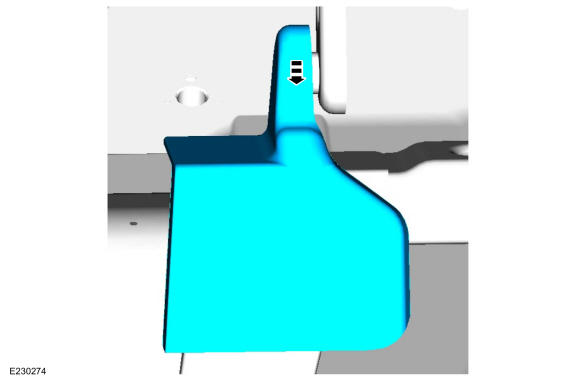

Install the right rear seat, RH hinge cover.

Courtesy of FORD MOTOR COMPANY

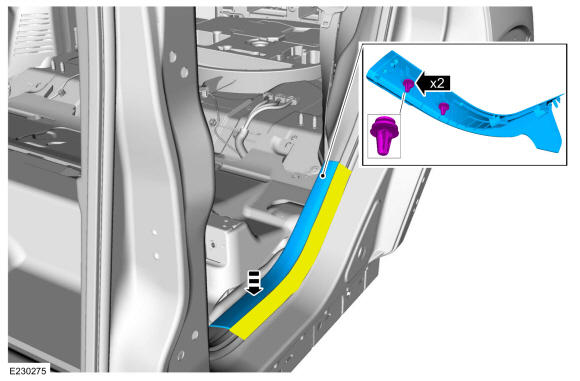

NOTE: LH shown, RH is similar.

Install the right rear door scuff plate and then install the right rear door weatherstrip.

Courtesy of FORD MOTOR COMPANY
