Connector Repair Procedures

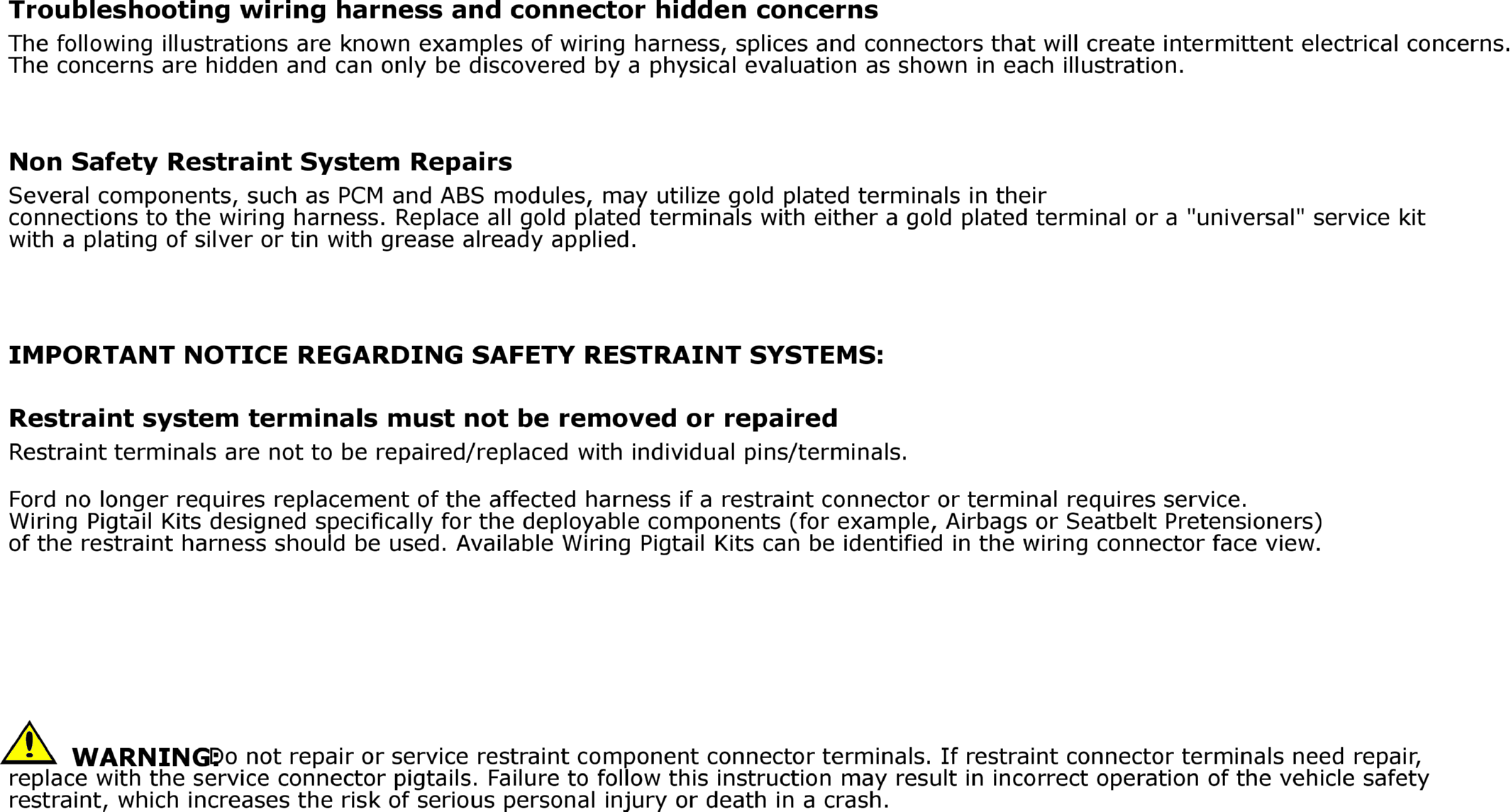

GFDW59918Courtesy of FORD MOTOR COMPANY

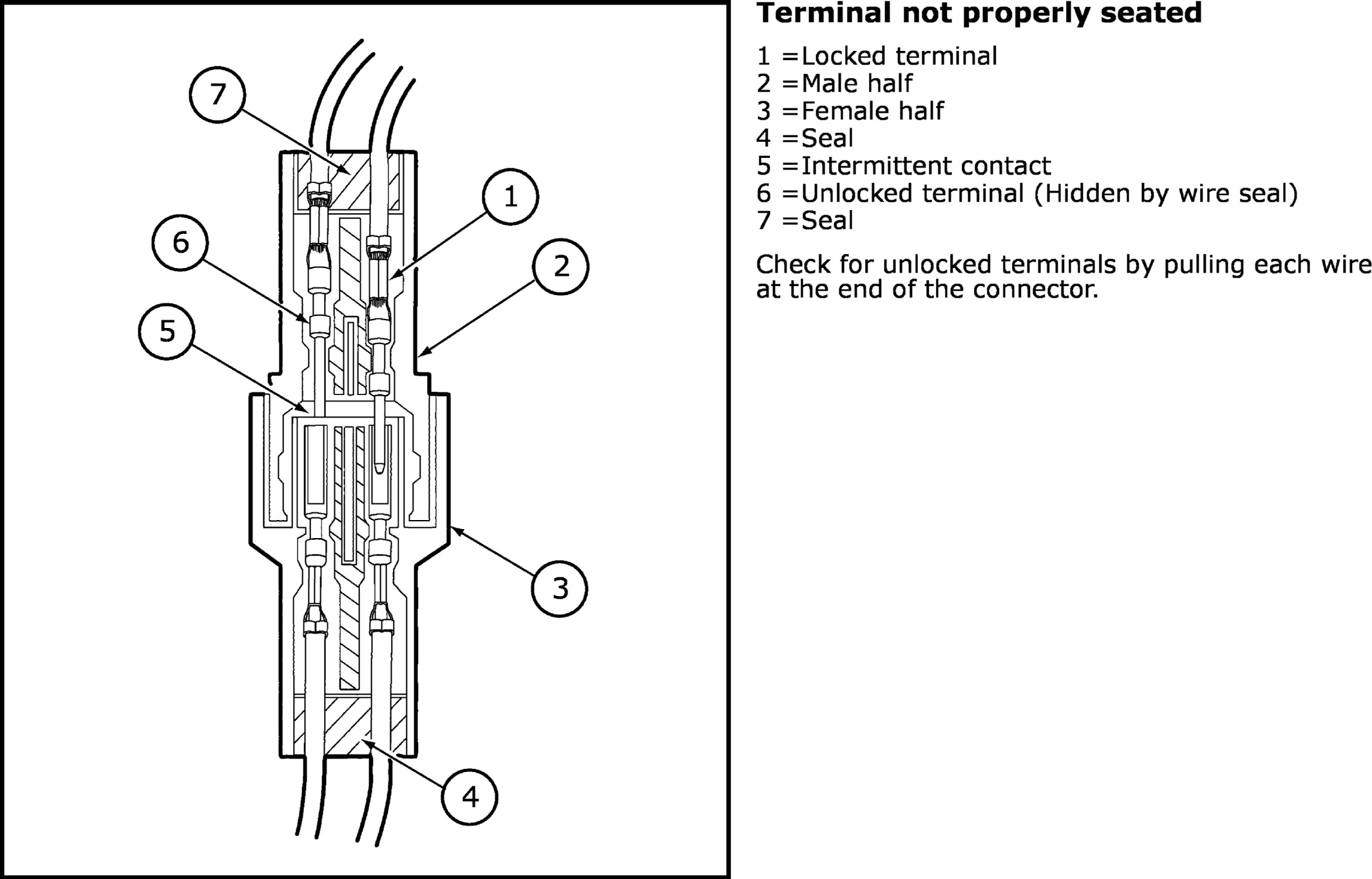

GFDW59919Courtesy of FORD MOTOR COMPANY

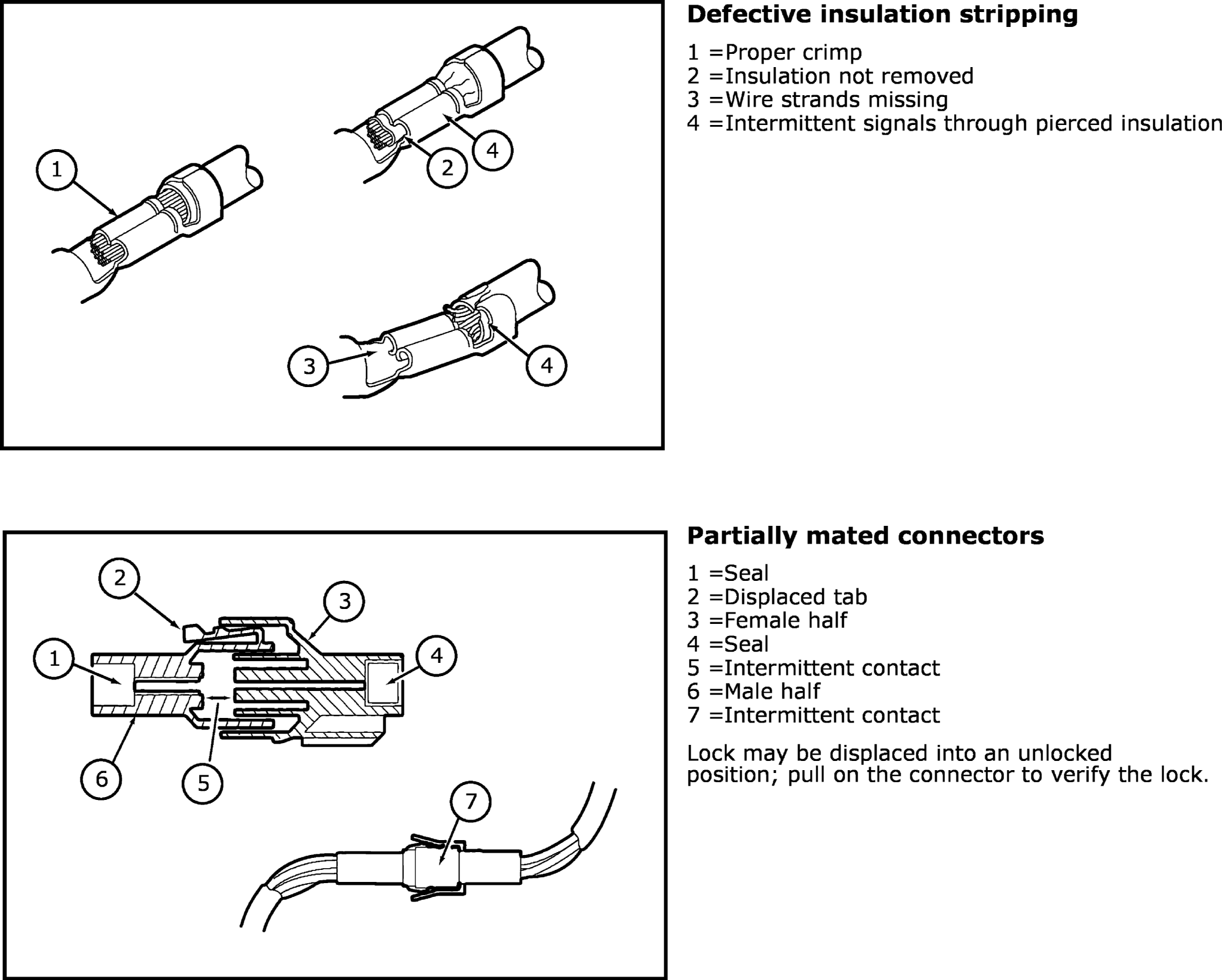

GFDW59920Courtesy of FORD MOTOR COMPANY

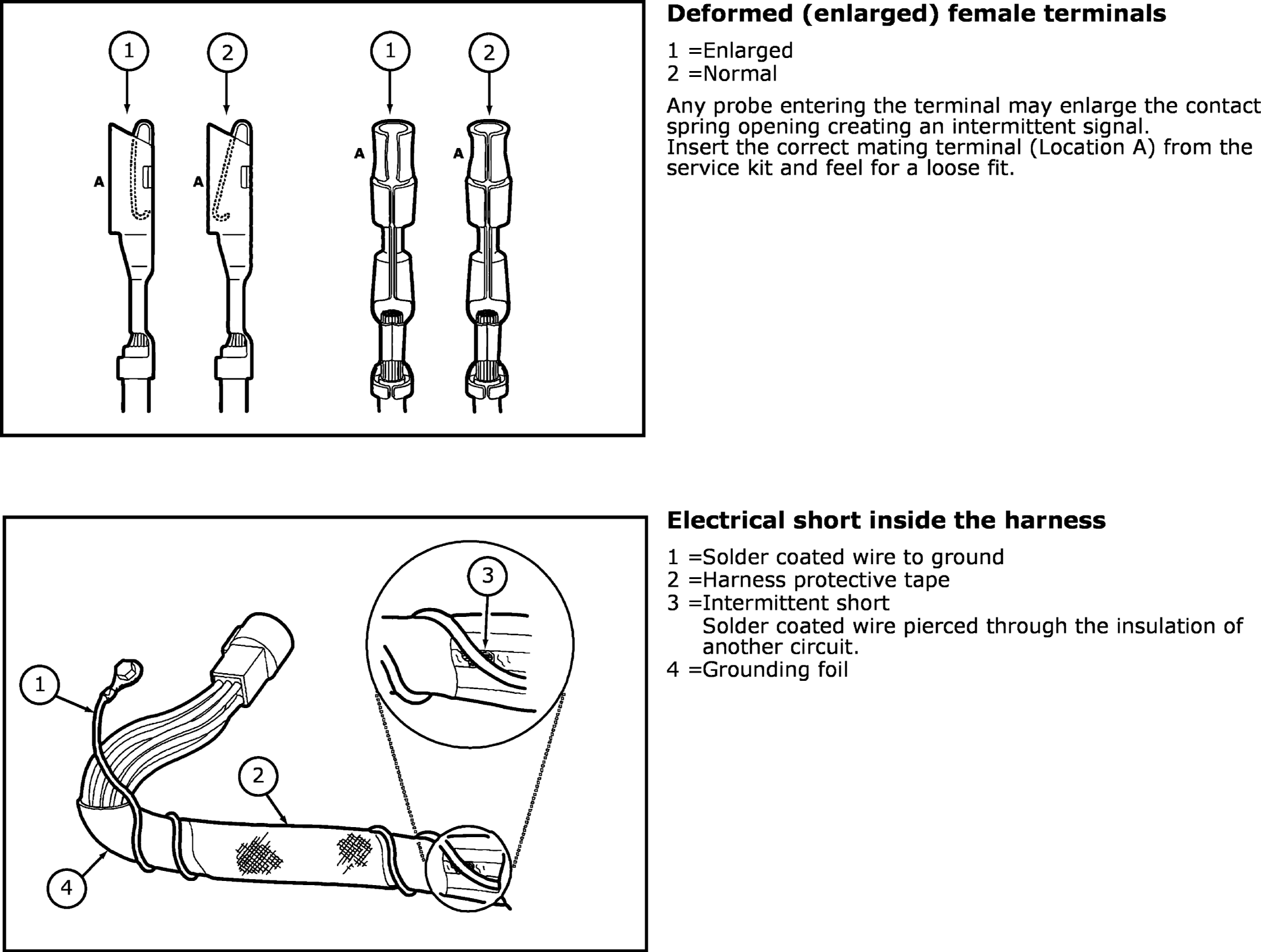

GFDW59921Courtesy of FORD MOTOR COMPANY

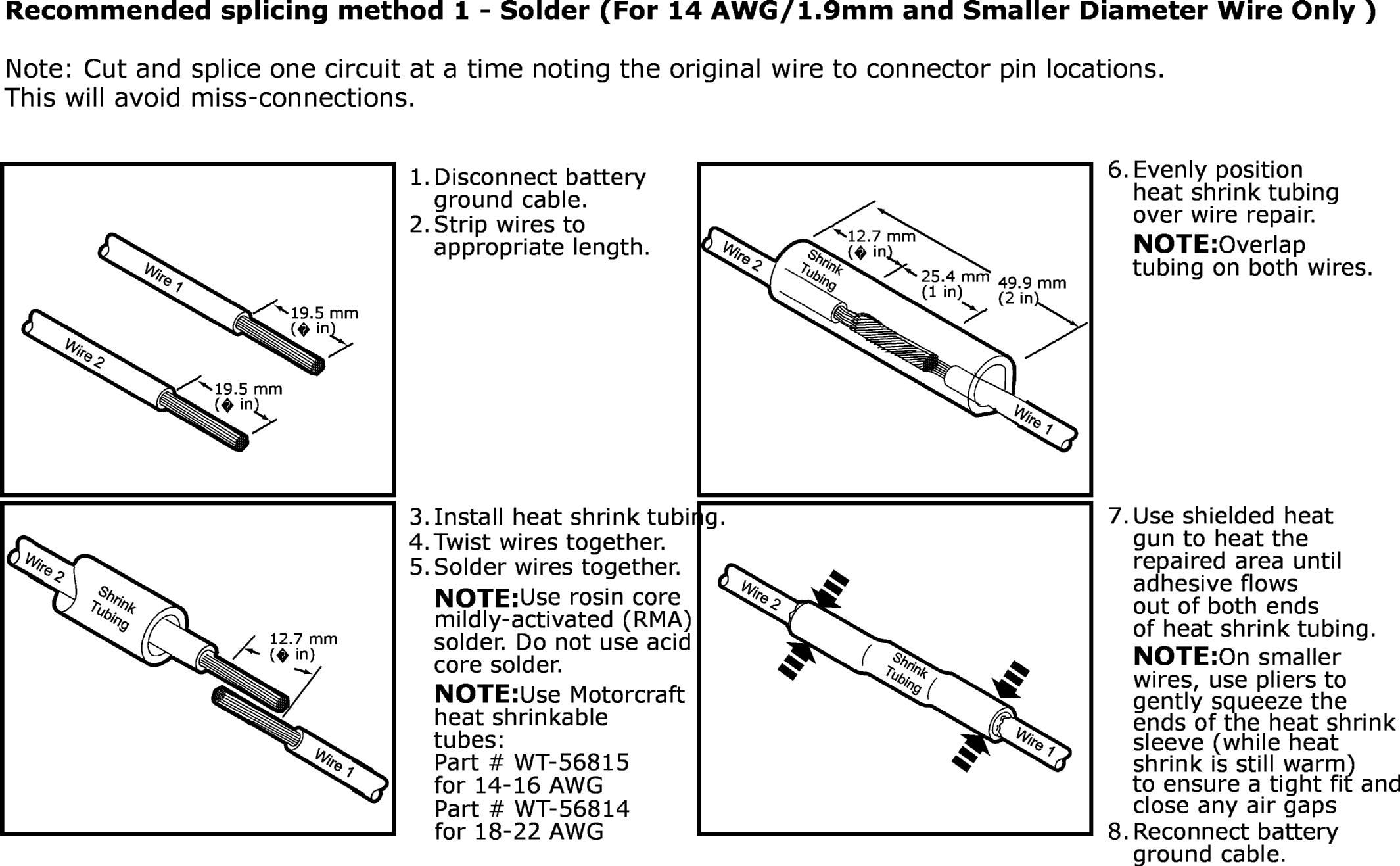

GFDW59922Courtesy of FORD MOTOR COMPANY

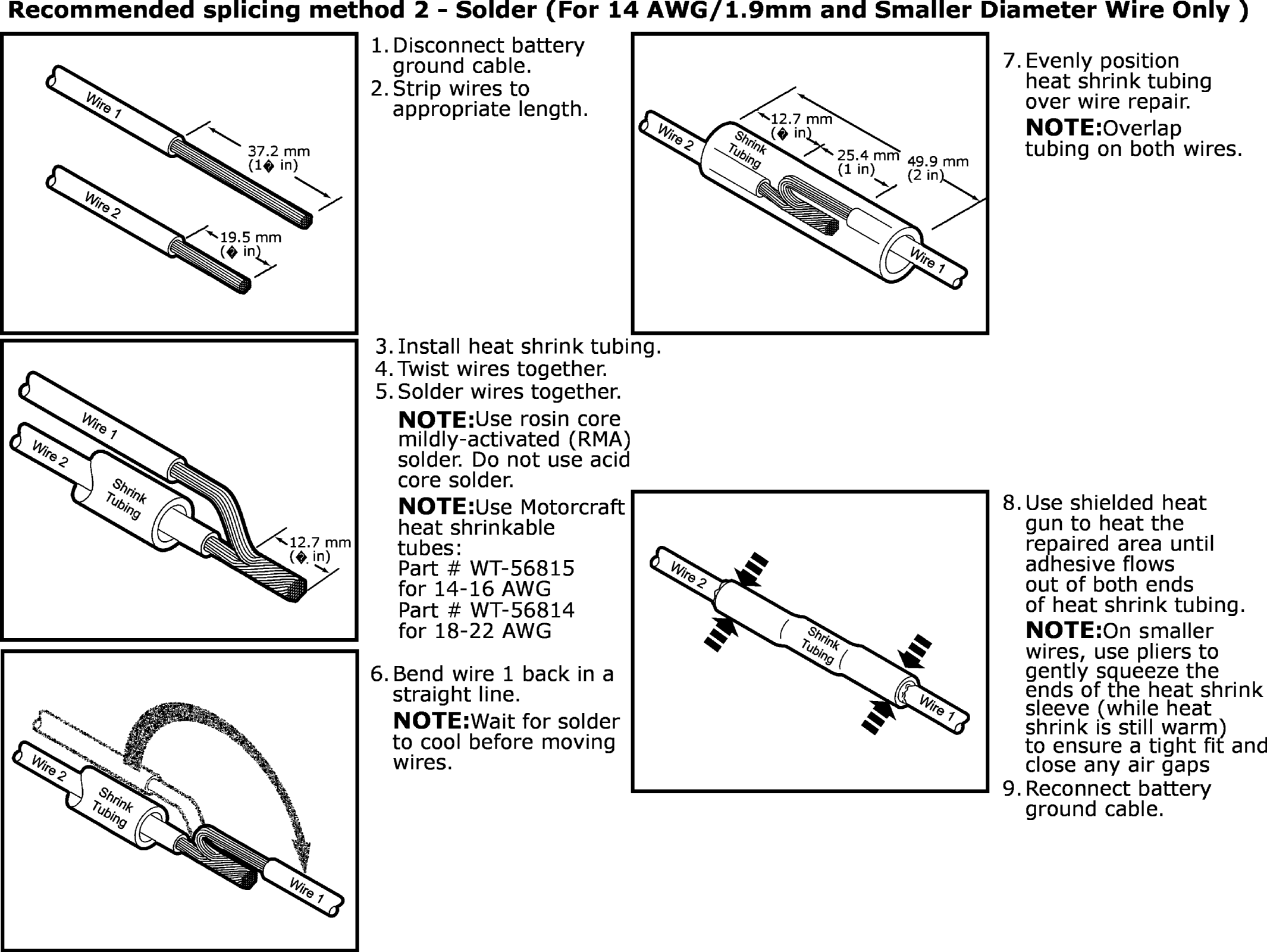

GFDW59923Courtesy of FORD MOTOR COMPANY

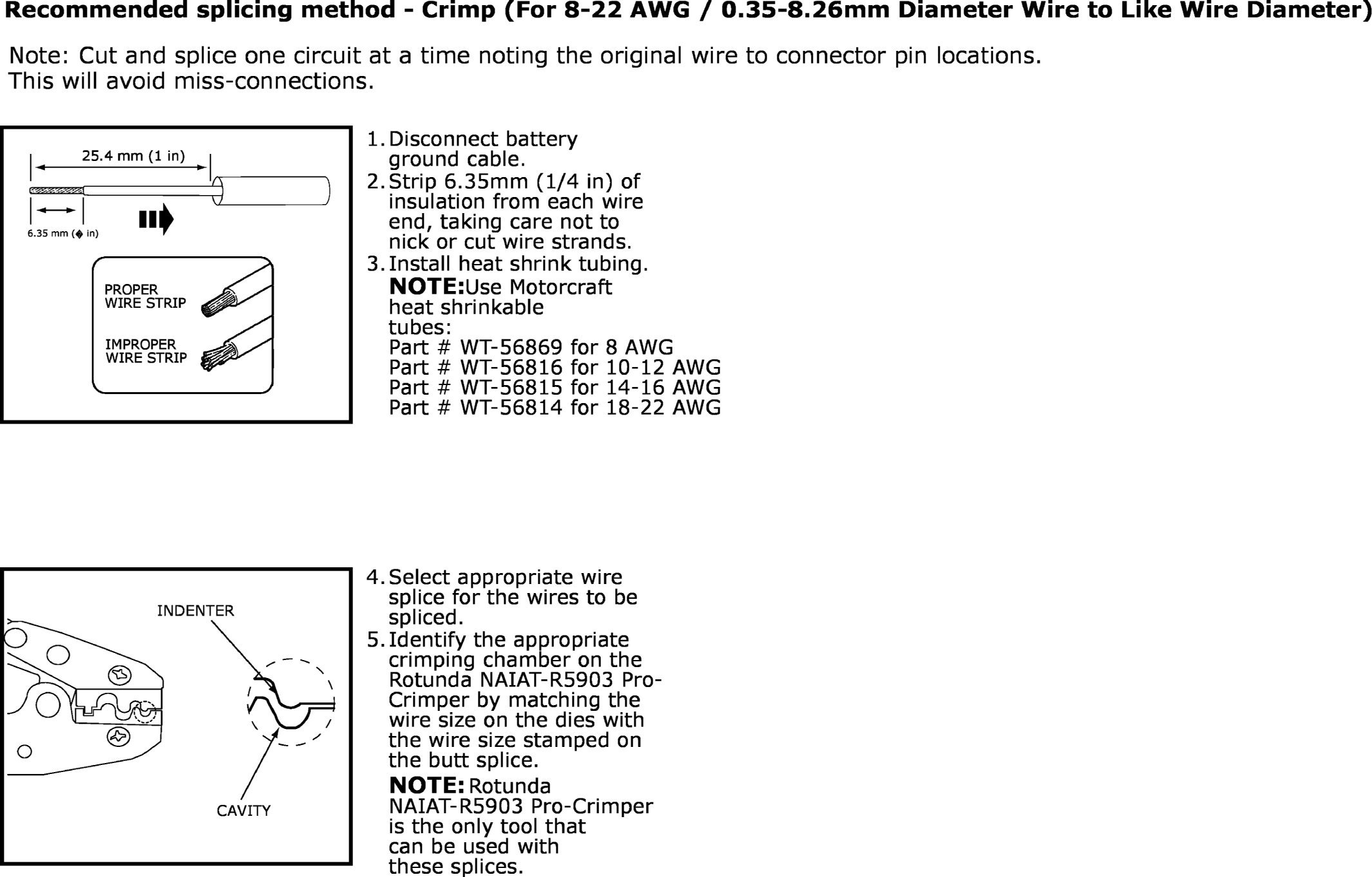

GFDW59924Courtesy of FORD MOTOR COMPANY

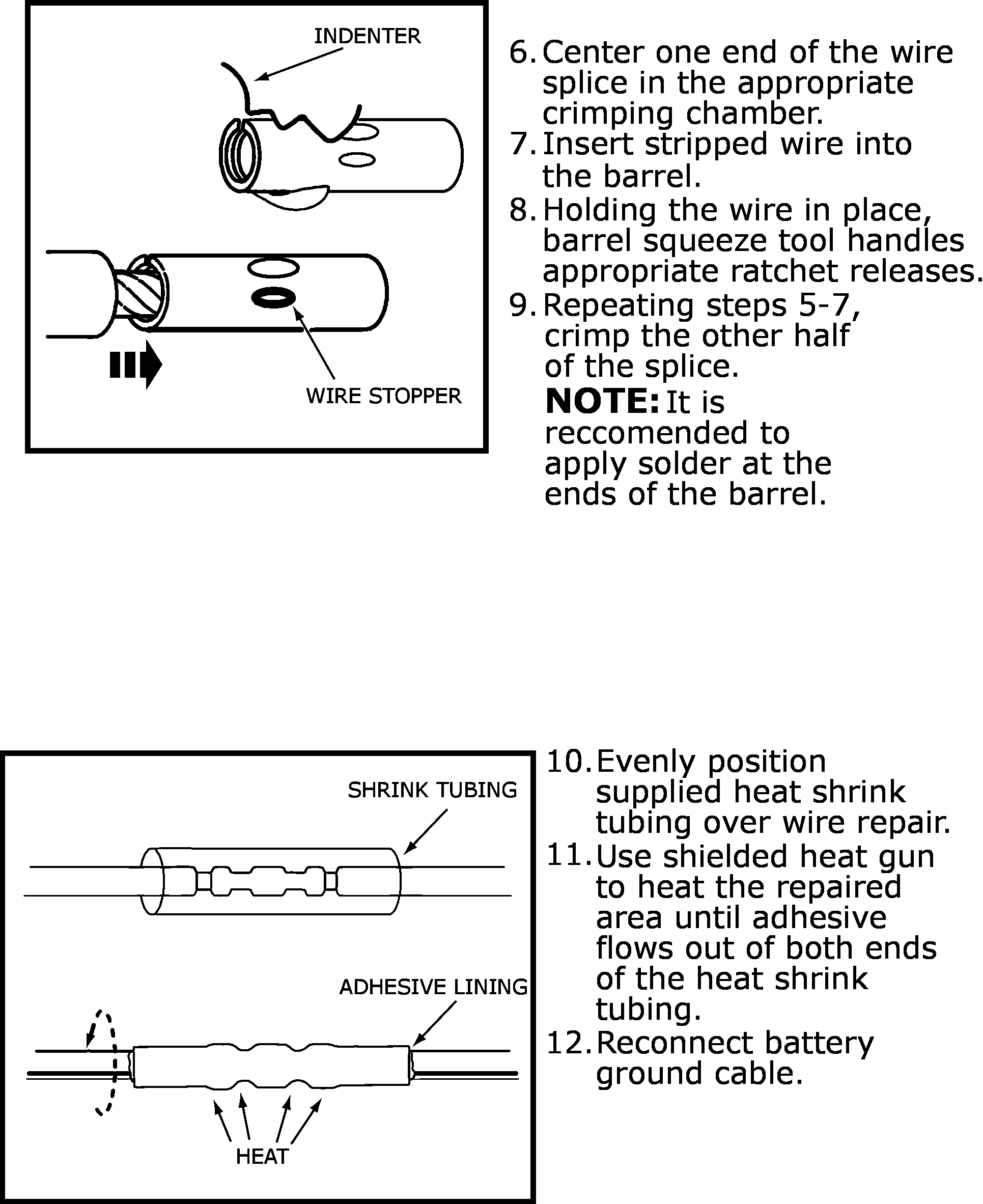

GFDW59925Courtesy of FORD MOTOR COMPANY

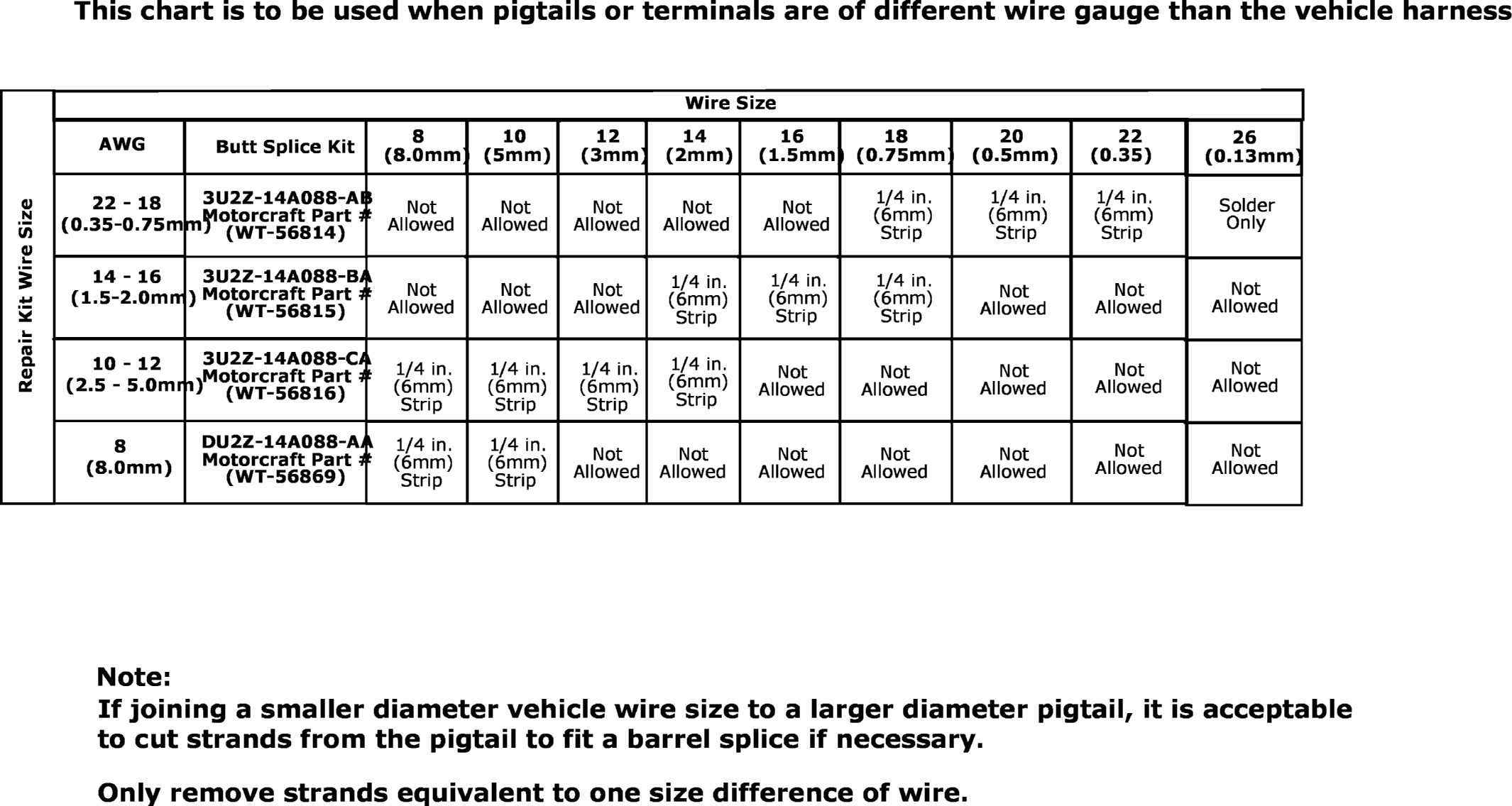

GFDW59926Courtesy of FORD MOTOR COMPANY
