Inner Tie Rod: Notes
Special Tool(s)
| Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent | |
| Separator, Ball Joint Tool 204-592 |
Material
| Item | Specification |
| Motorcraft ® Premium Long-Life Grease XG-1-E1 | ESA-M1C75-B |

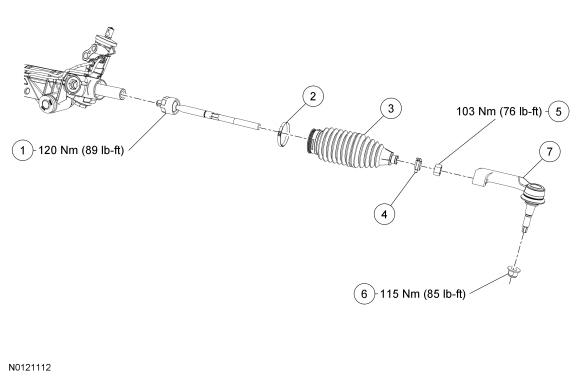

| Item | Part Number | Description |
|---|---|---|
| 1 | 3280 | Inner tie rod |
| 2 | - | Inner bellows boot clamp (part of 3332 service kit) |
| 3 | - | Steering gear bellows boot (part of 3332 service kit) |
| 4 | - | Outer bellows boot clamp (part of 3332 service kit) |
| 5 | W712367 | Tie-rod jam nut |
| 6 | W520215 | Outer tie-rod end nut |
| 7 | 3A130 | Outer tie-rod end |
