Intermediate Clutch Assembly: Notes
Special Tool (s)
| Compressor, Clutch Spring 307-525 | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| End Play Gauge, Clutch 307-555 |
Material
| Item | Specification |
| Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) | MERCON ® LV |

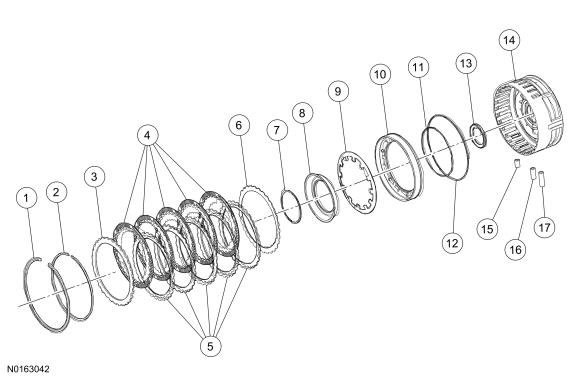

Intermediate Clutch Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Center support retaining ring |
| 2 | 7D483 | Intermediate clutch pack retaining ring |
| 3 | 7B066 | Intermediate clutch pressure plate |
| 4 | 7B164 | Intermediate clutch internal splined friction plates (quantity model dependent) |
| 5 | 7B442 | Intermediate clutch external splined steel plates (quantity model dependent) |
| 6 | 7E085 | Intermediate clutch cushion spring |
| 7 | 7A577 | Intermediate clutch snap ring |
| 8 | 7B043 | Intermediate clutch return spring retaining ring |
| 9 | 7A480 | Intermediate clutch piston return spring |
| 10 | 7E005 | Intermediate clutch piston (model dependent) |
| 11 | 7F225 | Intermediate clutch piston inner seal |
| 12 | 7F224 | Intermediate clutch piston outer seal |
| 13 | 7F373 | Bearing (T6) |
| 14 | 7A130 | Intermediate/low/reverse clutch center support |
| 15 | 7G199 | Center support feed tube seal (black) |
| 16 | 7G087 | Center support feed tube seal (green or orange) |
| 17 | 7G084 | Center support feed tube seal (blue) |
