Fuel Pump Driver Module (FPDM): Installation

1.

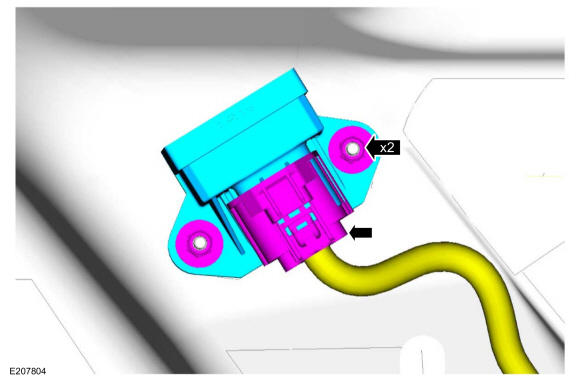

Install the FPDM, then install and tighten the FPDM nuts. Connect the FPDM electrical connector.
Torque

: 53 lb.in (6 Nm)

GFD123193

Courtesy of FORD MOTOR COMPANY

2.

Install the C-Pillar Trim Panel. Refer to: C-Pillar Trim Panel . Refer to: C-Pillar Trim Panel - Vehicles With: Inflatable Seatbelts .
