Front Control / Display Interface Module (FCDIM) (Except SYNC GEN 2)

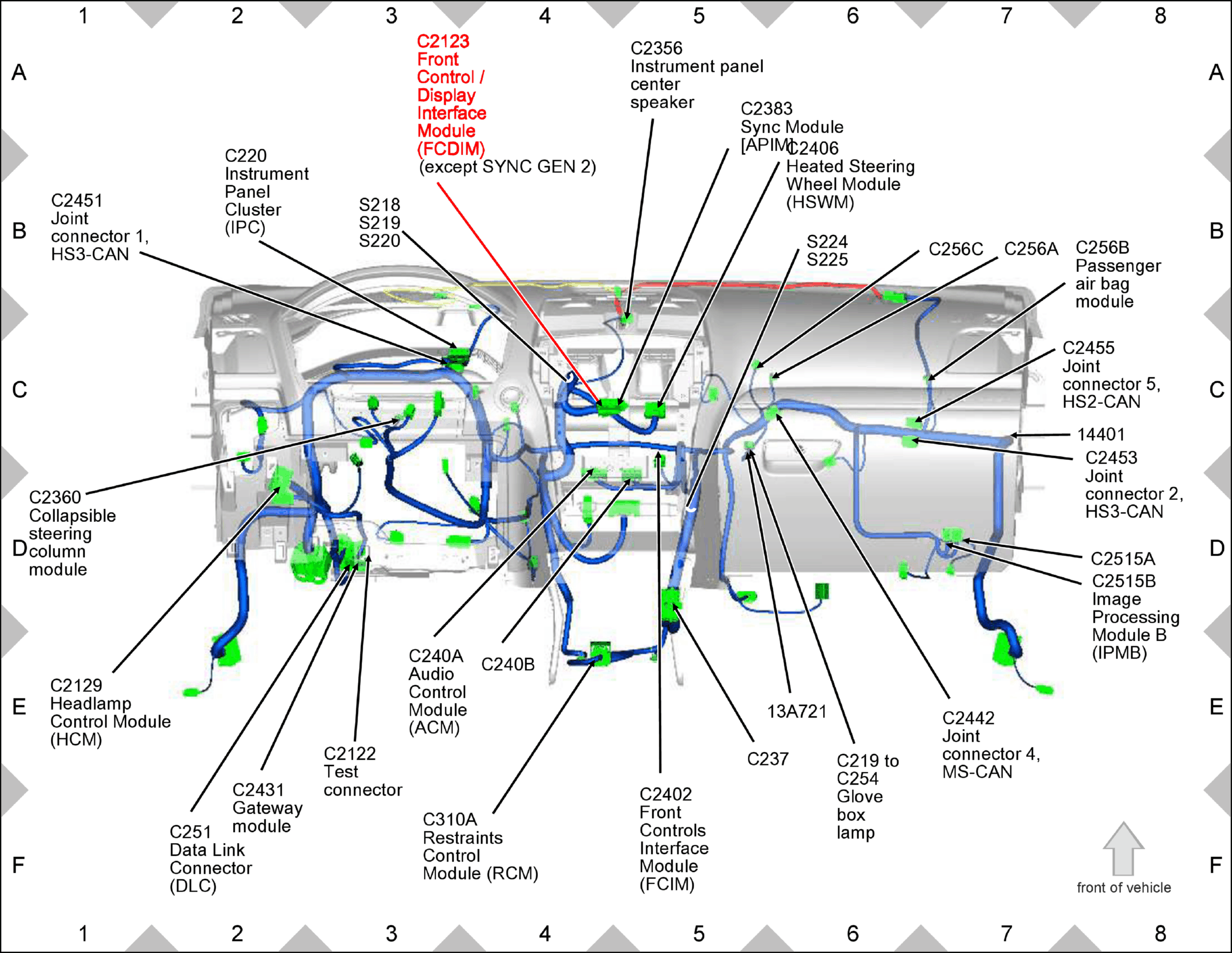

Fig 1: Front Control / Display Interface Module (FCDIM) Component Location Chart (Except SYNC GEN 2)
GFDW53940Courtesy of FORD MOTOR COMPANY
