Driver Multi-Contour Seat Module [SCMG]: Removal

NOTE: Drivers seat SCMG shown in illustration, passenger seat SCMH similar.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCMG installed. If the current SCMG does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMG following the on-screen instructions.

2.

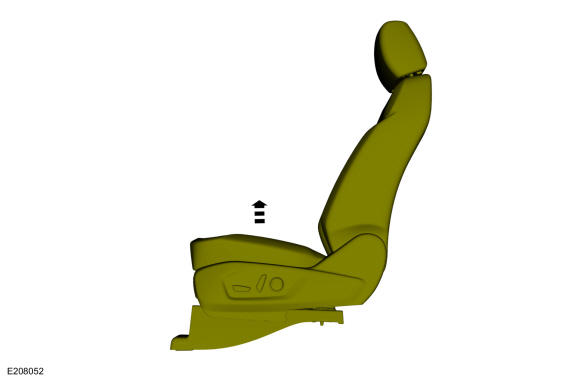

Move the front seat to the full upward position.

GFD125533

Courtesy of FORD MOTOR COMPANY

3.

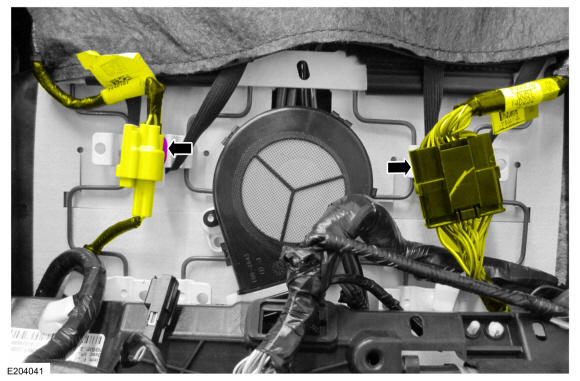

Detach the electrical connector retainers and position the wire harnesses aside.

GFD125534

Courtesy of FORD MOTOR COMPANY

4.

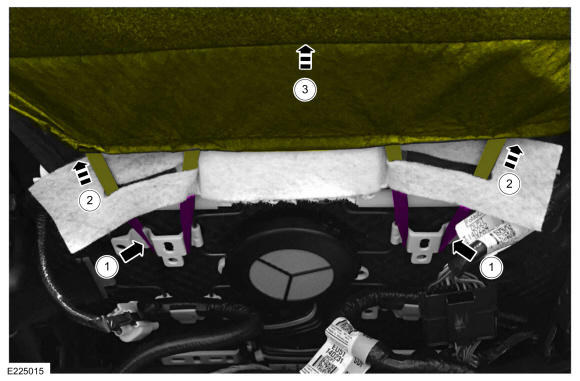

1. 1.

  Detach the backrest cover straps.
1. 2.

  If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
1. 3.

  Position the backrest cover upward.

GFD125535

Courtesy of FORD MOTOR COMPANY

5.

NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

NOTE: Follow the unique instructions or graphics for this step in the installation for backrest blower motor snorkel routing.

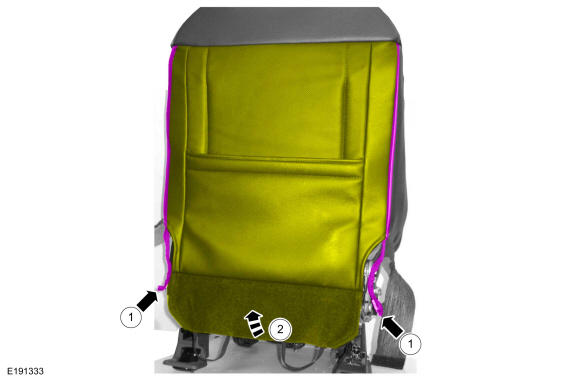

1. 1.

  Unzip the backrest cover zipper on each side.
1. 2.

  Position the backrest cover upward.

GFD125536

Courtesy of FORD MOTOR COMPANY

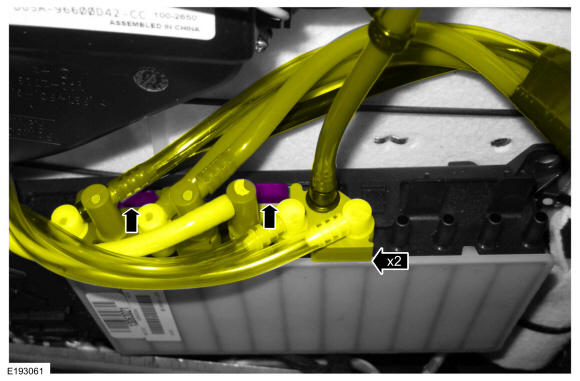

6.

NOTE: Follow the color codes of the hoses and locks as indicated below. Tube colors noted are from left to right.

Release the locking tabs and disconnect the hose and lock assemblies from the SCMG.
- Orange lock: black - transparent blue - blue - green
- Blue lock: yellow - transparent green - red - clear

GFD125537

Courtesy of FORD MOTOR COMPANY

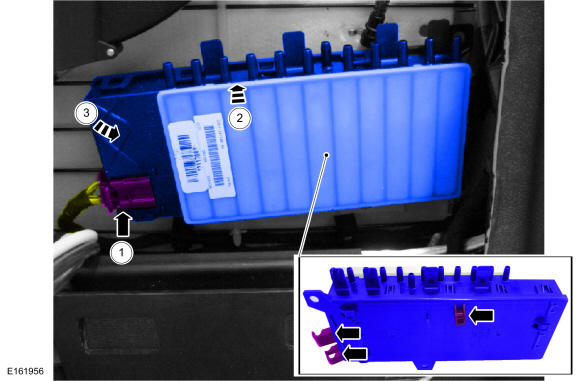

7.

Remove the SCMG.
1. 1.

  Disconnect the electrical connector.
1. 2.

  Lift upwards on the SCMG to release the rear locking clip.
1. 3.

  Rotate the SCMG to release the side locking clips.

GFD125538
