Front Seat Control Switch: Removal

NOTE: Driver seat control switch shown in illustration, all others similar.

1.

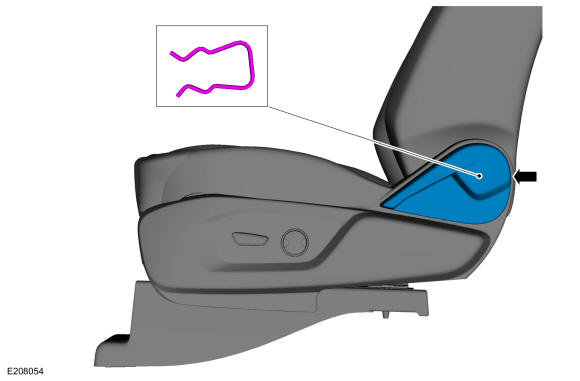

If equipped. Remove the clip and the recline handle.

GFD125579

Courtesy of FORD MOTOR COMPANY

2.

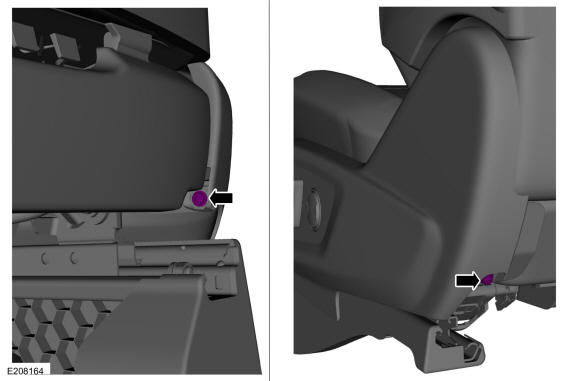

Remove the side shield screws.

GFD125580

Courtesy of FORD MOTOR COMPANY

3.

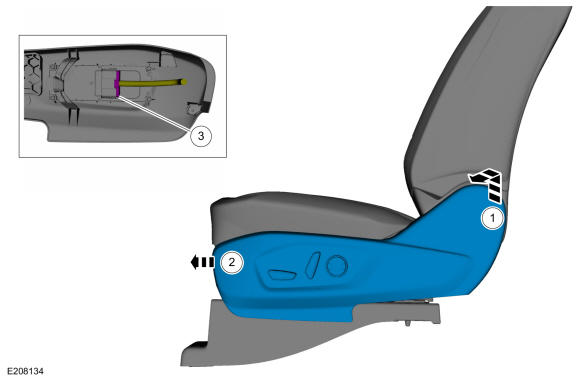

Remove the side shield.
1. 1.

  Lift up on the rear of the side shield and pull outward.
1. 2.

  Push the side shield forward.
1. 3.

  Disconnect the electrical connector.

GFD125581

Courtesy of FORD MOTOR COMPANY

4.

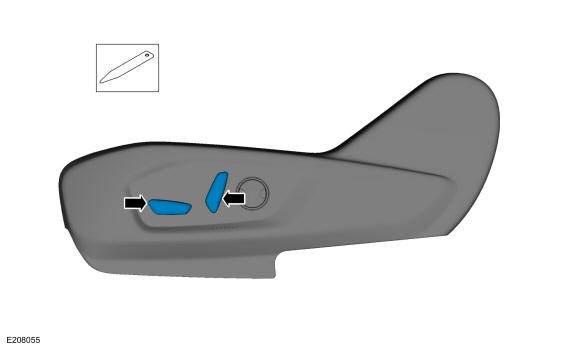

Remove the seat control switch knob(s).

GFD125582

Courtesy of FORD MOTOR COMPANY

5.

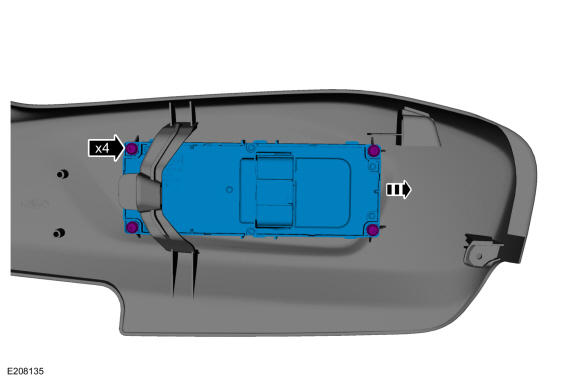

NOTE: 10-way seat control switch shown in illustration, all others similar.

Remove the screws and the seat control switch.

GFD125583

Courtesy of FORD MOTOR COMPANY
