OEM Ground Distribution: Grounds

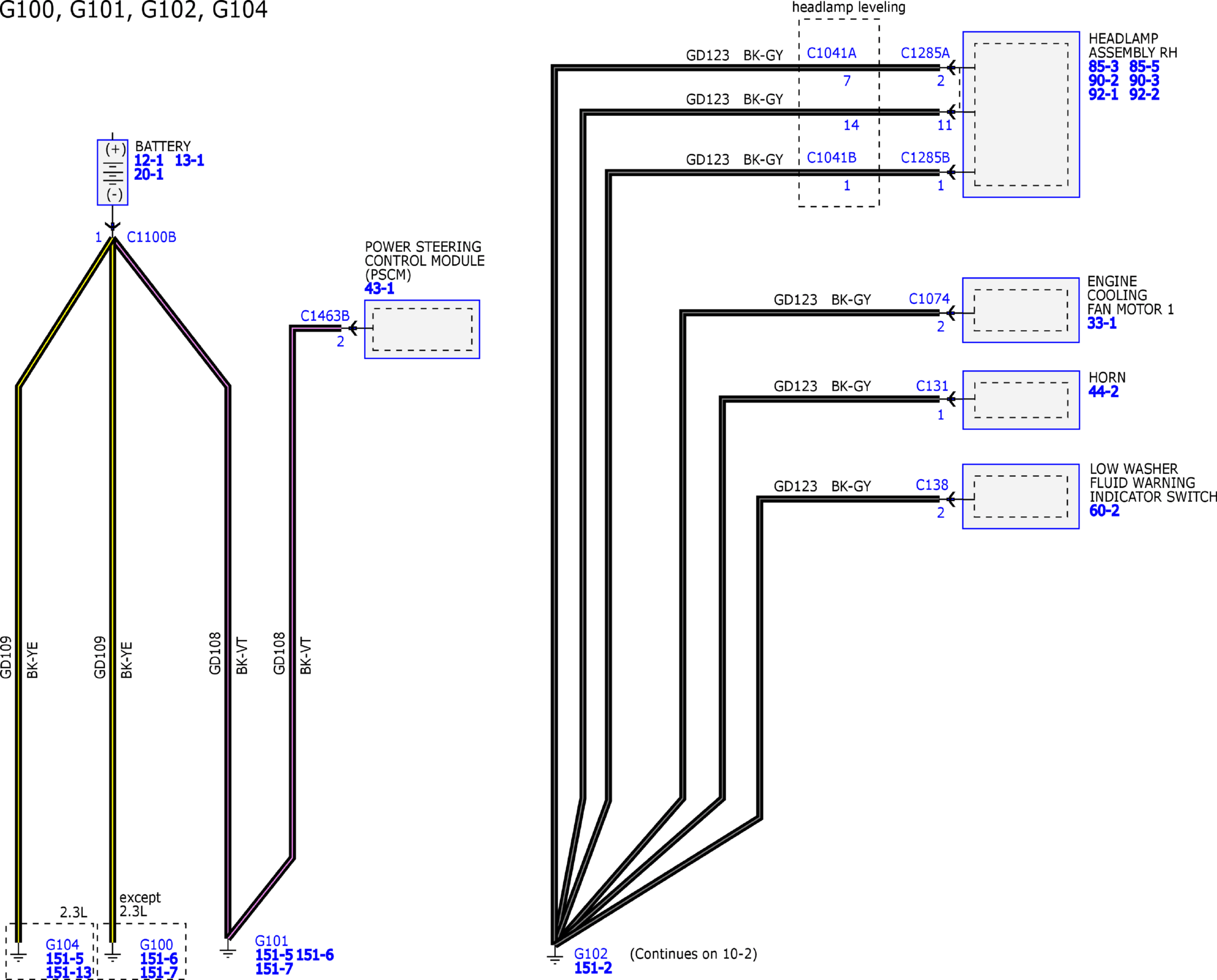

GFDW54877Courtesy of FORD MOTOR COMPANY

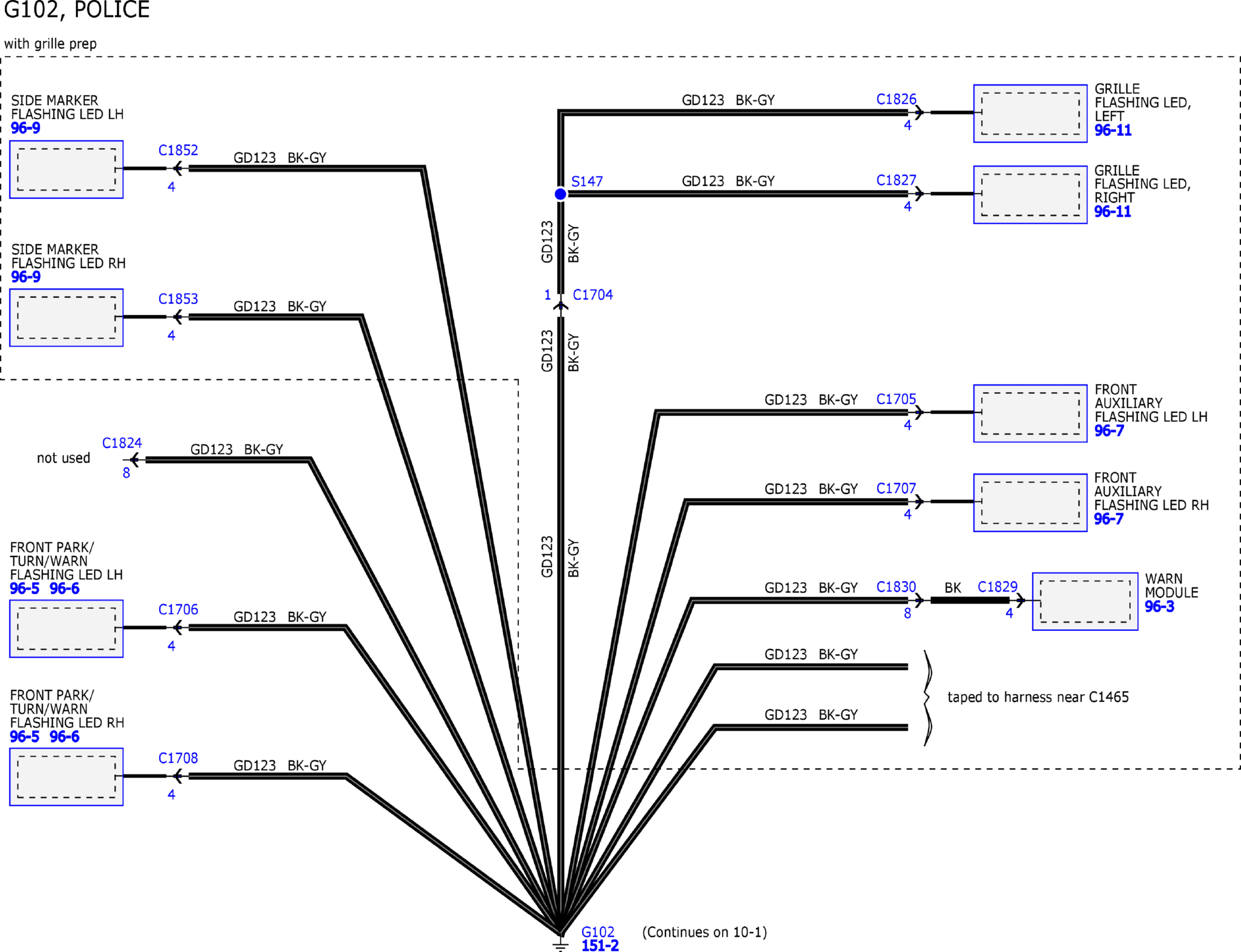

GFDW54878Courtesy of FORD MOTOR COMPANY

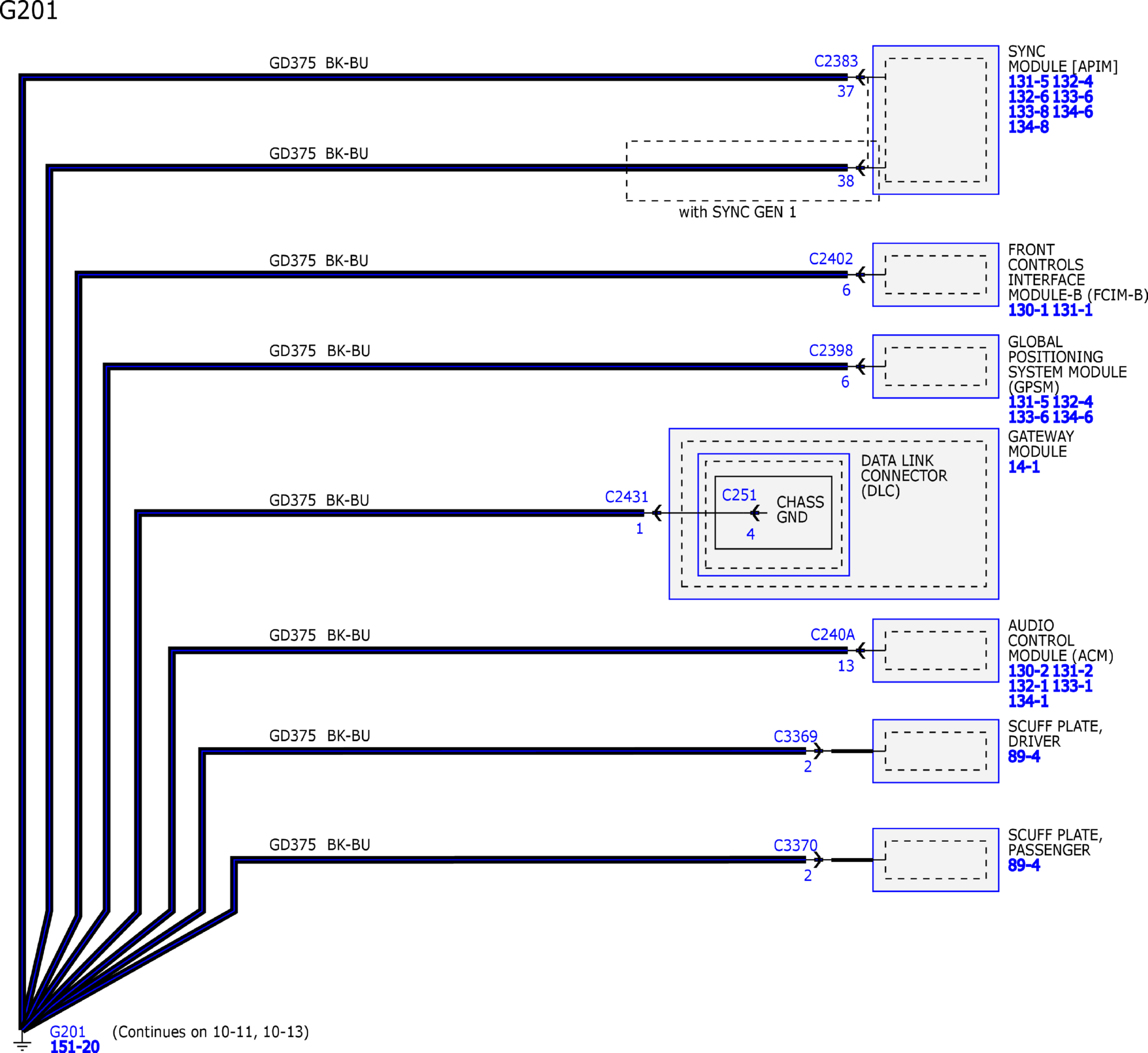

GFDW54879Courtesy of FORD MOTOR COMPANY

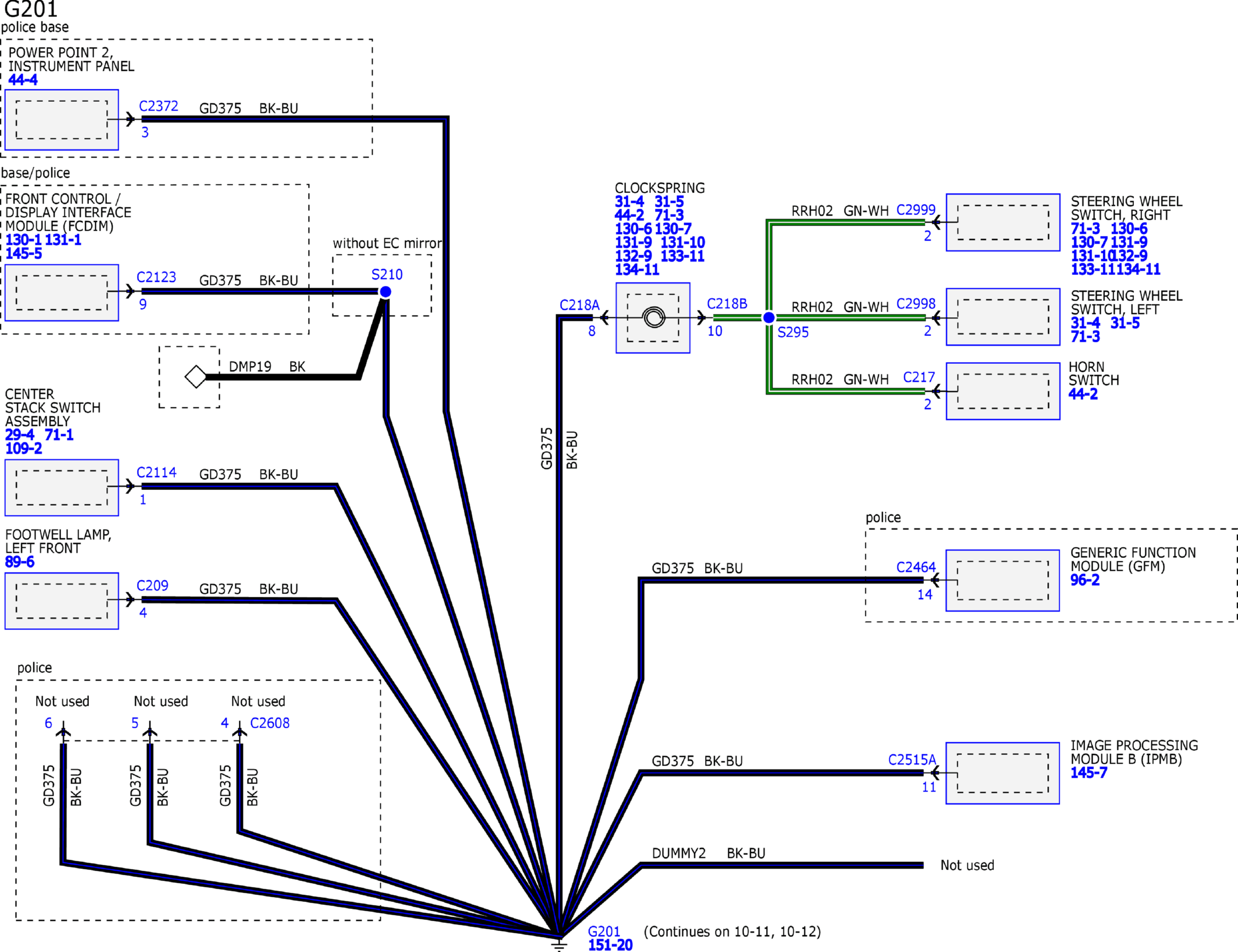

GFDW54880Courtesy of FORD MOTOR COMPANY

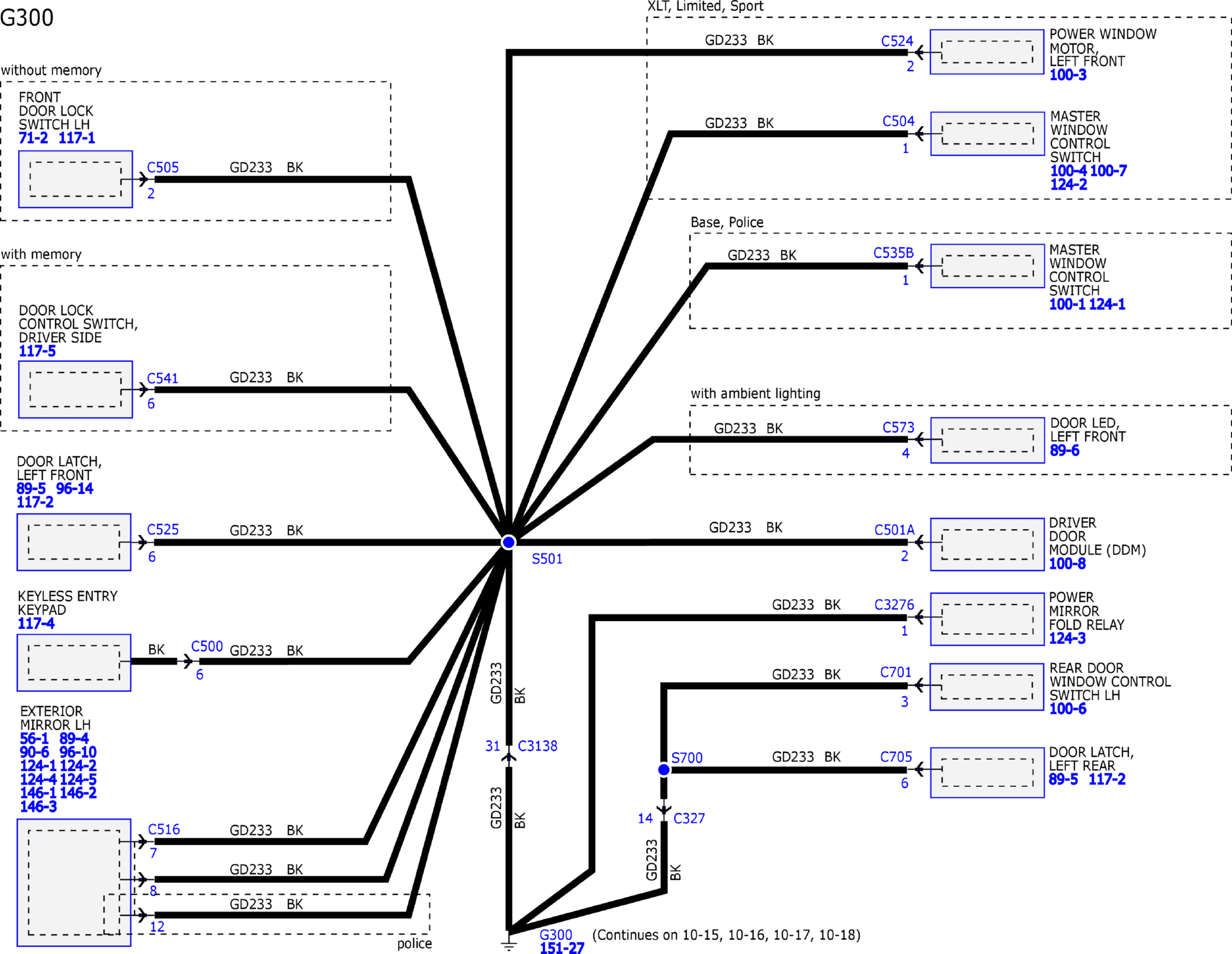

GFDW54881Courtesy of FORD MOTOR COMPANY

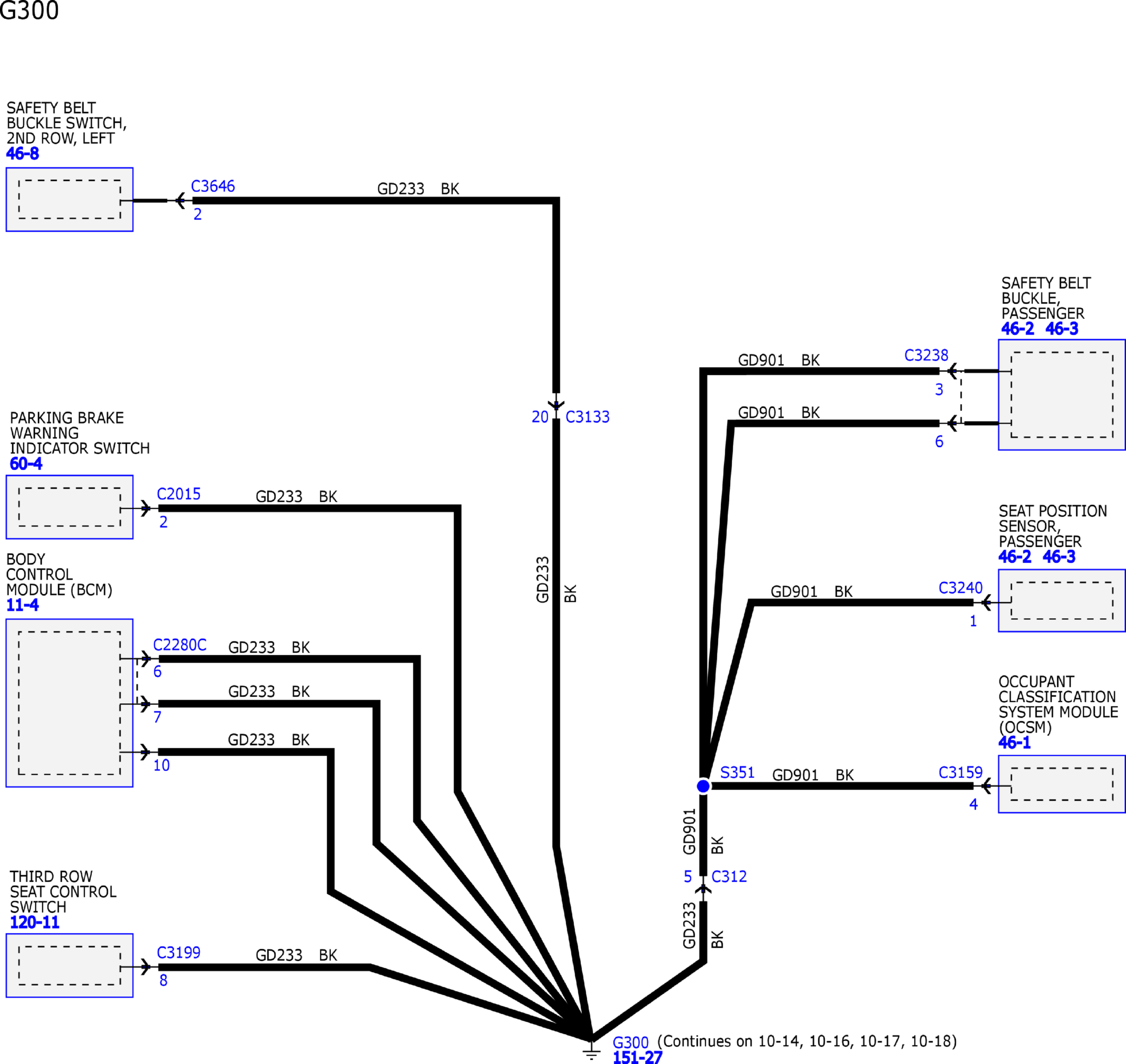

GFDW54882Courtesy of FORD MOTOR COMPANY

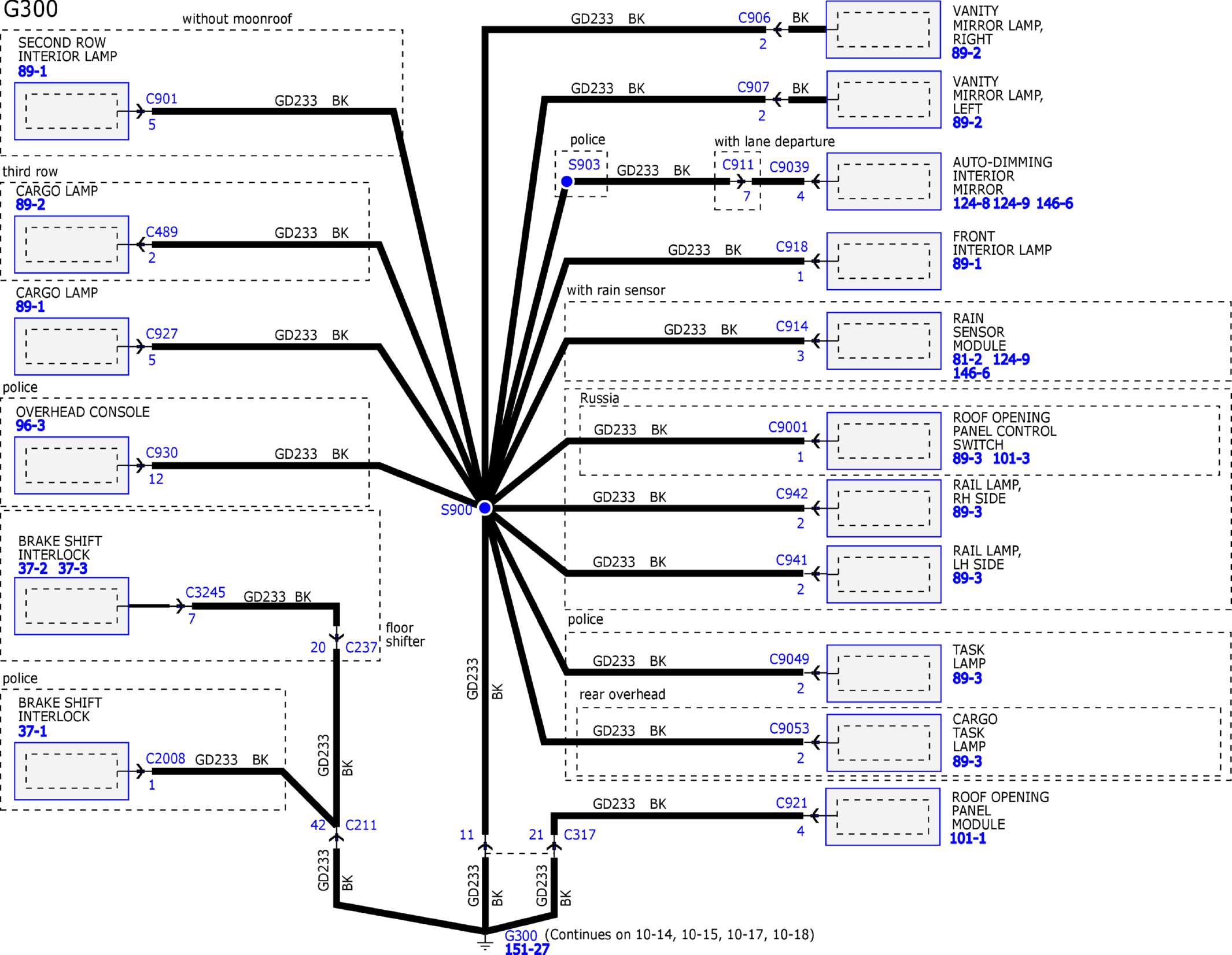

GFDW54883Courtesy of FORD MOTOR COMPANY

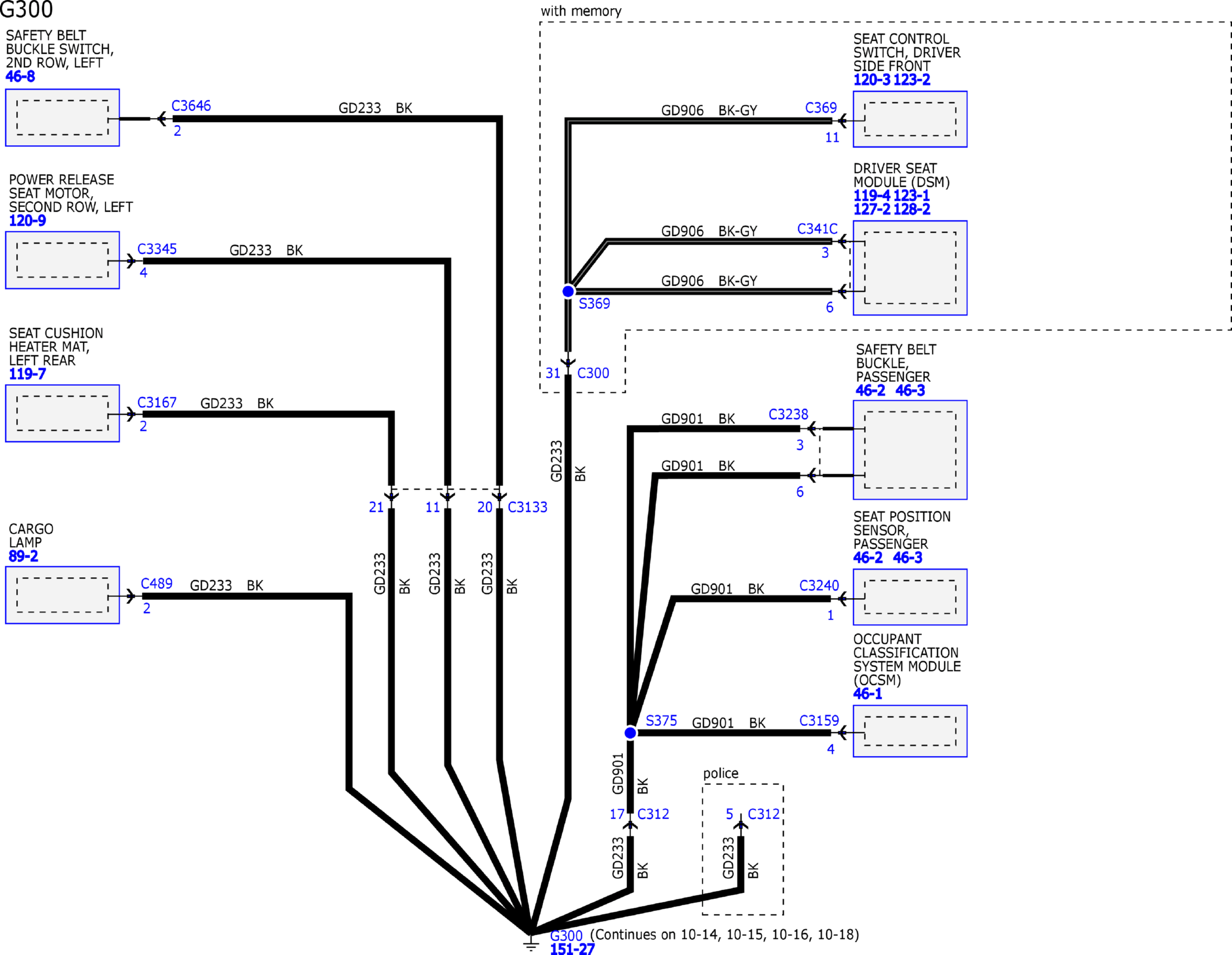

GFDW54884Courtesy of FORD MOTOR COMPANY

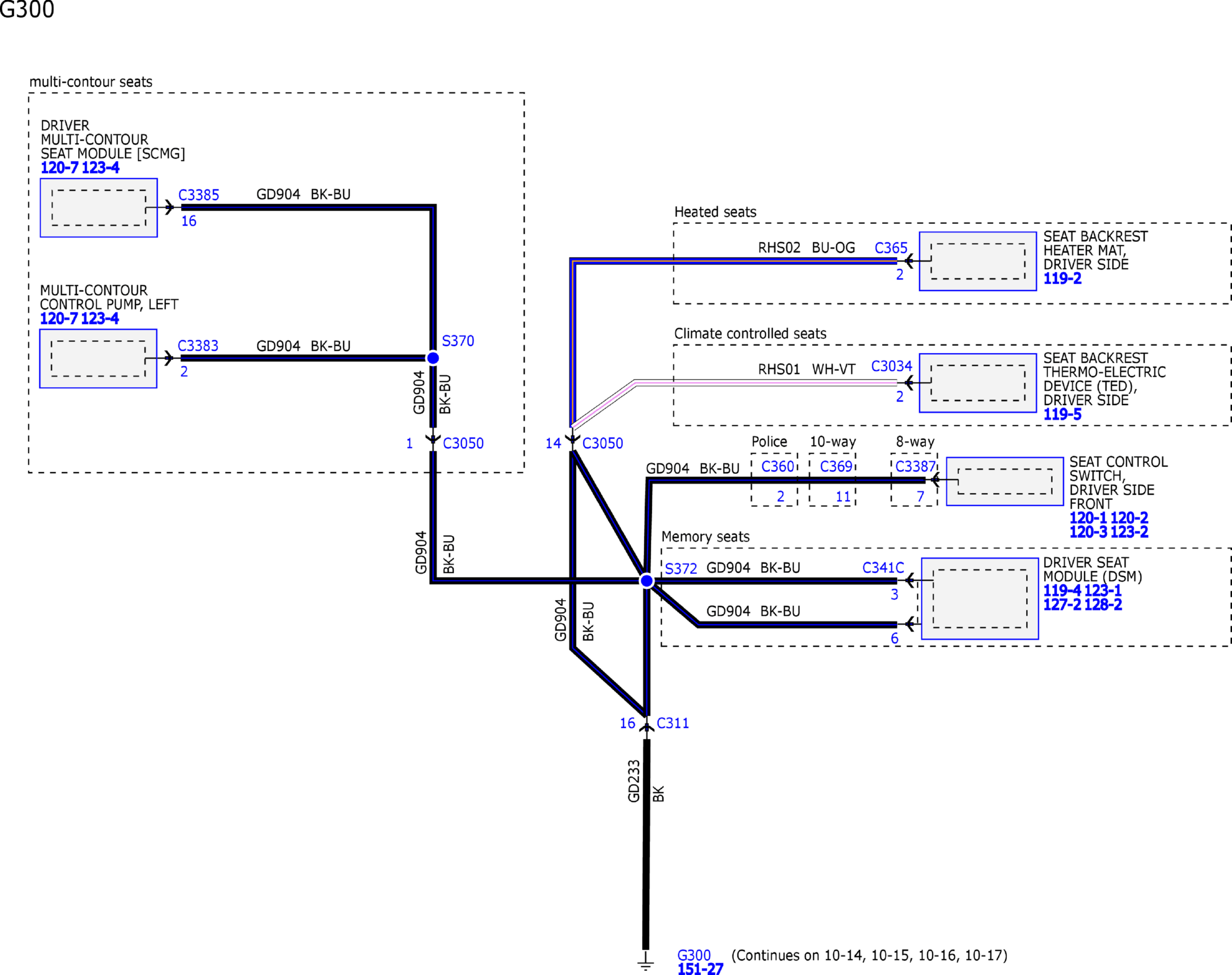

GFDW54885Courtesy of FORD MOTOR COMPANY

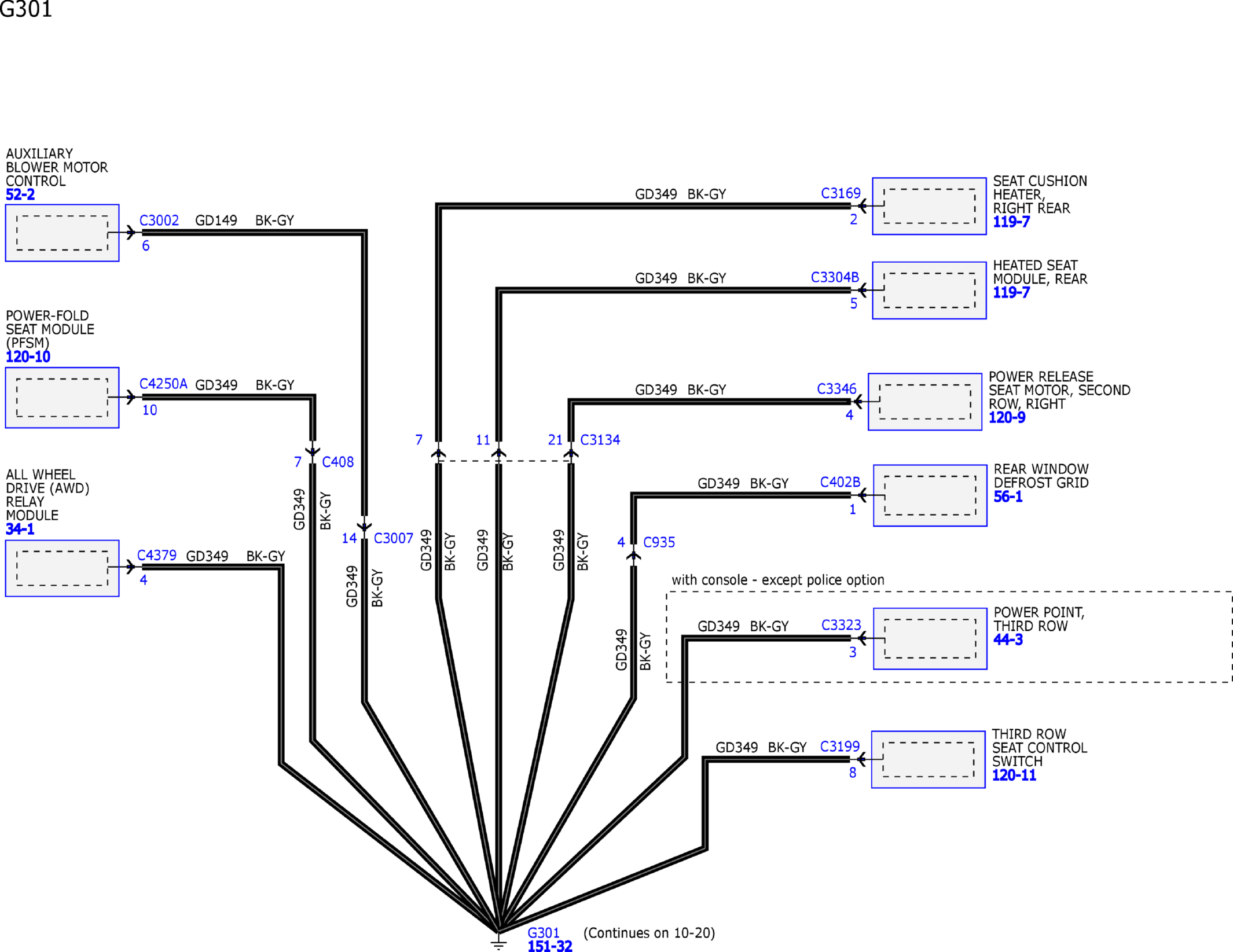

GFDW54886Courtesy of FORD MOTOR COMPANY

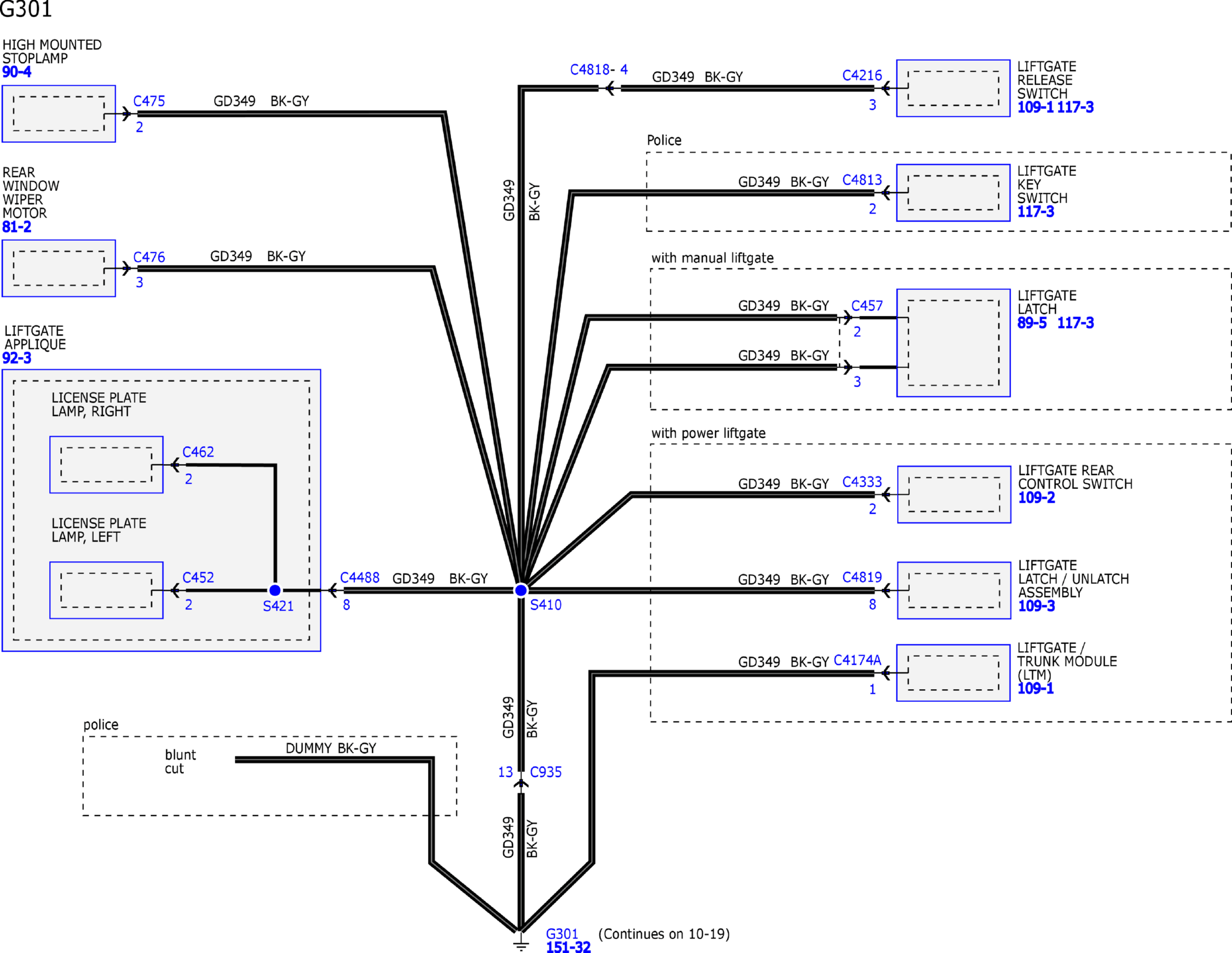

GFDW54887Courtesy of FORD MOTOR COMPANY

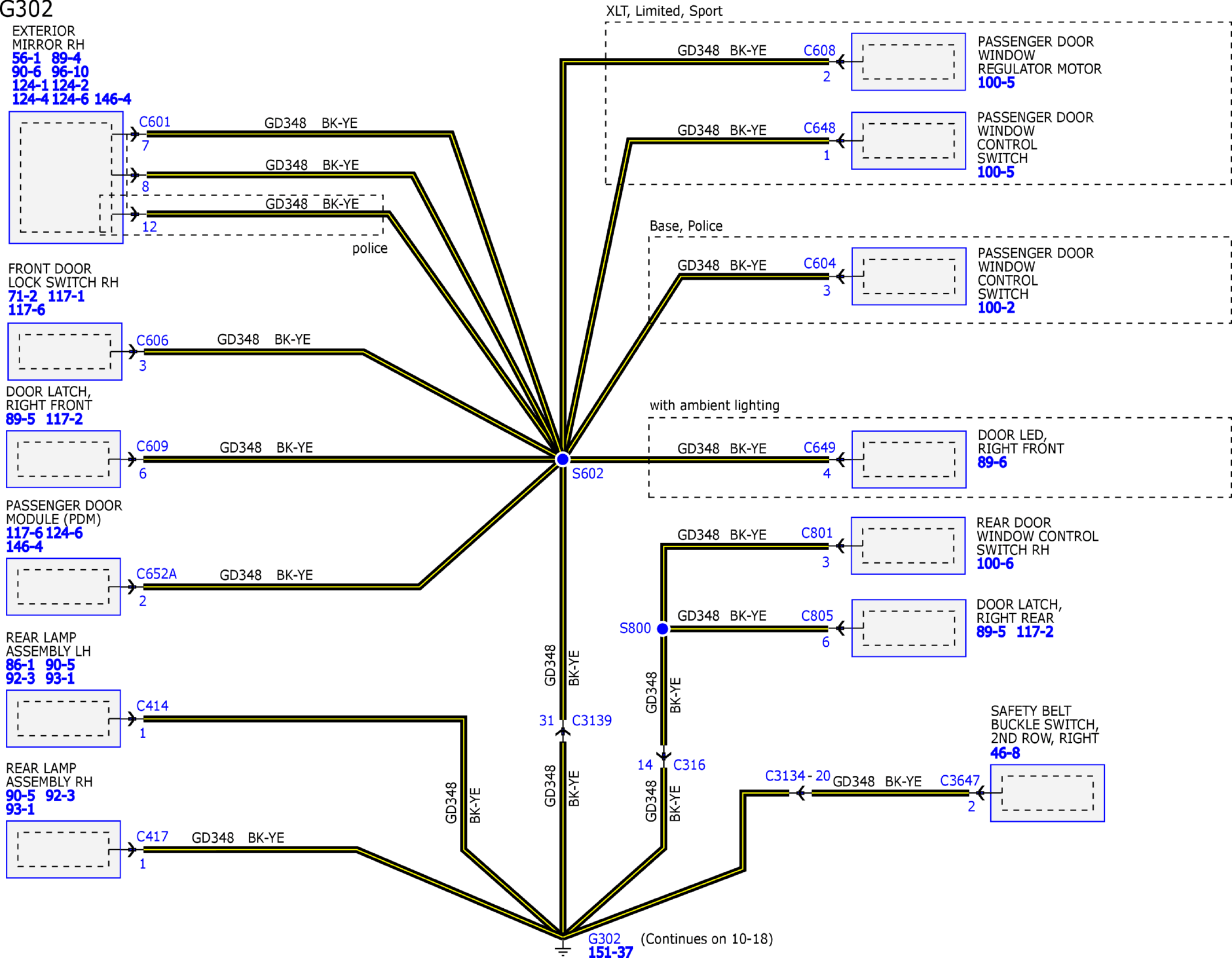

GFDW54888Courtesy of FORD MOTOR COMPANY

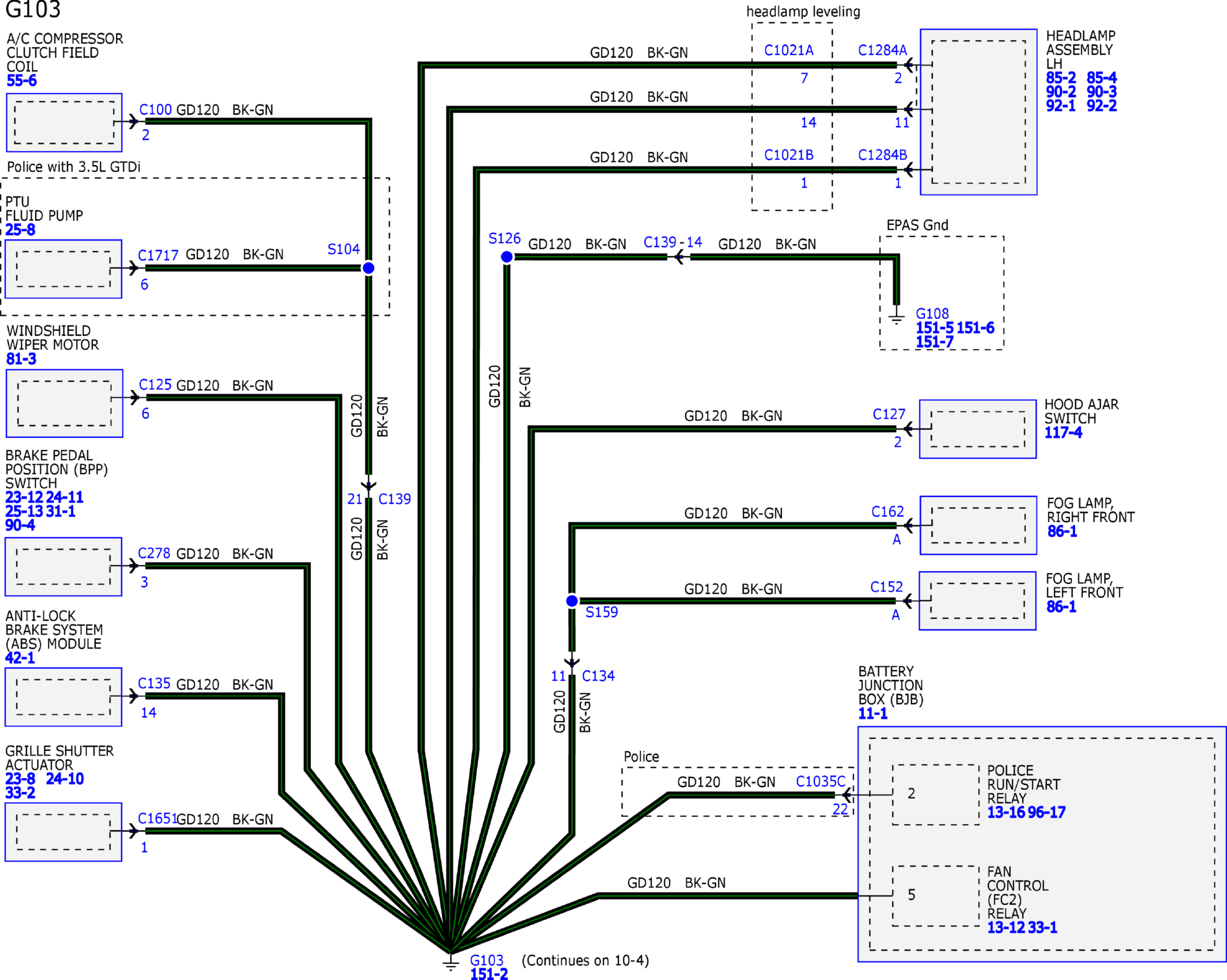

GFDW54889Courtesy of FORD MOTOR COMPANY

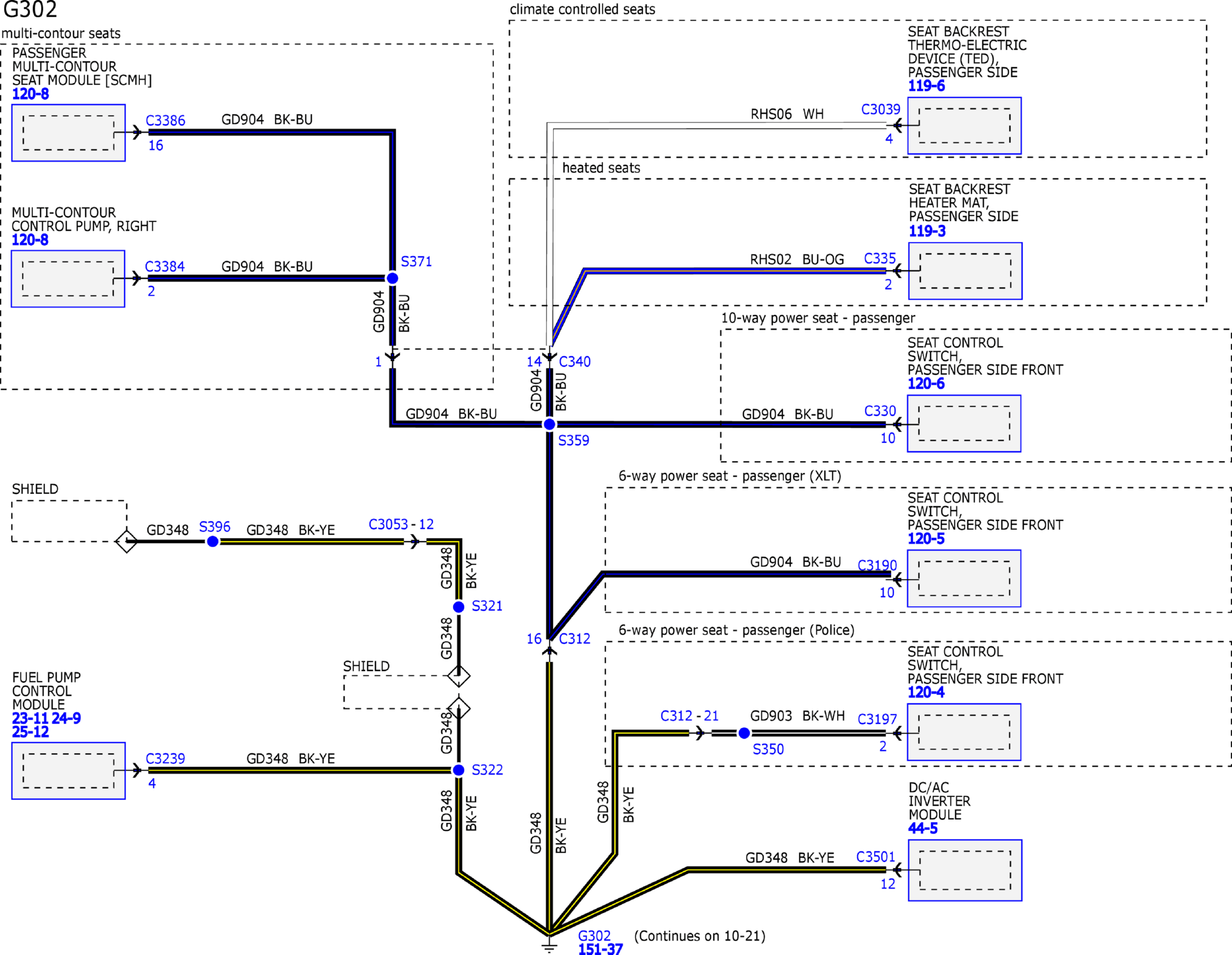

GFDW54890Courtesy of FORD MOTOR COMPANY

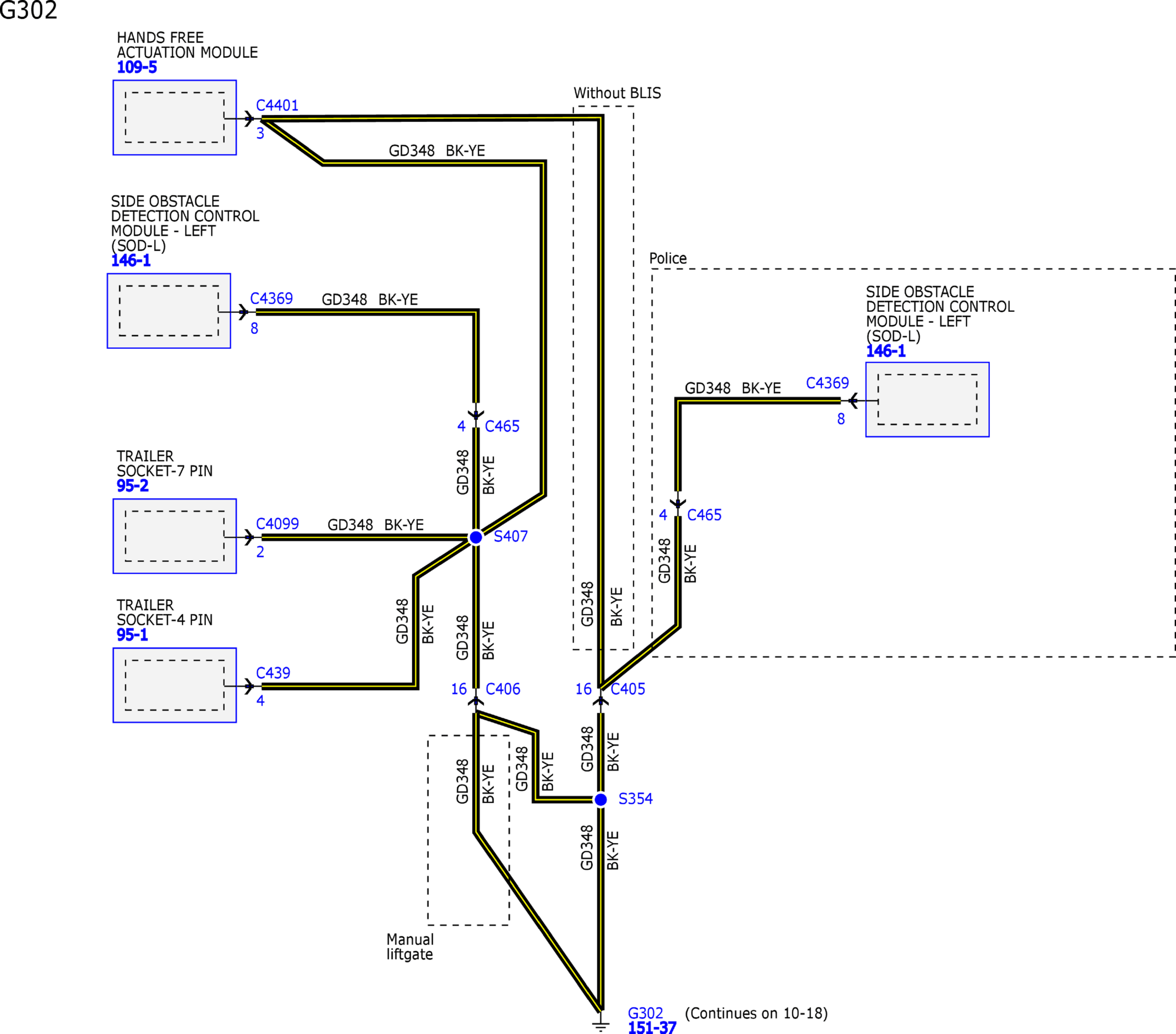

GFDW54891Courtesy of FORD MOTOR COMPANY

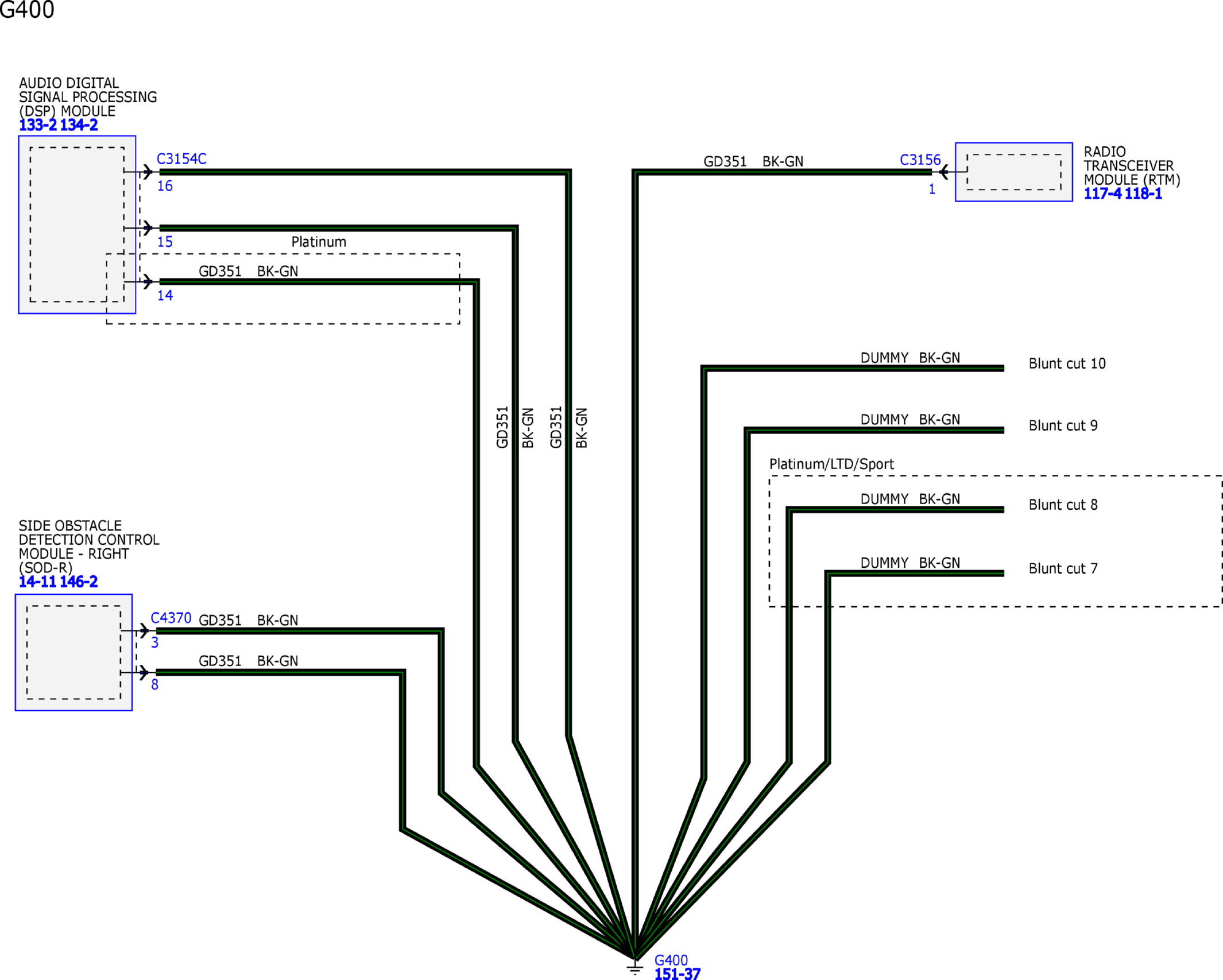

GFDW54892Courtesy of FORD MOTOR COMPANY

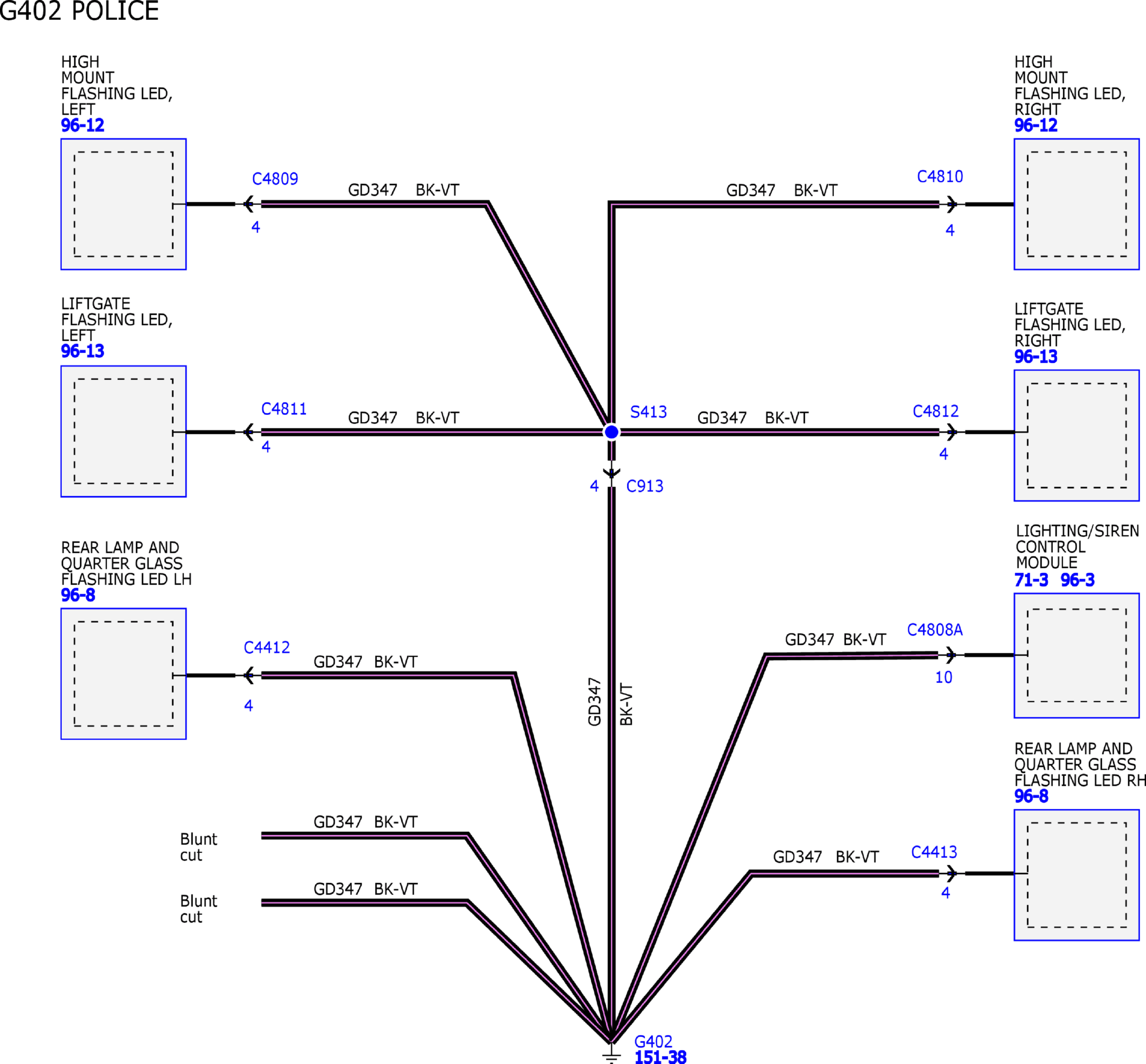

GFDW54893Courtesy of FORD MOTOR COMPANY

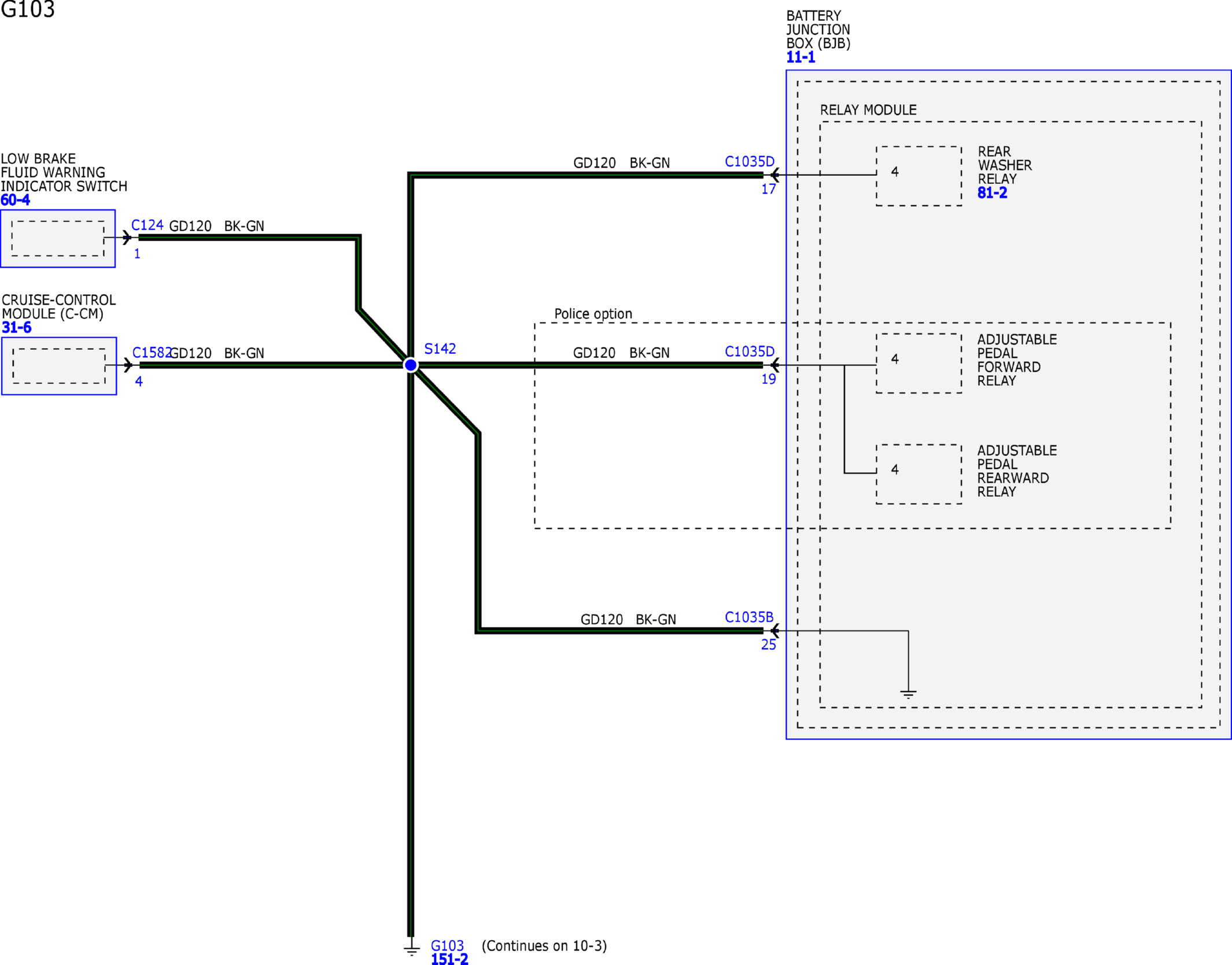

GFDW54894Courtesy of FORD MOTOR COMPANY

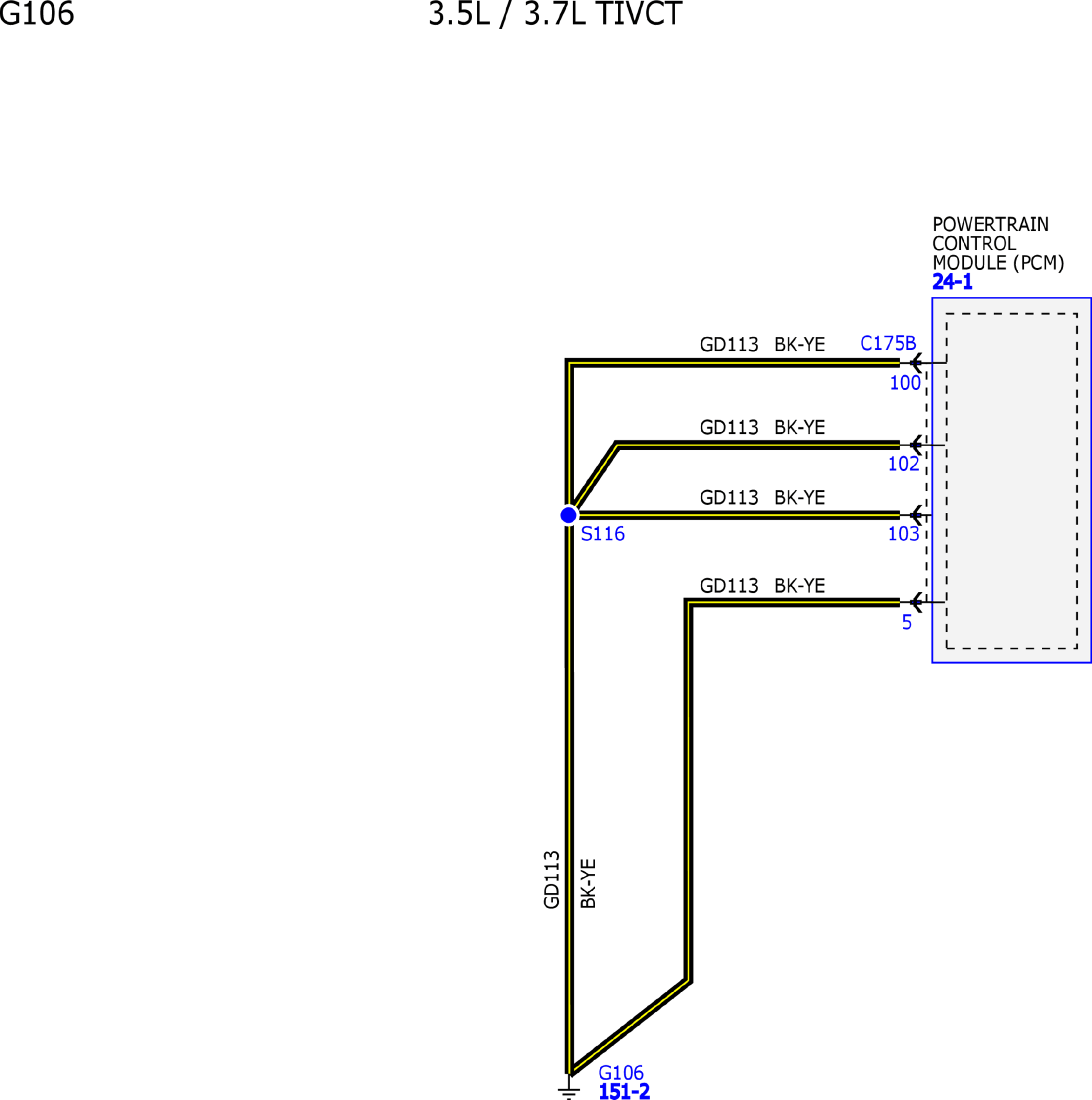

GFDW54895Courtesy of FORD MOTOR COMPANY

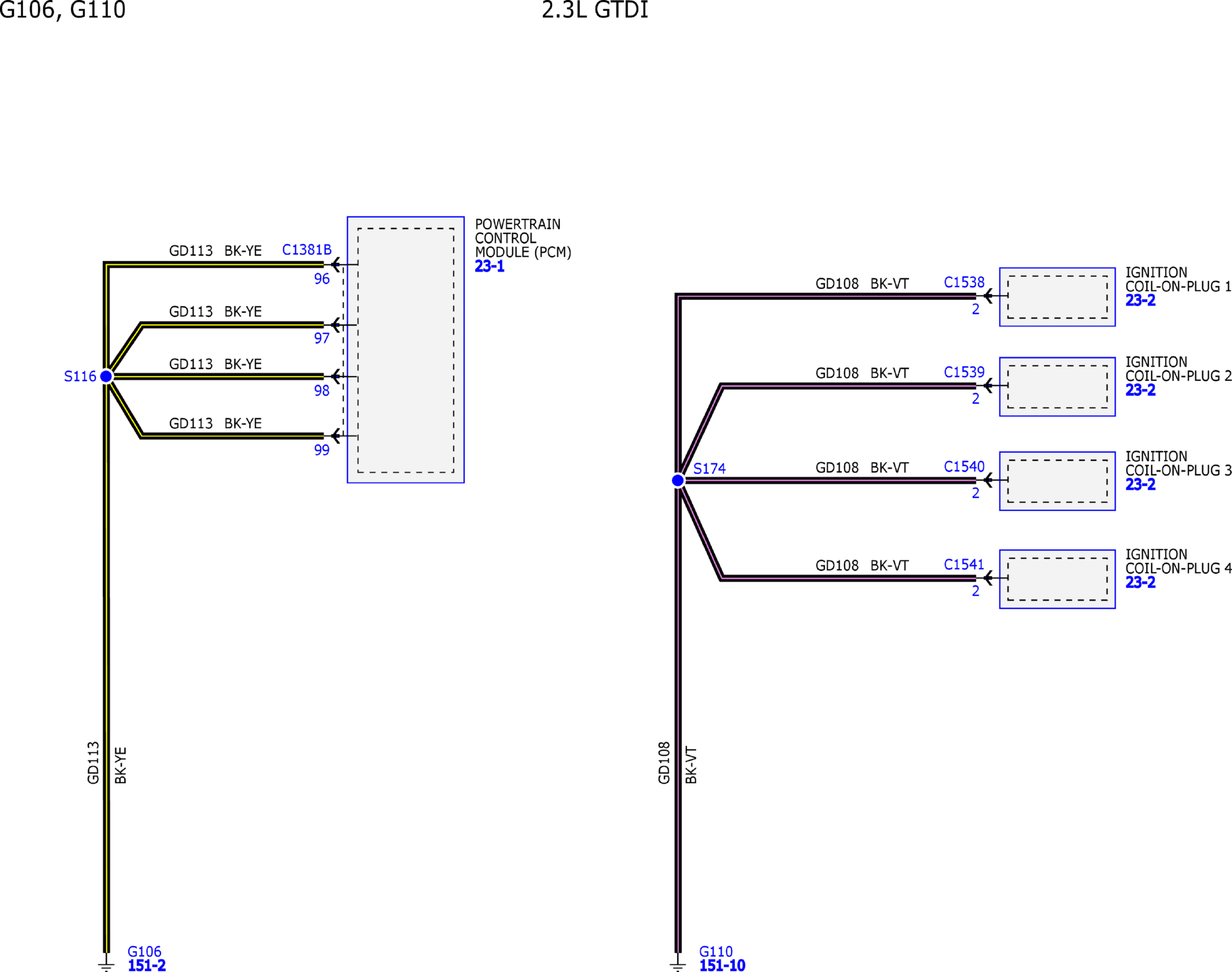

GFDW54896Courtesy of FORD MOTOR COMPANY

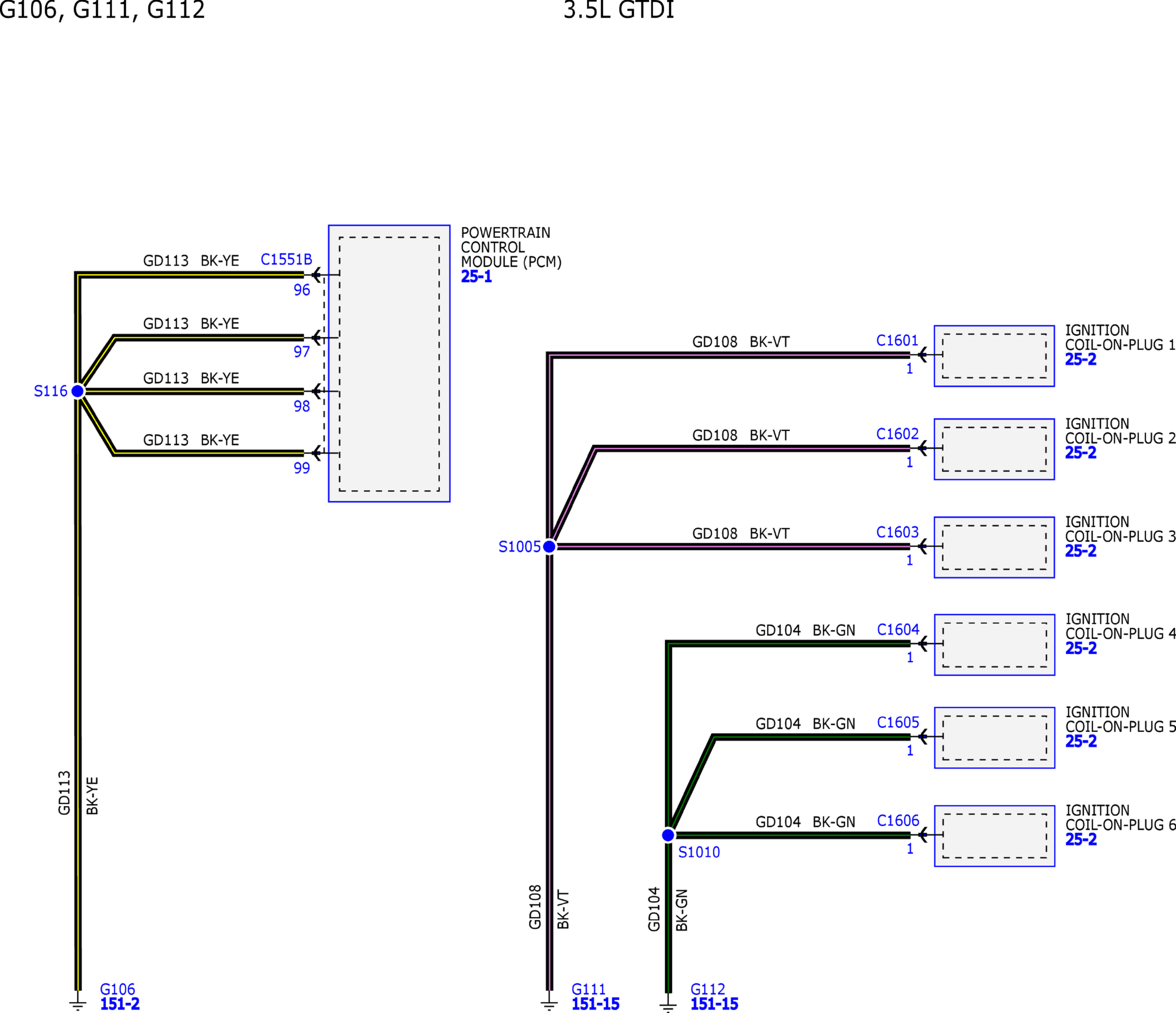

GFDW54897Courtesy of FORD MOTOR COMPANY

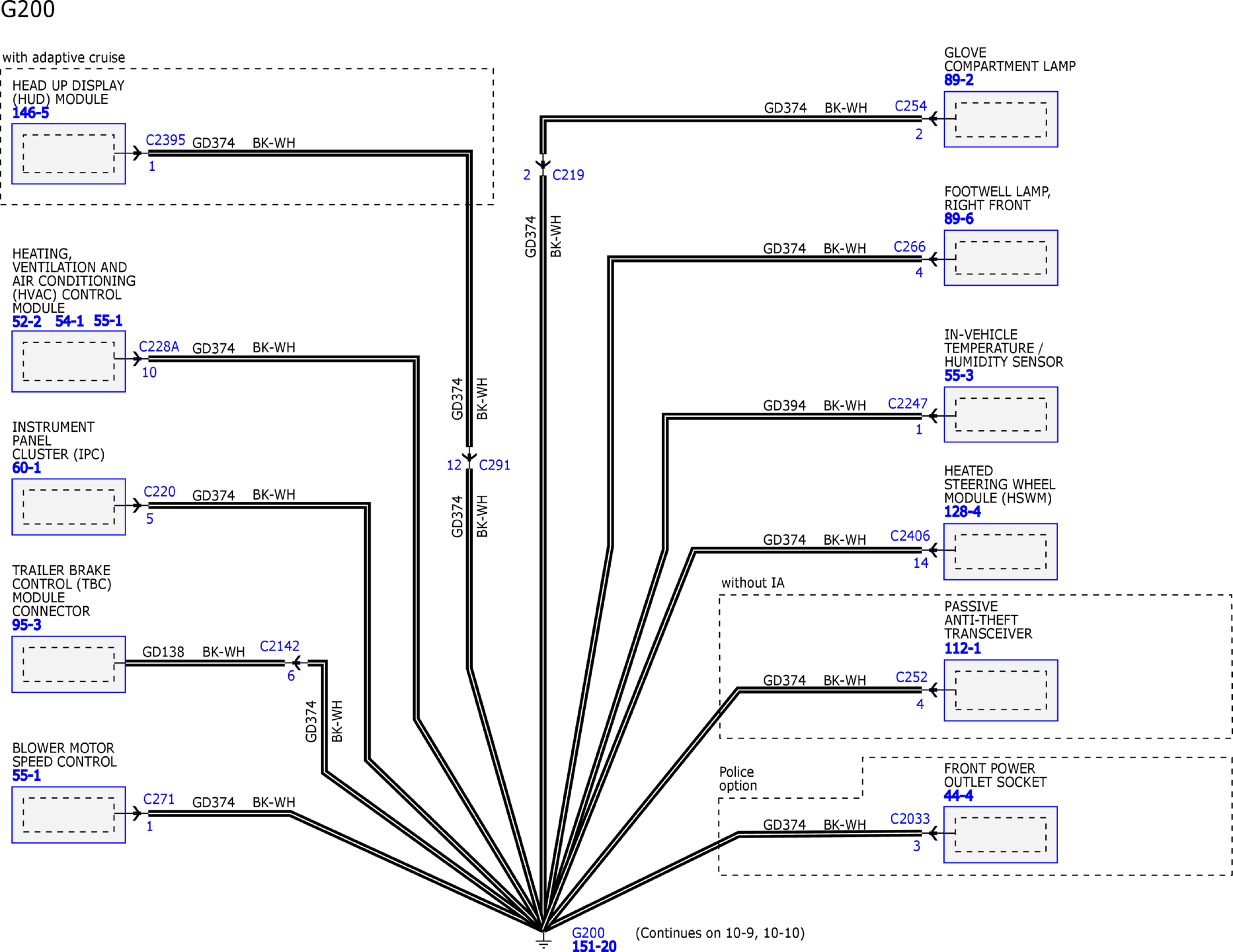

GFDW54898Courtesy of FORD MOTOR COMPANY

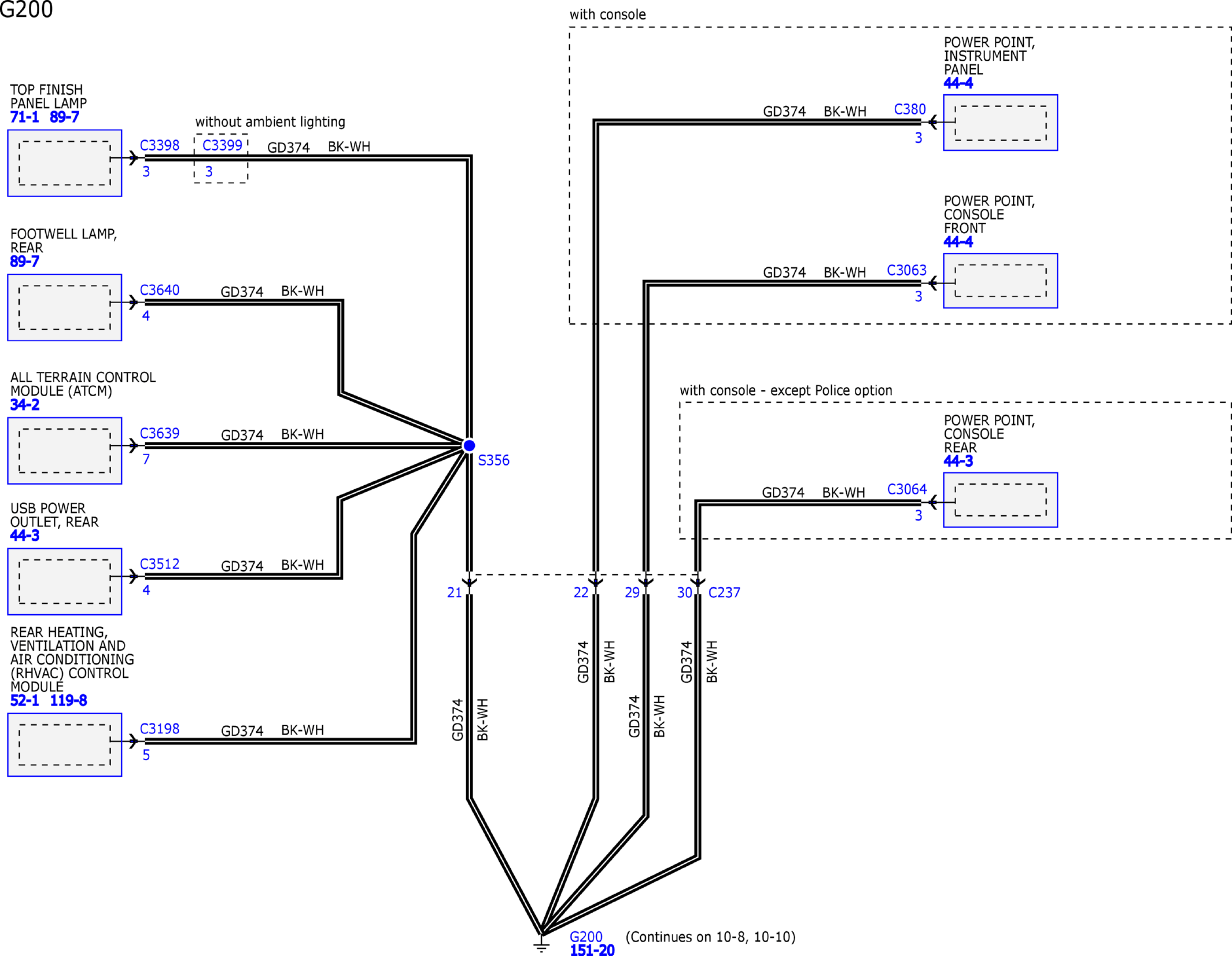

GFDW54899Courtesy of FORD MOTOR COMPANY

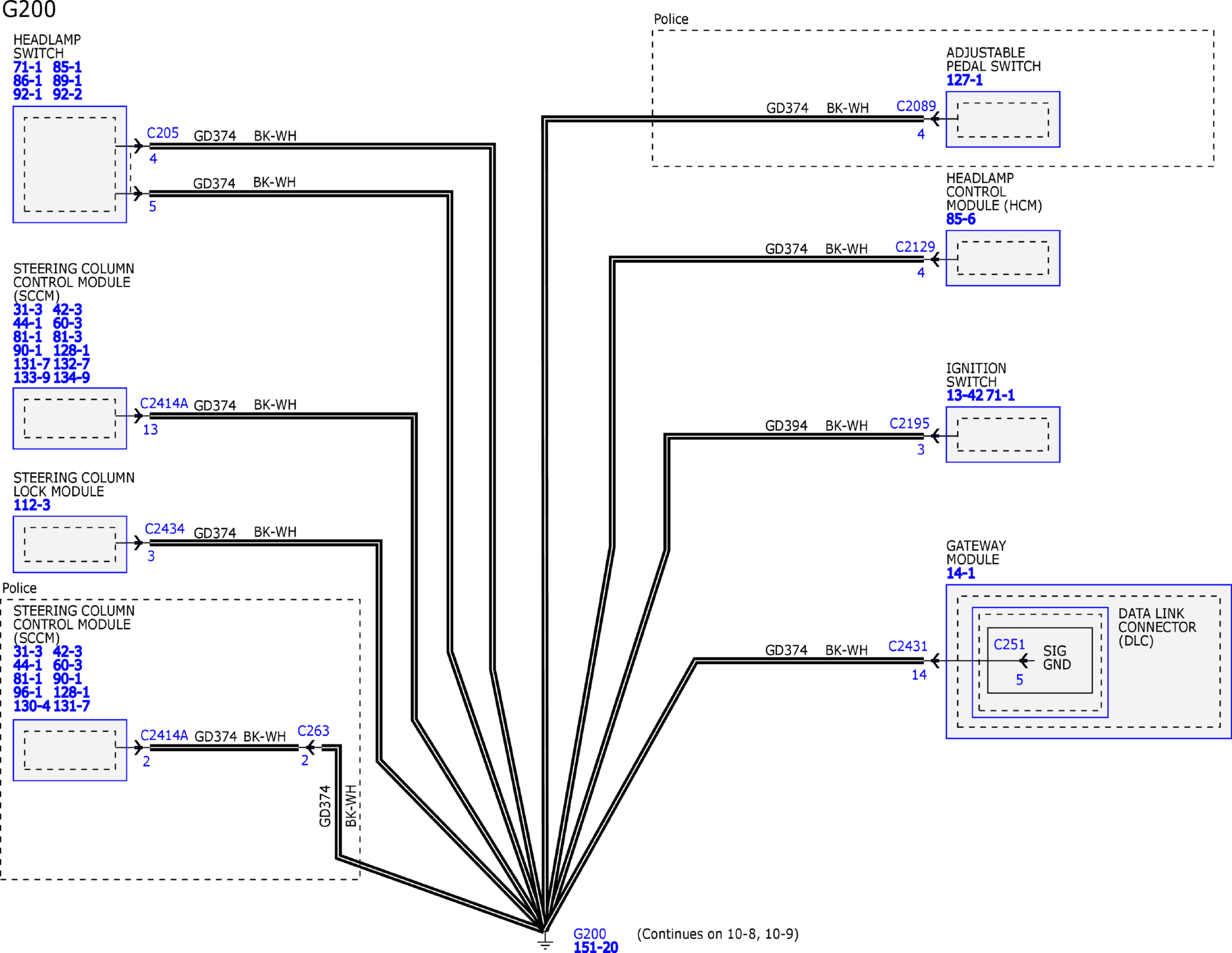

GFDW54900Courtesy of FORD MOTOR COMPANY
