Transfer Shaft: Assembly

1.

Install the park pawl wheel.

GFD124374

Courtesy of FORD MOTOR COMPANY

2.

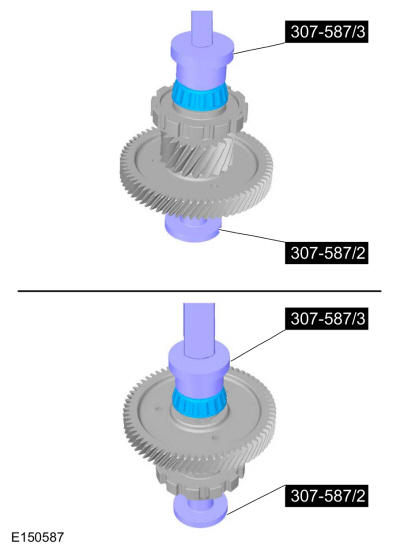

Using the special tool, install the transfer shaft bearings.
Use Special Service Tool: 307-587 Differential bearing installer and guide.

Use the General Equipment: Hydraulic Press

GFD124375

Courtesy of FORD MOTOR COMPANY

3.

Select a new transfer shaft shim. REFER to: Torque Converter Housing .
