Fuel Pump Driver Module (FPDM): Installation

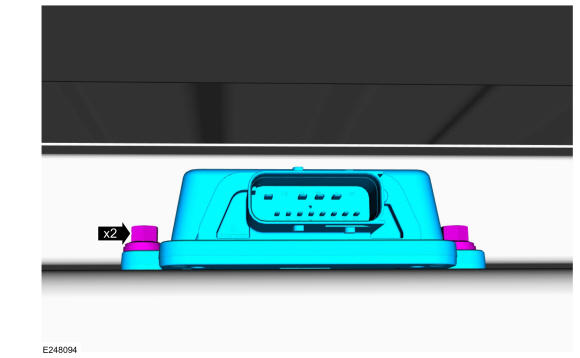

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.

    Torque: 133 lb.in (15 Nm)

    GFD176505Courtesy of FORD MOTOR COMPANY

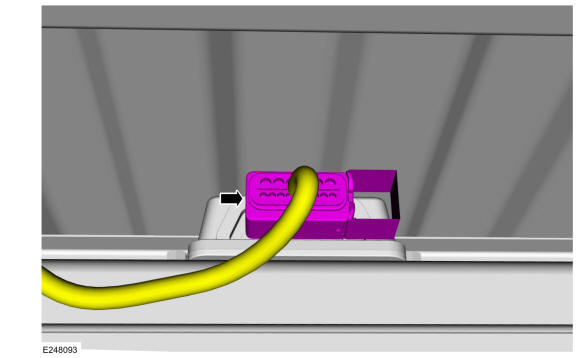

  2. Connect the fuel pump driver module electrical connector.
GFD176504Courtesy of FORD MOTOR COMPANY
