Powertrain Control Module (PCM): Removal

  1. 1.

    NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI (programmable module installation) process must begin with the current PCM installed. If the current PCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the PCM following the on-screen instructions.

  1. 2.

    Remove the bolt and the PCM housing cover.

    Torque: 44 lb.in (5 Nm)

GFD139988Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the PCM electrical connectors, remove the bolt and the PCM.

    Torque: 44 lb.in (5 Nm)

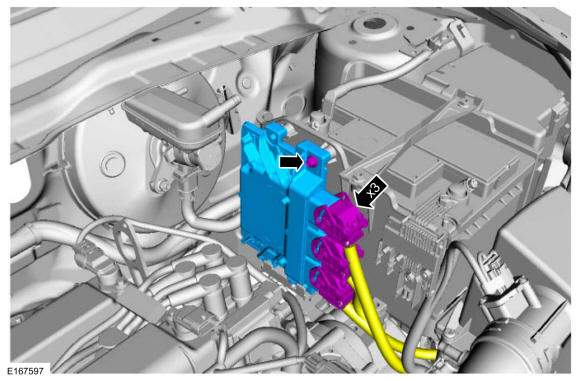

GFD139989Courtesy of FORD MOTOR COMPANY
