Front Control/ Display Interface Module (FCDIM)

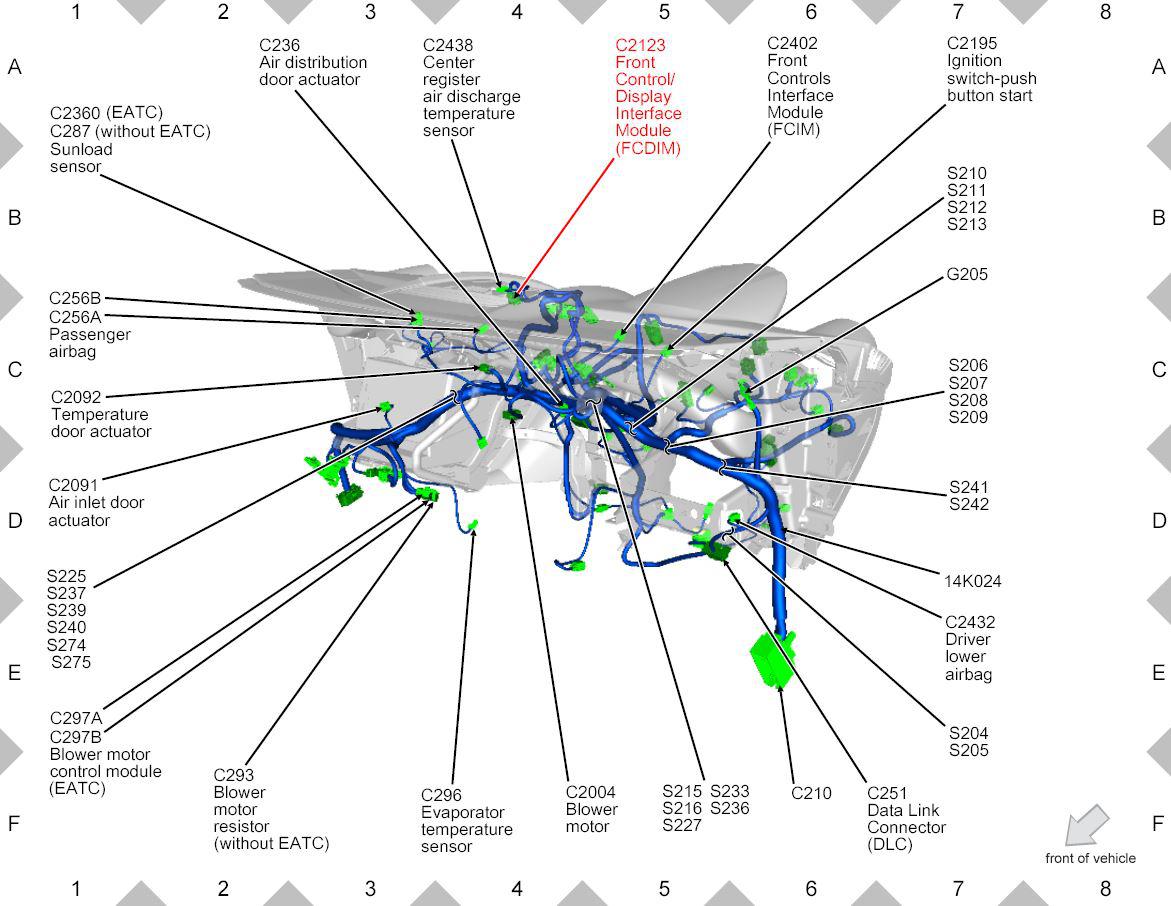

Fig 1: Front Control/ Display Interface Module (FCDIM) Components Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
