Front Controls Interface Module (FCIM)

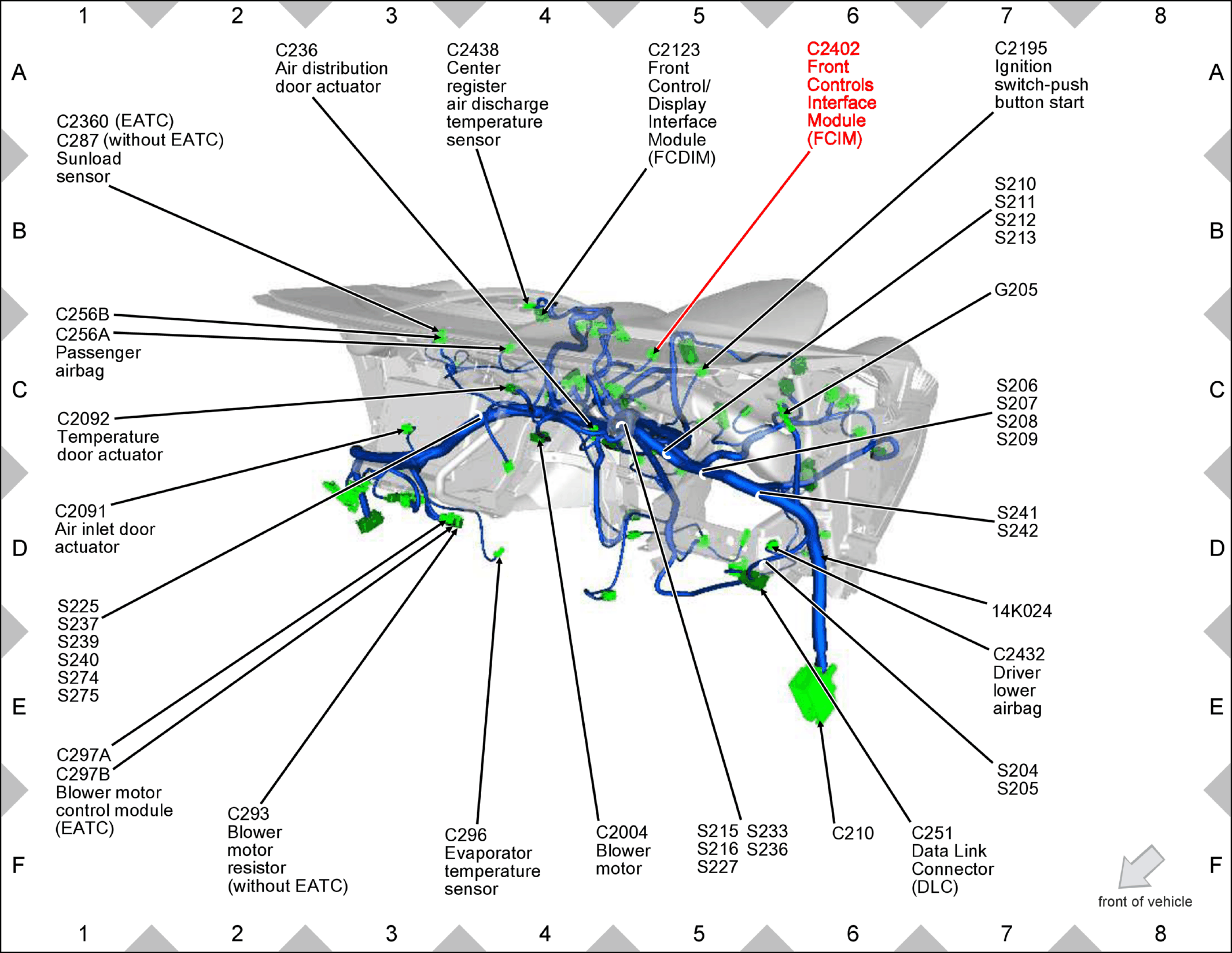

Fig 1: Front Controls Interface Module (FCIM) Components Location
GFDW60330Courtesy of FORD MOTOR COMPANY
