Body Control Module (BCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current BCM installed. If the current BCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

A minimum of 2 RKE transmitter(s) are necessary to complete the configuration. Using the diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

2.

Remove the pin-type retainers and the RH insulation panel.

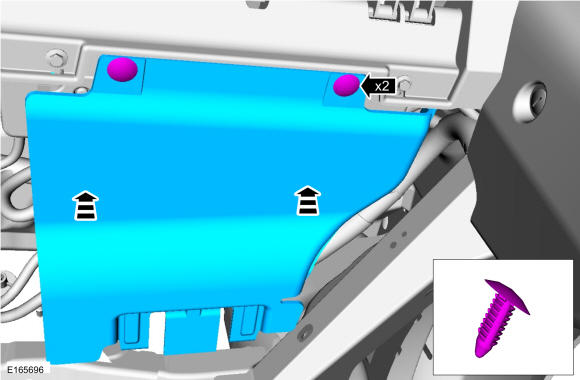

GFD141088

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the electrical connectors, remove the nuts and the BCM.

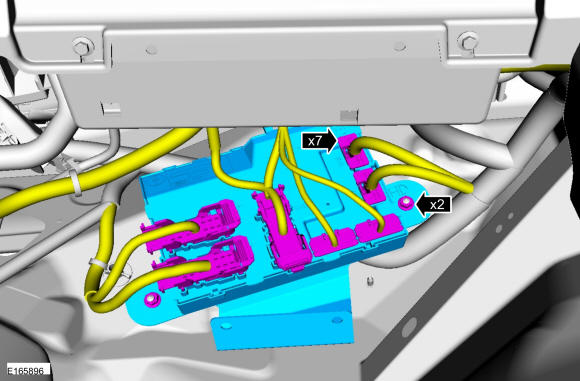

GFD141375

Courtesy of FORD MOTOR COMPANY
