Seat - Exploded View, Second Row

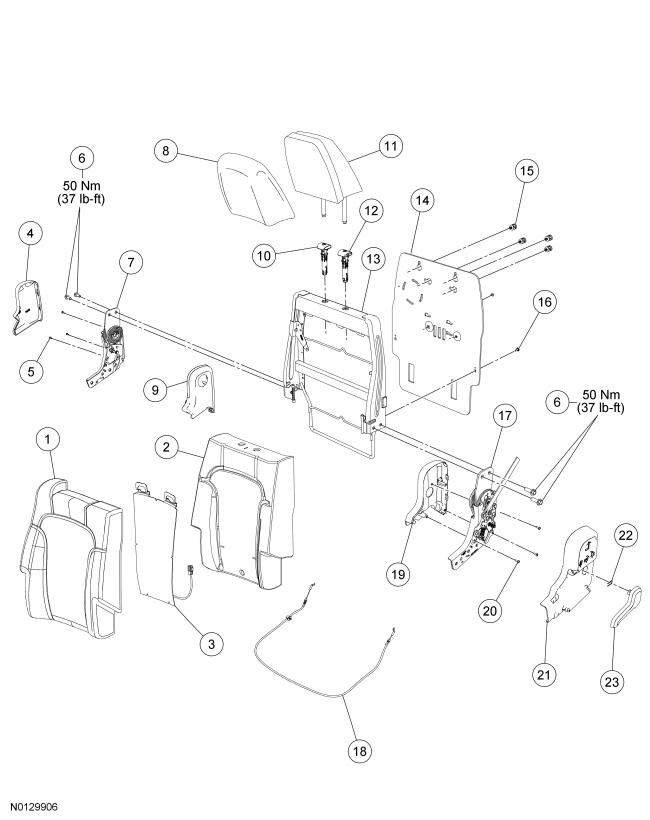

40 Percent Seat Backrest
NOTE:
Without inflatable safety belts shown in illustration, with similar.
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 66600 (RH) 66601 (LH) |
Backrest trim cover |
| 2 | 66800 | Backrest foam pad |
| 3 | - | Backrest heater mat (part of 66800) |
| 4 | 666L75 (RH) 61349 (LH) |
Inboard recliner outer cover |
| 5 | W506943 | Screw (3 required) |
| 6 | W790117 | Recliner-to-backrest bolts |
| 7 | 61382 | Inboard recliner |
| 8 | 501A04 | Head restraint cover |
| 9 | 61348 (RH) 61349 (LH) |
Inboard recliner inner cover |
| 10 | 610A18 | Head restraint guide, non-locking |
| 11 | 611A08 | Head restraint |
| 12 | 610A16 | Head restraint guide, locking |
| 13 | 613A38 | Backrest frame |
| 14 | 40300 | Backrest hard back panel |
| 15 | - | Pin-type retainers (part of 40300) (4 required) |
| 16 | 56910 | Backrest hard back panel-to-backrest frame screws (2 required) |
| 17 | 61383 | Outboard recliner |
| 18 | - | Recliner cable (part of 61382) |
| 19 | 67460 | Outboard recliner inner cover |
| 20 | W506943 | Screw (3 required) |
| 21 | 67460 | Outboard recliner outer cover |
| 22 | W790123 | Spring clip |
| 23 | 617D34 (RH) 617D35 (LH) |
Recliner handle |

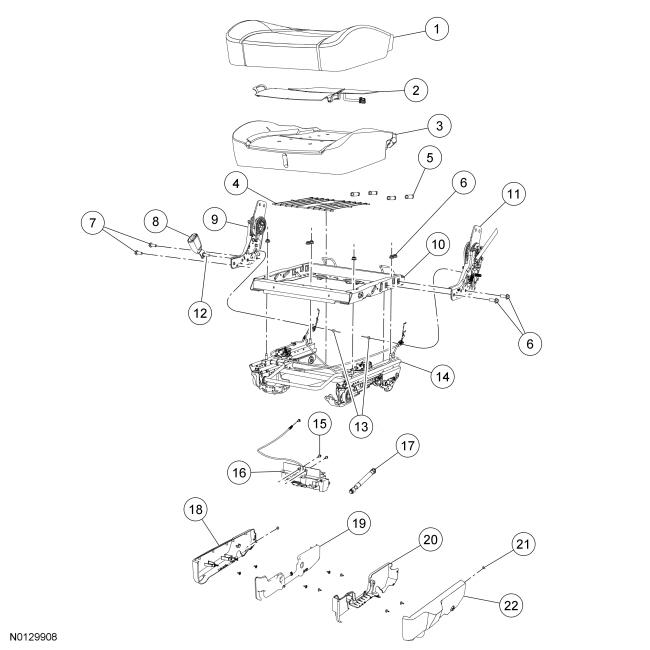

40 Percent Seat Cushion
NOTE:
Without inflatable safety belts shown in illustration, with similar.
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 (RH) 63805 (LH) |
Cushion trim cover |
| 2 | - | Cushion heater mat (part of 63840 (RH)/ 63841 (LH)) |
| 3 | 63840 (RH) 63841 (LH) |
Cushion foam pad |
| 4 | - | Flex mat (part of 63160) |
| 5 | - | Flex mat spring (part of 63160) (4 required) |
| 6 | N802068 | Cushion frame-to-seat track nuts (6 required) |
| 7 | W790117 | Recliner-to-cushion frame bolts |
| 8 | 60044 (RH) 60045 (LH) |
Safety belt buckle |
| 9 | 61382 | Inboard recliner |
| 10 | 63160 | Cushion frame |
| 11 | 61383 | Outboard recliner |
| 12 | W707957 | Safety belt buckle bolt (part of 60044/60045) |
| 13 | W715435 | Rivets |
| 14 | 606A50 (RH) 606A51 (LH) |
Seat track |
| 15 | W506841 | Power-fold seat motor screw (2 required) |
| 16 | 600E22 | Power-fold seat motor |
| 17 | 624B74 | Strut |
| 18 | 63388 | Seat track inboard outer cover |
| 19 | 63386 | Seat track inboard inner cover |
| 20 | 63387 | Seat track outboard inner cover |
| 21 | 56910 | Screw (10 required) |
| 22 | 63389 | Seat track outboard outer cover |

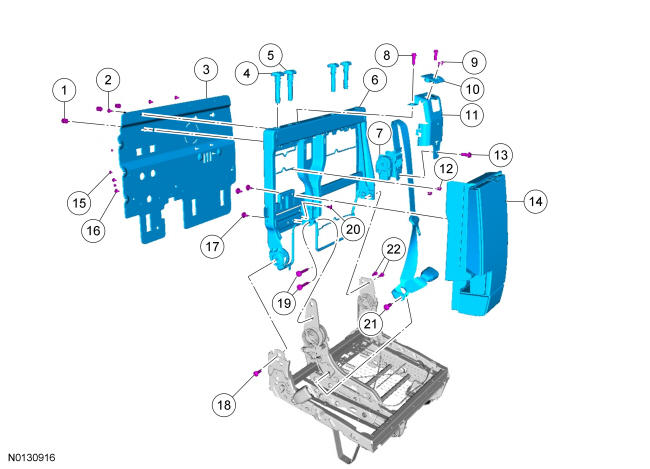

60 Percent Backrest and Attachments
NOTE:
Without inflatable safety belts shown in illustration, with similar.
NOTE:
With armrest shown in illustration, without similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Retainer (part of 60509) (3 required) |
| 2 | W705589 | Pin-type retainer (3 required) |
| 3 | 60509 | Hard back panel |
| 4 | 610A18 | Head restraint guide, non-locking (2 required) |
| 5 | 610A16 | Head restraint guide, locking (2 required) |
| 6 | 613A39 | Backrest frame |
| 7 | 600A38 | Safety belt retractor and safety belt buckle assembly |
| 8 | W790117 | Safety belt retractor guide bolts (2 required) |
| 9 | W711129 | Safety belt guide cover screw (2 required) |
| 10 | 611A70/ 624A08 |
Safety belt guide cover |
| 11 | 613D10 | Safety belt guide |
| 12 | W713010 | Clip (2 required) |
| 13 | W790114 | Safety belt retractor-to-safety belt guide bolt |
| 14 | 67112 | Armrest assembly |
| 15 | 56910 | Hard back panel-to-backrest frame screw (3 required) |
| 16 | W705589 | Pin-type retainer (2 required) |
| 17 | W710709 | Armrest-to-backrest screw (3 required) |
| 18 | W712962 | Backrest pivot bolt |
| 19 | W713744 | Inboard recliner-to-backrest frame bolt |
| 20 | W705589 | Pin-type retainer |
| 21 | N807750 | Safety belt anchor-to-inboard recliner bolt |
| 22 | W790117 | Outboard recliner-to-backrest frame bolt (2 required) |

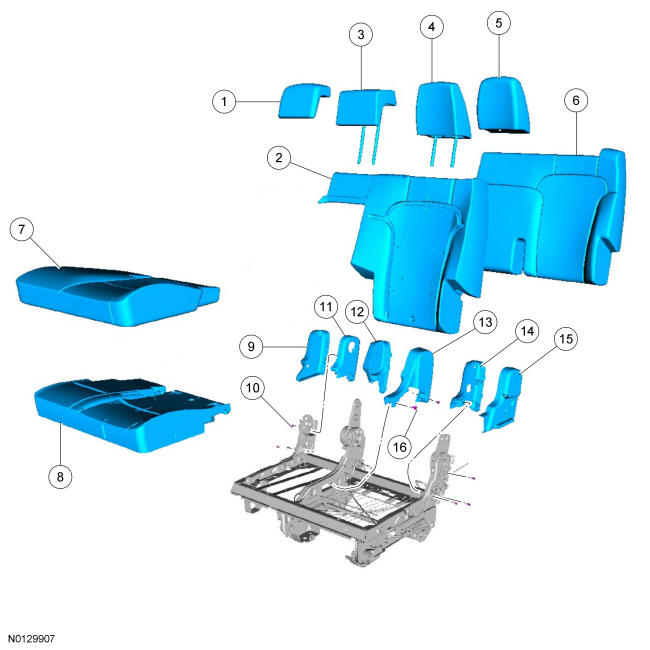

60 Percent Covers, Foams and Trim
NOTE:
Without inflatable safety belts shown in illustration, with similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 501A04 | Head restraint cover, center |
| 2 | 66801 | Backrest foam pad |
| 3 | 611A08 | Head restraint assembly, center |
| 4 | 611A08 | Head restraint assembly, LH |
| 5 | 501A04 | Head restraint cover, LH |
| 6 | 66601 | Backrest cover |
| 7 | 63805 | Cushion cover |
| 8 | 63841 | Cushion foam pad |
| 9 | 61349 | Outboard pivot hinge cover |
| 10 | W506943 | Screw (7 required) |
| 11 | 61349 | Inboard pivot hinge cover |
| 12 | 61348 | Inboard recliner cover |
| 13 | 61348 | Inboard recliner cover |
| 14 | 67460 | Outboard recliner inner cover |
| 15 | 67460 | Outboard recliner outboard cover |
| 16 | W705589 | Pin-type retainer (3 required) |

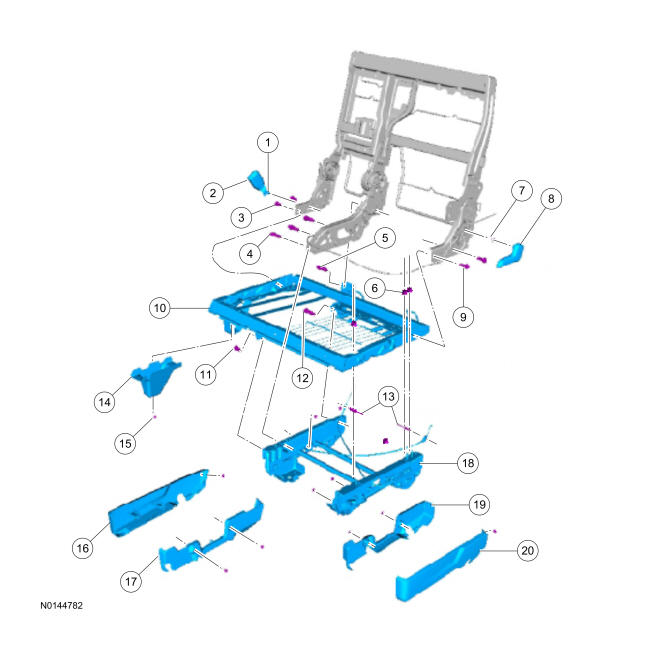

60 Percent Cushion and Attachments
NOTE:
Without inflatable safety belts shown in illustration, with similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt buckle bolt (part of 60044 (RH)/ 60045 (LH)) |
| 2 | 60044 (RH) 60045 (LH) |
Safety belt buckle |
| 3 | W790117 | Hinge assembly-to-cushion frame bolt (2 required) |
| 4 | W790116 | Inboard recliner-to-riser bolt (3 required) |
| 5 | W790116 | Inboard recliner-to-cushion frame yoke bolt |
| 6 | W520112 | Cushion frame-to-riser nut (3 required) |
| 7 | W790123 | Clip |
| 8 | 617D35 | Recline handle |
| 9 | W790117 | Outboard recliner-to-cushion frame bolts |
| 10 | 63161 | Cushion frame |
| 11 | W790117 | Cushion frame-to-riser bolt |
| 12 | W790116 | Cushion frame yoke-to-riser bolt |
| 13 | W715435 | Rivet |
| 14 | 63388 | Stationary foot cover |
| 15 | 56910 | Screws (11 required) |
| 16 | 63388 | Riser RH outer cover |
| 17 | 63386 | Riser RH inner cover |
| 18 | 606A50 | Riser |
| 19 | 63387 | Riser LH inner cover |
| 20 | 63389 | Riser LH outer cover |
