Side Obstacle Detection Control Module: Removal

  1. 1.

    Raise the vehicle on a hoist. REFER to: Jacking and Lifting - Overview

  1. 2.

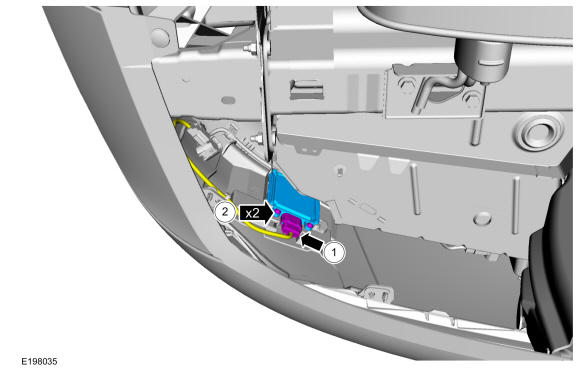

    Remove the SODL or SODR.
    • Disconnect the electrical connector.
    • Remove the screws.
GFD63684Courtesy of FORD MOTOR COMPANY
