Engine Controls - Fuel Charging And Controls - 2.0L DURATEC-He (125KW/170PS) - Mi4 (Except Electric Vehicle)
>>
Removal And Installation
>>
Fuel Pump Driver Module (FPDM)
>>
Installation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump Driver Module (FPDM): Installation
1.
NOTE:
Make sure that the mating surface is clean and free of foreign material.

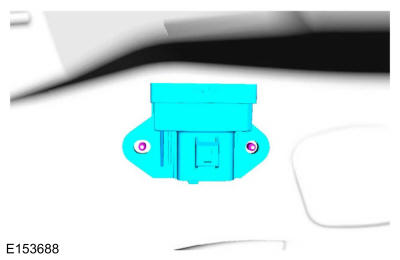

Clean the FPDM mounting surface.
Courtesy of FORD MOTOR COMPANY
2.

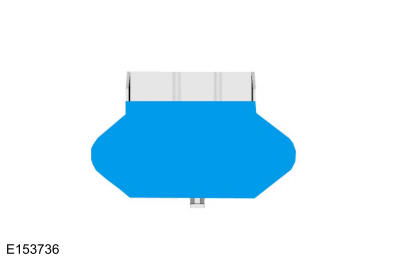

Peel off the protective backing from the new FPDM.
Courtesy of FORD MOTOR COMPANY
3.

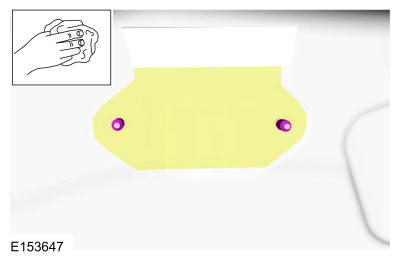

Locate the FPDM over the 2 studs (for location purposes only) and press down firmly.
Courtesy of FORD MOTOR COMPANY
4.
To install, reverse the removal procedure.
Courtesy of FORD MOTOR COMPANY
