Pinpoint Test Dr: Camshaft Position (CMP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

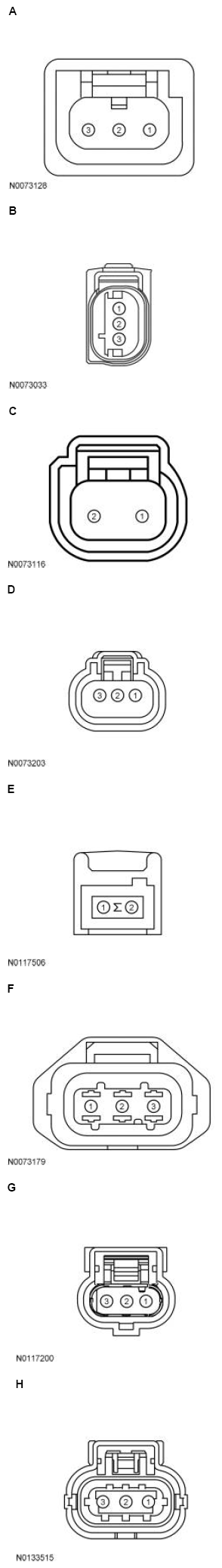

Fig 1: Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector
G11848430Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 2.0L,
Edge 2.0L,
Escape/Kuga 2.0L,
Explorer 2.3L,
Focus 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC,
MKT 2.0L,
MKX 2.0L,
MKZ 2.0L,
Mustang 2.3L,
Taurus 2.0L		 A 1
2
3		 VREF
SIGRTN
CMP11
E-Series 6.2L,
F-Series Super Duty 6.2L		 B 3
2
1		 VBPWR
SIGRTN
CMP11
E-Series 6.8L,
F-650/F-750,
F-Series Super Duty 6.8L,
Flex TiVCT 3.5L,
MKT 3.7L,
Motorhome/Stripped Chassis/Step Van,
Taurus 3.7L		 C 1
2		 SIGRTN
CMP11
EcoSport 2.0L D 1
3
2		 VREF
SIGRTN
CMP11
EcoSport 1.6L E 2
1		 SIGRTN
CMP11
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect		 D 1
3
2		 VBPWR
SIGRTN
CMP11
Escape/Kuga 1.5L,
Fiesta GTDI 1.6L,
Fusion 1.5L		 F 3
1
2		 VREF
SIGRTN
CMP11
F-150 5.0L,
Mustang 5.0L,
Mustang 5.2L		 B 1
3
2		 VBPWR
SIGRTN
CMP11
F-150 GTDI 3.5L G 3
2
1		 VREF
SIGRTN
CMP11
Fiesta TiVCT 1.6L,
Focus 1.0L		 G 1
3
2		 VREF
SIGRTN
CMP11
Fiesta 1.0L,
KA		 H 1
3
2		 VREF
SIGRTN
CMP11
All other vehicles G 3
2
1		 VBPWR
SIGRTN
CMP11

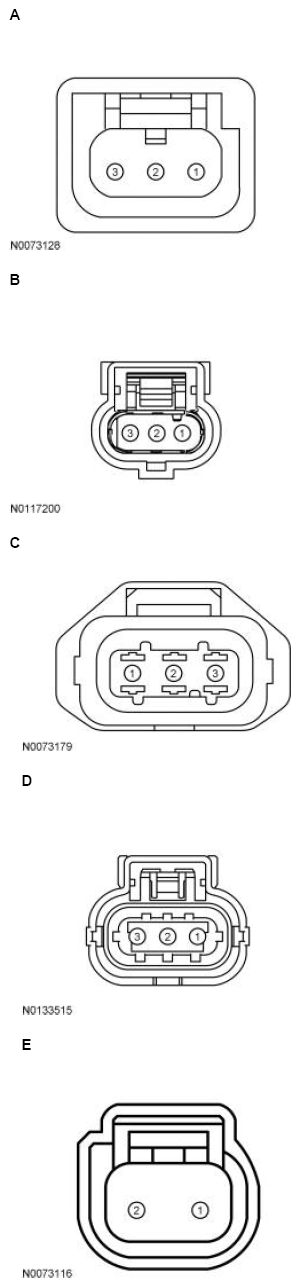

Fig 2: Camshaft Position Bank 1 Sensor 2 (CMP12) Sensor Connector
G11848431Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 2.0L,
Edge 2.0L,
Escape/Kuga 2.0L,
Explorer 2.3L,
Focus 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC,
MKT 2.0L,
MKX 2.0L,
MKZ 2.0L,
Mustang 2.3L,
Taurus 2.0L		 A 1
2
3		 VREF
SIGRTN
CMP12
Continental 2.7L,
Continental 3.0L,
Edge 2.7L,
Expedition,
F-150 2.7L,
Ford GT,
Fusion 2.7L,
MKX 2.7L,
MKZ 3.0L,
Navigator,
Transit 3.5L		 B 3
2
1		 VBPWR
SIGRTN
CMP12
Escape/Kuga 1.5L,
Fiesta GTDI 1.6L,
Fusion 1.5L		 C 3
1
2		 VREF
SIGRTN
CMP12
F-150 GTDI 3.5L B 3
2
1		 VREF
SIGRTN
CMP12
Fiesta TiVCT 1.6L,
Focus 1.0L		 B 1
3
2		 VREF
SIGRTN
CMP12
Fiesta 1.0L,
KA		 D 1
3
2		 VREF
SIGRTN
CMP12
All other vehicles E 1
2		 SIGRTN
CMP12

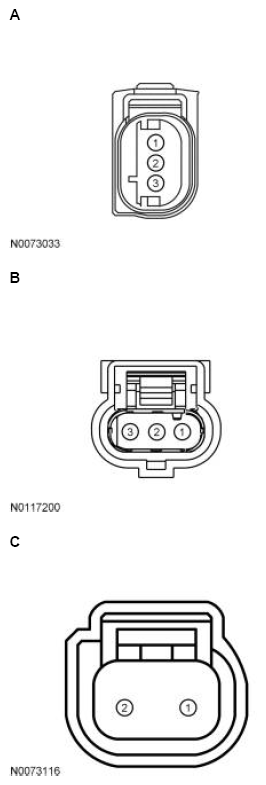

Fig 3: Camshaft Position Bank 2 Sensor 1 (CMP21) Sensor Connector
G11848432Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
E-Series,
F-Series Super Duty		 A 3
2
1		 VBPWR
SIGRTN
CMP21
F-150 5.0L,
Mustang 5.0L,
Mustang 5.2L		 A 1
3
2		 VBPWR
SIGRTN
CMP21
F-150 GTDI 3.5L B 3
2
1		 VREF
SIGRTN
CMP21
Flex TiVCT 3.5L,
MKT 3.7L		 C 1
2		 SIGRTN
CMP21
All other vehicles B 3
2
1		 VBPWR
SIGRTN
CMP21

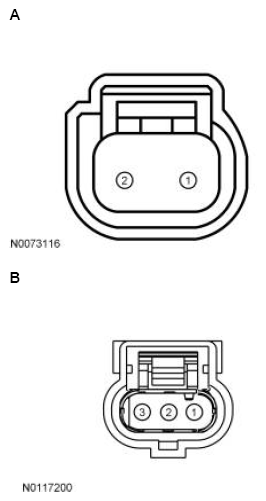

Fig 4: Camshaft Position Bank 2 Sensor 2 (CMP22) Sensor Connector
G11848433Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 3.7L,
Edge 3.5L,
Explorer,
F-150 5.0L,
F-150 TiVCT 3.5L,
Flex,
MKT,
MKX 3.7L,
Mustang,
Taurus,
Transit 3.7L		 A 1
2		 SIGRTN
CMP22
F-150 GTDI 3.5L B 2
1		 SIGRTN
CMP22
All other vehicles B 3
2
1		 VBPWR
SIGRTN
CMP22

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle Connector Pin Circuit
Continental 2.7L,
Continental 3.0L		 198 PIN E22
E54
E28
E53		 VBPWR
CMP12
CMP11
SIGRTN
Continental 3.7L 198 PIN E17
E41
E42
E55
E56
E40, E49		 VBPWR
CMP22
CMP21
CMP12
CMP11
SIGRTN
E-Series 6.2L,
F-Series Super Duty 6.2L		 198 PIN E17
E42
E56
E49		 VBPWR
CMP21
CMP11
SIGRTN
E-Series 6.8L 198 PIN E55
E54		 CMP11
SIGRTN
EcoSport 2.0L Manual Transmission 80 PIN E57
E64
E78		 VREF
CMP11
SIGRTN
EcoSport 2.0L Automatic Transmission 128 PIN T13
T21
T29		 VREF
CMP11
SIGRTN
EcoSport 1.6L 80 PIN E64
E57		 CMP11
SIGRTN
Edge 2.7L,
Expedition,
F-150 2.7L,
Ford GT,
Fusion 2.7L,
MKX 2.7L,
MKZ 3.0L,
Navigator,
Transit 3.5L		 198 PIN E22
E70
E26
E54
E28
E53		 VBPWR
CMP22
CMP21
CMP12
CMP11
SIGRTN
Edge 3.5L,
Explorer TiVCT 3.5L,
Explorer 3.7L,
F-150 TiVCT 3.5L,
F-150 5.0L,
Flex TiVCT 3.5L,
MKT 3.7L,
MKX 3.7L,
Mustang 3.7L,
Mustang 5.0L,
Mustang 5.2L,
Taurus TiVCT 3.5L,
Taurus 3.7L,
Transit 3.7L		 198 PIN E17
E41
E42
E55
E56
E40, E49, E54		 VBPWR
CMP22
CMP21
CMP12
CMP11
SIGRTN
Escape/Kuga 1.5L 198 PIN E11
E22
E23
E29		 VREF
CMP12
CMP11
SIGRTN
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect		 198 PIN E17
E45
E35		 VBPWR
CMP11
SIGRTN
Explorer GTDI 3.5L,
Flex GTDI 3.5L,
MKT 3.5L,
Taurus GTDI 3.5L		 198 PIN E22
E26
E28
E53		 VBPWR
CMP21
CMP11
SIGRTN
F-150 GTDI 3.5L 198 PIN E3
E69
E26
E54
E40
E29		 VREF
CMP22
CMP21
CMP12
CMP11
SIGRTN
F-650/F-750 198 PIN E54
E55		 CMP11
SIGRTN
F-Series Super Duty 6.8L,
Motorhome/Stripped Chassis/Step Van		 198 PIN E46
E29		 CMP11
SIGRTN
Fiesta GTDI 1.6L,
Fiesta 1.0L		 198 PIN E7
E37
E36
E20		 VREF
CMP12
CMP11
SIGRTN
Fiesta TiVCT 1.6L 128 PIN T13
T19
T21
T27, T29		 VREF
CMP12
CMP11
SIGRTN
Focus GDI 2.0L 154 PIN E15, E16
E79
E80
E44, E47		 VREF
CMP12
CMP11
SIGRTN
KA 128 PIN T28, T30
T11
T12
T21, T22		 VREF
CMP12
CMP11
SIGRTN
All other vehicles 198 PIN E6
E54
E28
E53		 VREF
CMP12
CMP11
SIGRTN
