Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location

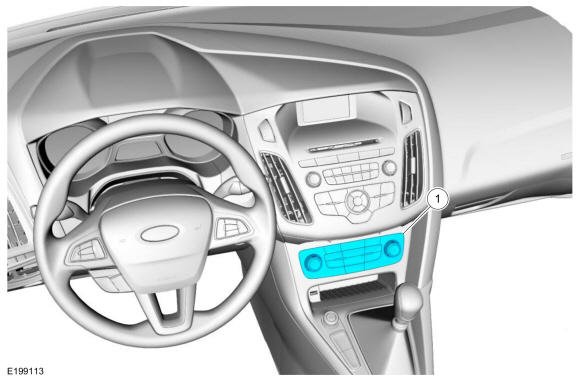

| Item | Description |
|---|---|
| 1 | HVAC Module |

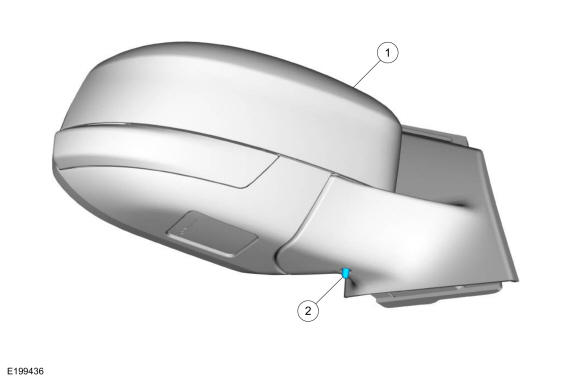

| Item | Description |
|---|---|
| 1 | RH Exterior Mirror |
| 2 | Ambient Air Temperature Sensor |

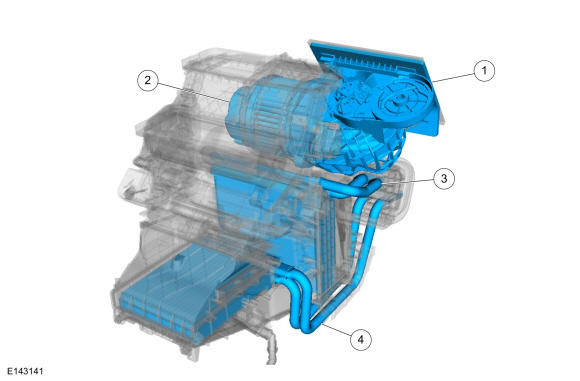

| Item | Description |
|---|---|
| 1 | Air Inlet Duct |
| 2 | Blower Motor |
| 3 | Evaporator |
| 4 | Heater Core |

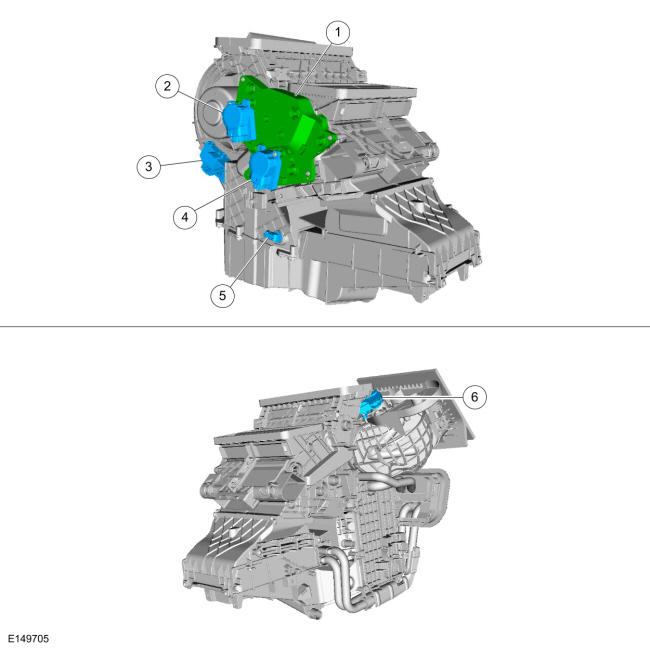

| Item | Description |
|---|---|
| 1 | Actuating Assembly |
| 2 | Air Distribution Door Actuator |
| 3 | Blower Motor Resistor |
| 4 | Temperature Door Actuator |
| 5 | Evaporator Temperature Sensor |
| 6 | Air Inlet Door Actuator |

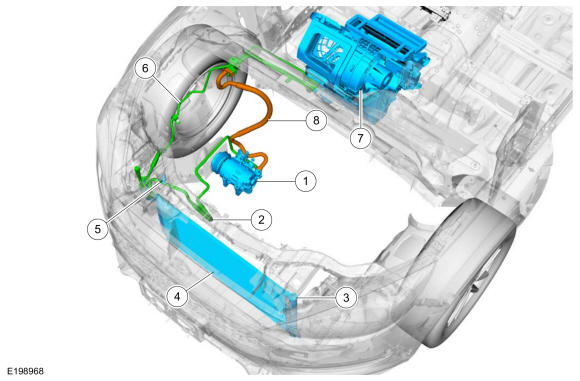

1.0L EcoBoost
| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | Receiver Drier |
| 3 | Condenser |
| 4 | A/C Pressure Transducer |
| 5 | Condenser Outlet Line |
| 6 | Thermostatic Expansion Valve (TXV) Manifold and Tube Assembly |
| 7 | Heater Core and Evaporator Core Housing |
| 8 | A/C Compressor Inlet Line |
| 9 | A/C Compressor Outlet Line |

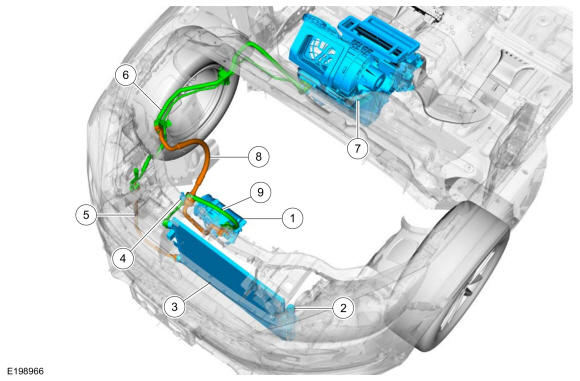

2.0L Duratec
| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | A/C Compressor Outlet Line |
| 3 | Receiver Drier (with serviceable Receiver Drier Element) |
| 4 | Condenser |
| 5 | A/C Pressure Transducer |
| 6 | Thermostatic Expansion Valve (TXV) Manifold and Tube Assembly |
| 7 | Heater Core and Evaporator Core Housing |
| 8 | A/C Compressor Inlet Line |
