Front Controls Interface Module (FCIM) Components Location

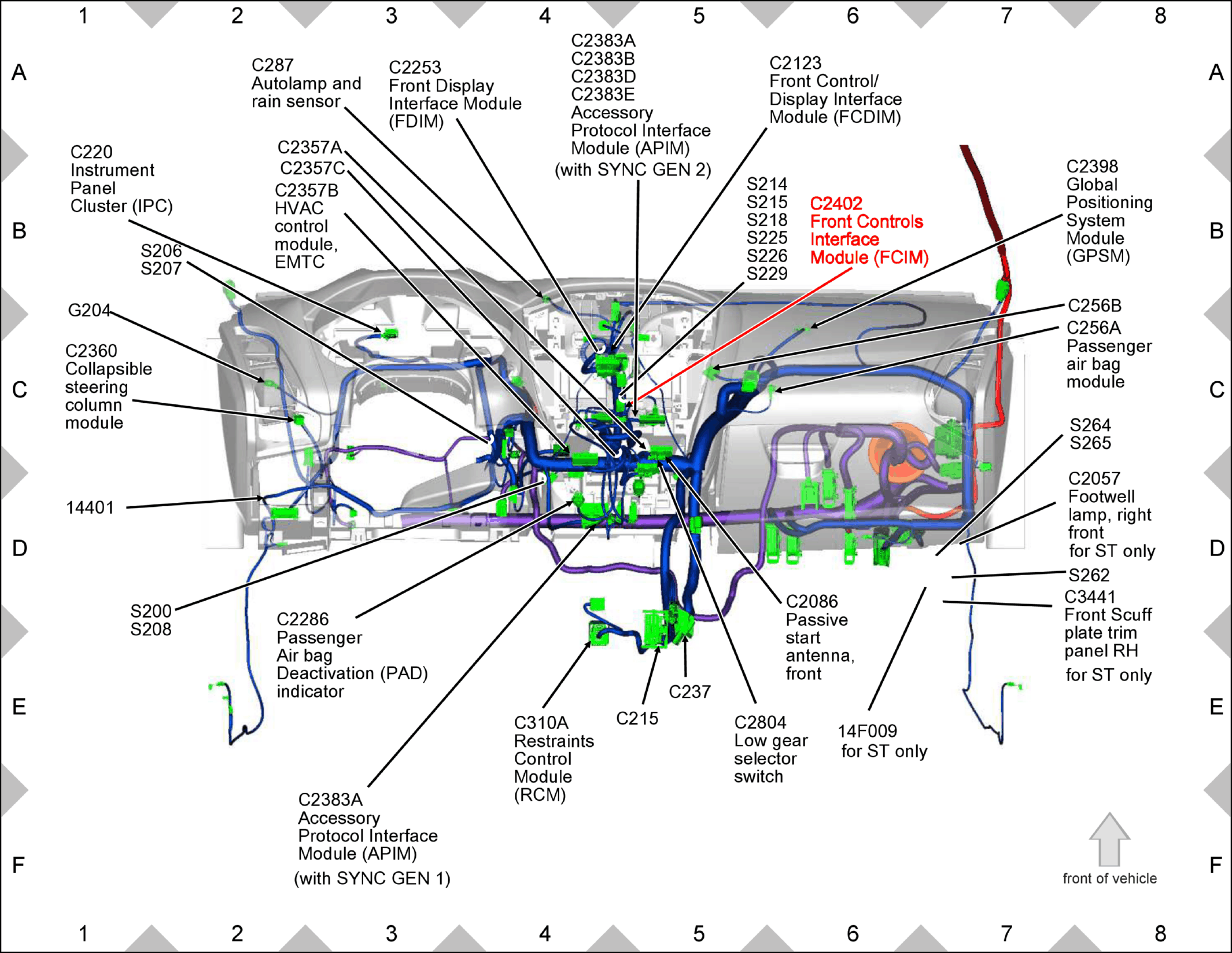

Fig 1: Front Controls Interface Module (FCIM) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
