Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location
WARNING: This page is about a different variant/trim than selected.

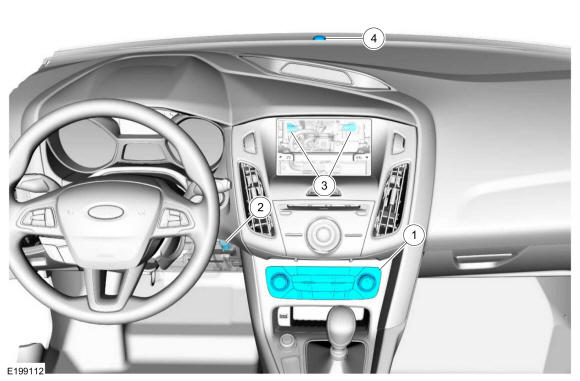

| Item | Description |
|---|---|
| 1 | HVAC control module |
| 2 | In-vehicle temperature and humidity sensor |
| 3 | Center register air discharge temperature sensors |
| 4 | Sunload sensor |

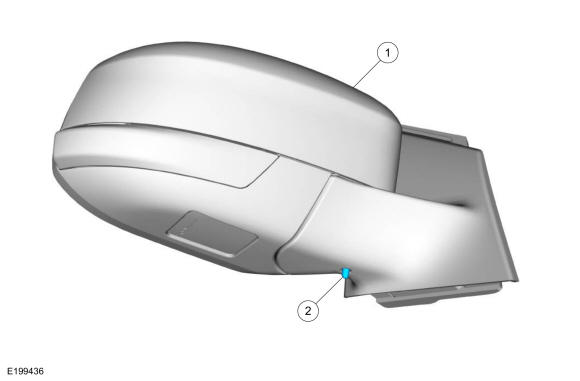

| Item | Description |
|---|---|
| 1 | RH exterior mirror |
| 2 | Ambient Air Temperature (AAT) sensor |

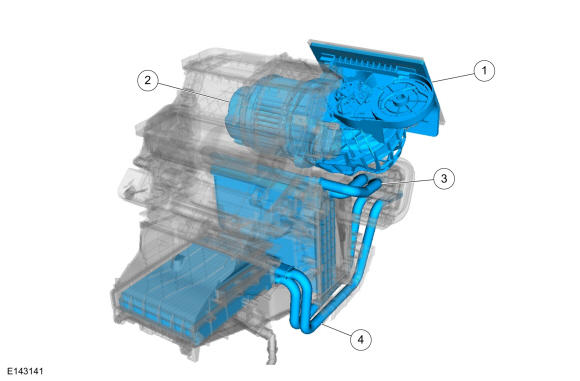

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

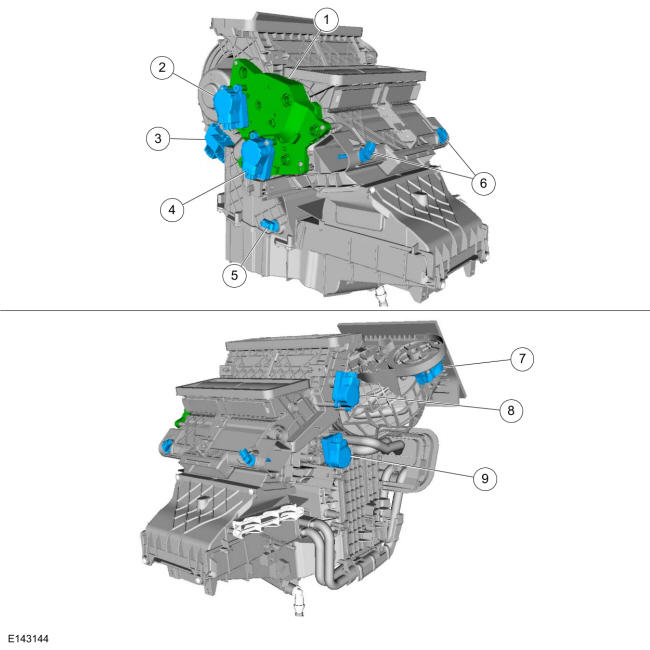

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Footwell vent door actuator |
| 3 | Blower motor speed control |
| 4 | Driver side temperature door actuator |
| 5 | Evaporator temperature sensor |
| 6 | Footwell air discharge temperature sensors |
| 7 | Air inlet door actuator |
| 8 | Defrost vent/register door actuator |
| 9 | Passenger side temperature door actuator |

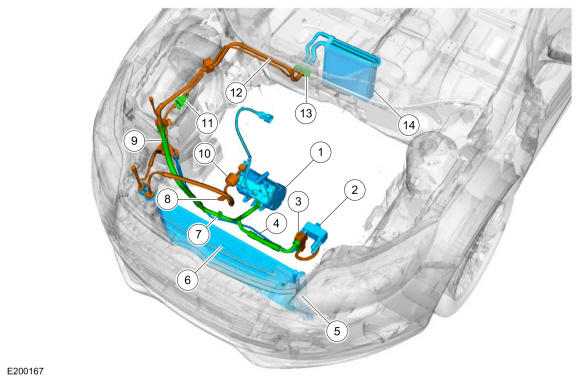

| Item | Description |
|---|---|
| 1 | A/C electric compressor |
| 2 | High voltage battery coolant cooler |
| 3 | High voltage battery coolant cooler thermostatic expansion valve and isolator solenoid valve assembly (part of high voltage battery coolant cooler) |
| 4 | High voltage battery coolant cooler liquid line |
| 5 | Receiver drier (part of condenser) |
| 6 | Condenser |
| 7 | A/C low pressure sensor |
| 8 | A/C high pressure sensor |
| 9 | A/C compressor inlet line |
| 10 | A/C compressor outlet line |
| 11 | Cabin A/C isolator solenoid valve |
| 12 | Cabin Thermostatic Expansion Valve (TXV) manifold and tube assembly |
| 13 | Cabin Thermostatic Expansion Valve (TXV) |
| 14 | Evaporator |

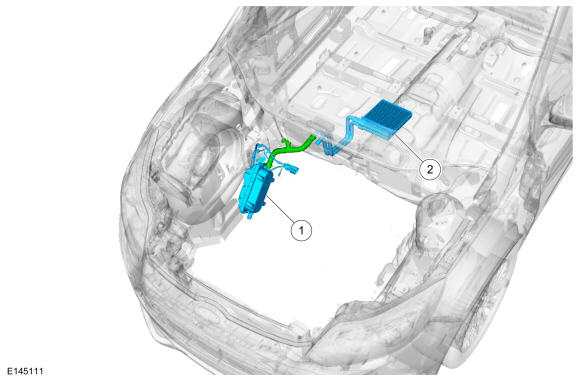

| Item | Description |
|---|---|
| 1 | Cabin coolant heater |
| 2 | Heater core |
