Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment

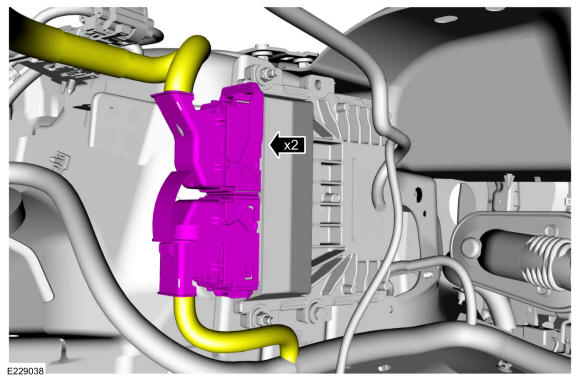

  2. Disconnect the PCM electrical connectors.
    GFD193939Courtesy of FORD MOTOR COMPANY

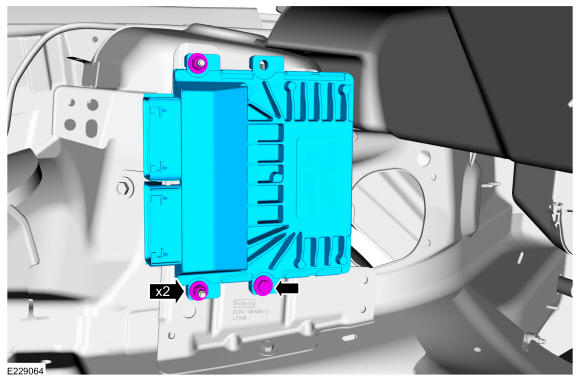

  3. Remove the bolt and nuts.

    Torque: 89 lb.in (10 Nm)

GFD193940Courtesy of FORD MOTOR COMPANY
