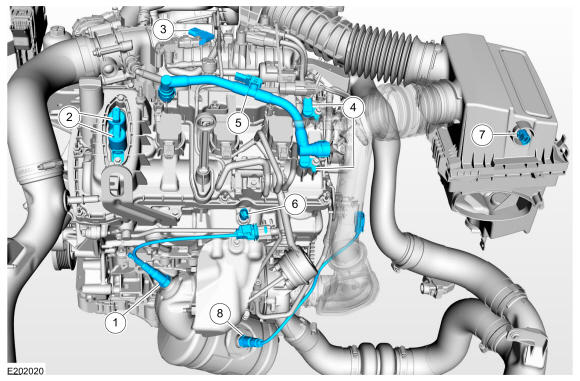

Electronic Engine Controls Component Location - LH
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Left hand HO2S |
| 2 |
Left hand VCT oil control solenoids |
| 3 |
MAP sensor |
| 4 |
Left hand CMP sensors |
| 5 |
Crankcase pressure sensor |
| 6 |
CHT sensor |
| 7 |
IAT sensor |
| 8 |
Left hand Catalyst monitor sensor |
