All-Wheel Drive (AWD) Module: Installation

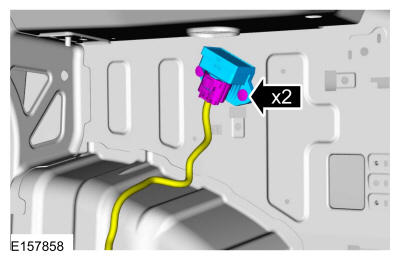

    • Install the AWD module and the push pin fasteners.

    • Connect the AWD module electrical connector.

    GFD195377Courtesy of FORD MOTOR COMPANY

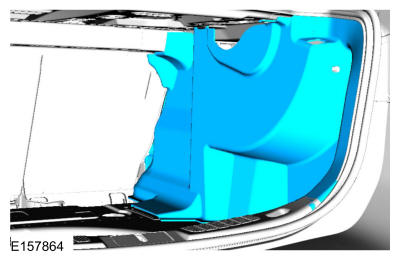

  2. Install the loadspace trim panel.
GFD195376Courtesy of FORD MOTOR COMPANY
