Lumbar Assembly: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

All seats

1.

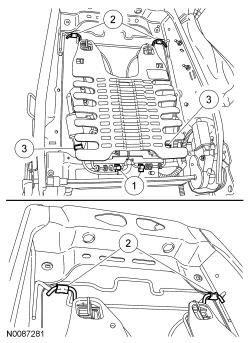

NOTE: Shown from the front with backrest foam pad removed for clarity.

Install the power lumbar assembly.
1. 1.

  Position the power lumbar assembly and attach the 2 retainers to the backrest frame.
  - Make sure the retainers come through the backrest frame on the other side and lock in place.
1. 2.

  NOTE: Always use new clips.

  Position the power lumbar assembly wire in front of the backrest frame. Install 2 new clips retaining the power lumbar assembly to the backrest frame wire.
1. 3.

  Connect the 2 power lumbar motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

2.

Attach the backrest trim cover J-clips at the bottom.

3.

Install the backrest TED in the following sequence.
1. 1.

  Position the backrest TED between the backrest frame and backrest foam pad.
1. 2.

  Engage the 2 backrest TED lower clips to the backrest foam pad wire.
1. 3.

  Engage the backrest TED upper retainers to the backrest frame wire.
1. 4.

  Connect the electrical connector and attach the pin-type retainer to the backrest frame.

4.

Attach the backrest trim cover upper J-clip to the backrest frame wire.

5.

Install the carpet flap toe-kick in the following sequence.
1. 1.

  Attach the J-clip to the cushion frame.
1. 2.

  Install the pin-type retainers to the cushion side shield and recliner cover.
1. 3.

  Attach the 2 J-clips to the backrest frame wire.

6.

Install the backrest panel in the following sequence.
1. 1.

  NOTE: The clips in the middle of the backrest panel can be damaged if the bottom of the backrest panel is not pivoted away from the seat.

  Pivot the bottom of the backrest panel out as far as it will go and slide the backrest panel up, engaging the upper retainers on the other side of the backrest frame wires.
1. 2.

  Align the backrest panel middle clips to the backrest frame wires.
1. 3.

  Align the lower retainers in the backrest panel and push in, engaging the clips.
  - Make sure the clips in the middle of the backrest panel are engaged to the backrest frame wires.

7.

Repower the SRS.
If a passenger seat has been serviced, do not prove out the SRS at this time. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Supplemental Restraint System .

Passenger seat

8.

Carry out the Occupant Classification System (OCS) System Reset. For additional information, refer to the General Procedures portion of Supplemental Restraint System .
