Engine Controls - Fuel Charging And Controls - 2.3L ECOBOOST (231KW/314PS)
>>
Description And Operation
>>
Fuel Charging and Controls - Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

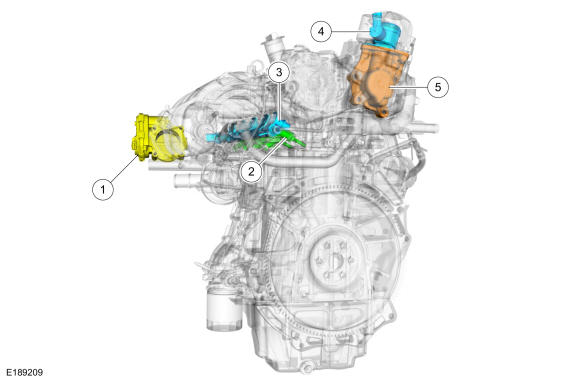

Fuel Charging and Controls - Component Location
2.3L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB)
2
Fuel injector
3
Fuel rail
4
High-pressure fuel pump
5
High-pressure fuel pump drive unit
FPDM

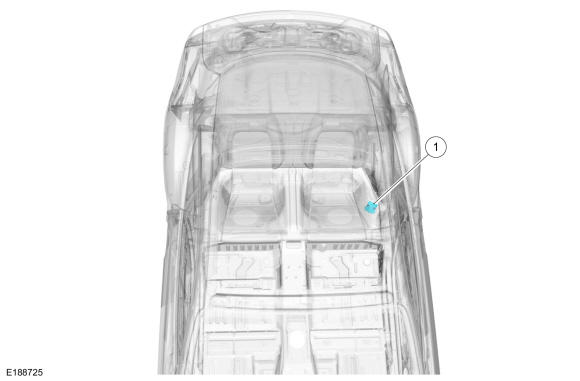

Courtesy of FORD MOTOR COMPANY
Item
Description
1
FPDM. (The FPDM is located beneath the rear seat cushion on the LH side).
