Front Seat Climate Control Module [SCME]: Removal

NOTE: LHD passenger seat shown, RHD passenger seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

2.

Position the front passenger seat to the full upward and full rearward positions.

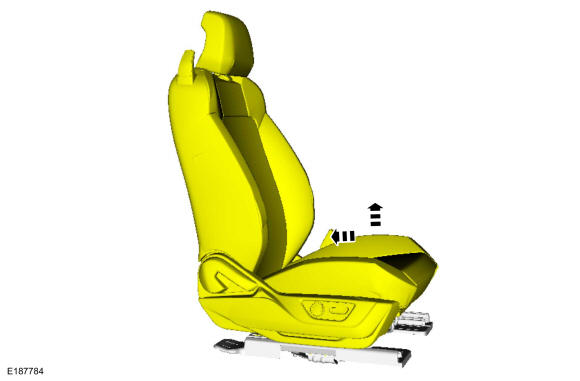

GFD133027

Courtesy of FORD MOTOR COMPANY

3.

Remove the screws and position the SCME aside.

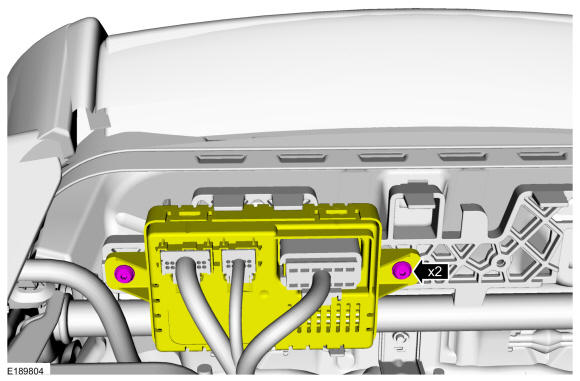

GFD133028

Courtesy of FORD MOTOR COMPANY

4.

Remove the SCME.
1. 1.

  Release the locking wedges.
1. 2.

  Disconnect the electrical connectors.

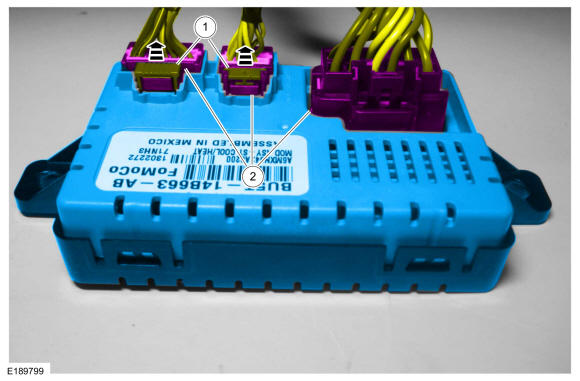

GFD133029

Courtesy of FORD MOTOR COMPANY
