Fuel Pump Driver Module (FPDM): Removal
NOTE:
The FPDM is located beneath the rear seat cushion on the LH side.
- 1.
Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- 2.

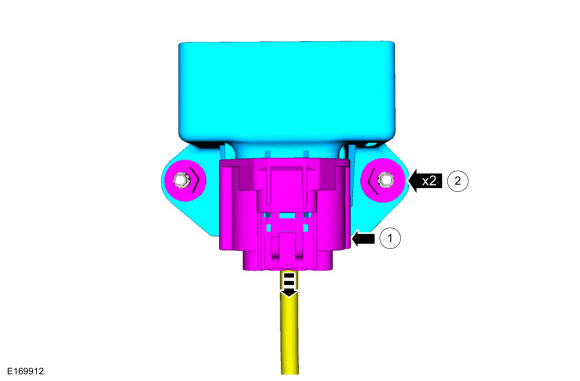

- 1.
Disconnect the FPDM electrical connector.
- 2.
Remove the FPDM retaining nuts and then remove the FPDM.
- 1.
