OEM Ground Distribution: Grounds

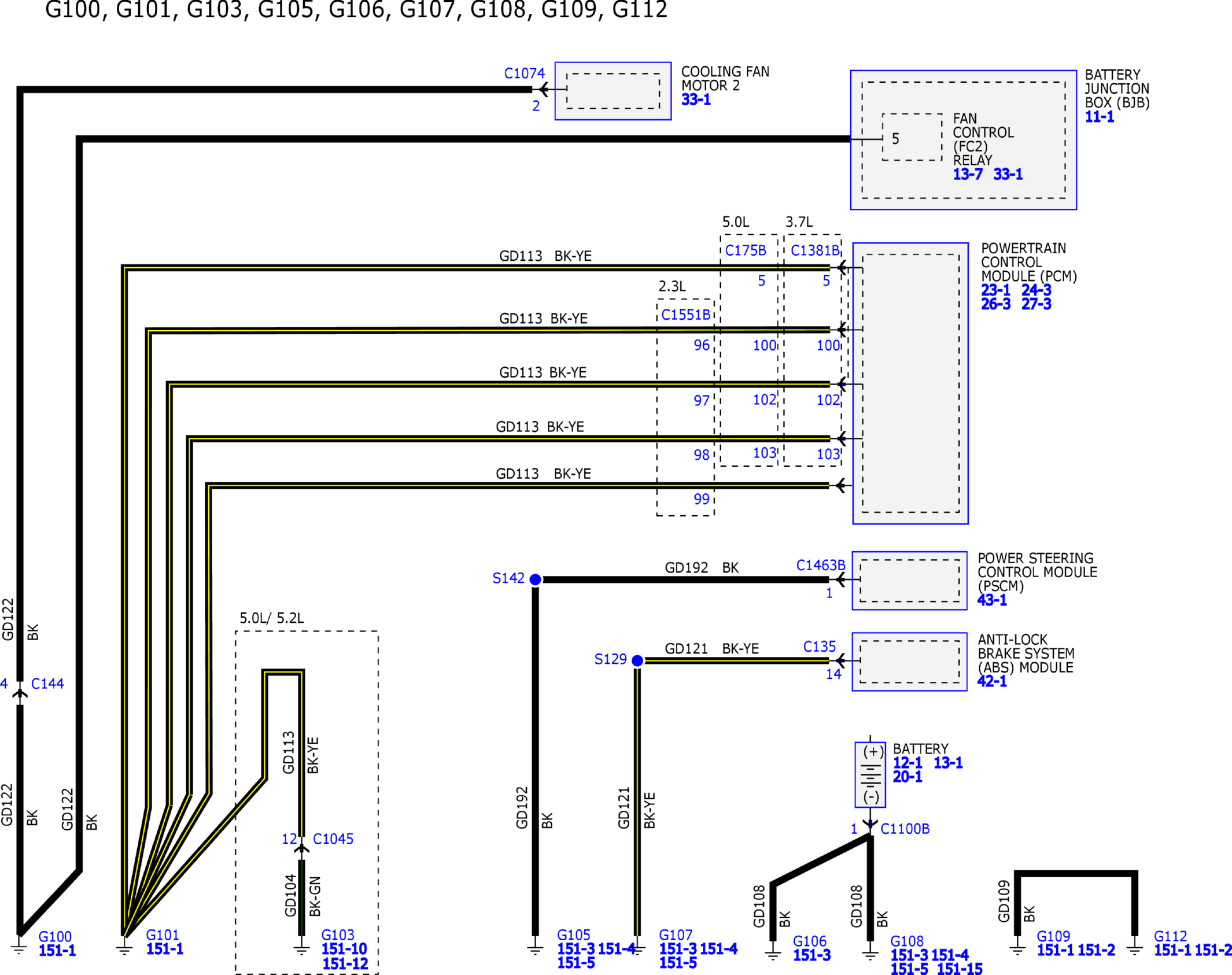

GFDW57346Courtesy of FORD MOTOR COMPANY

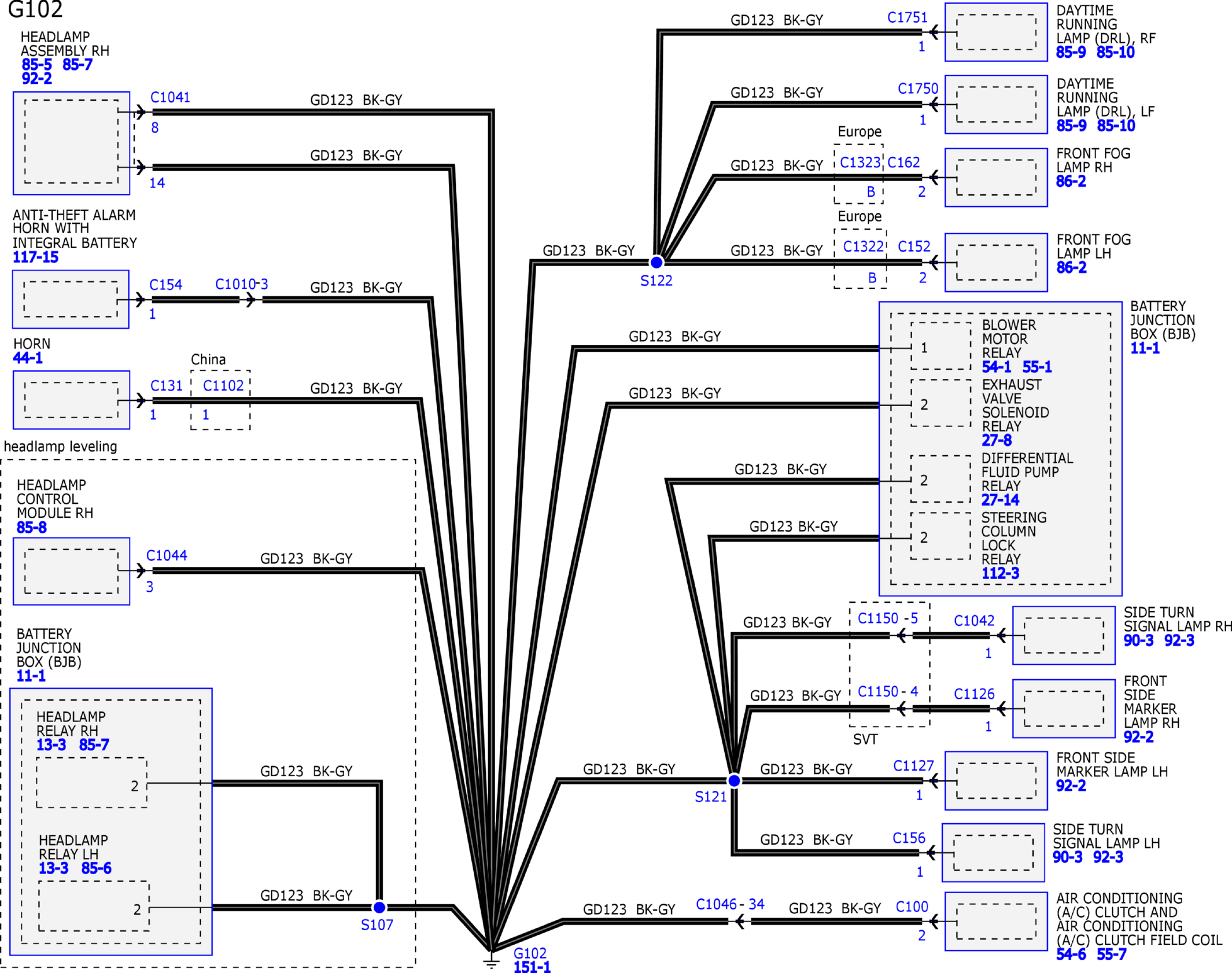

GFDW57347Courtesy of FORD MOTOR COMPANY

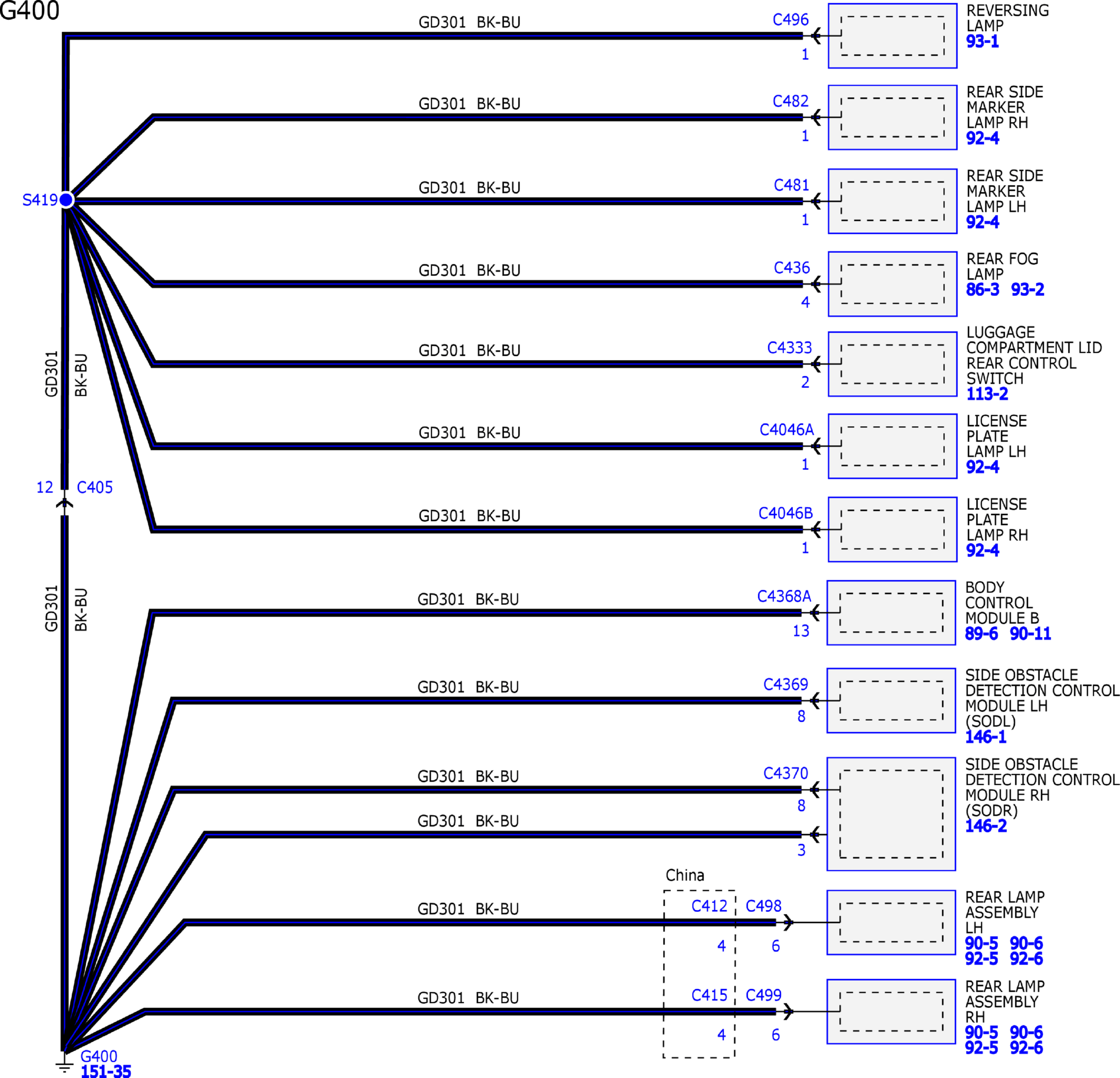

GFDW57348Courtesy of FORD MOTOR COMPANY

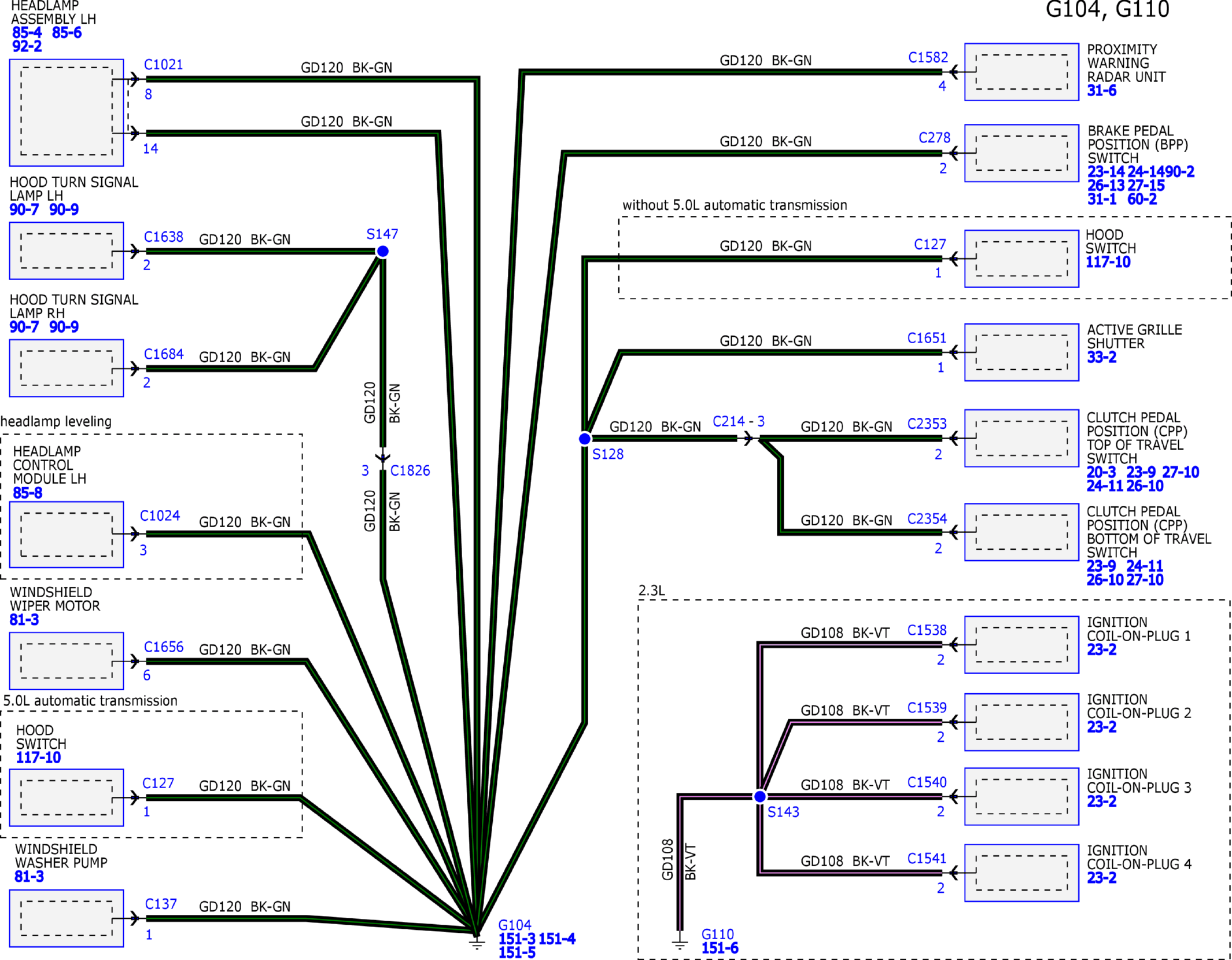

GFDW57349Courtesy of FORD MOTOR COMPANY

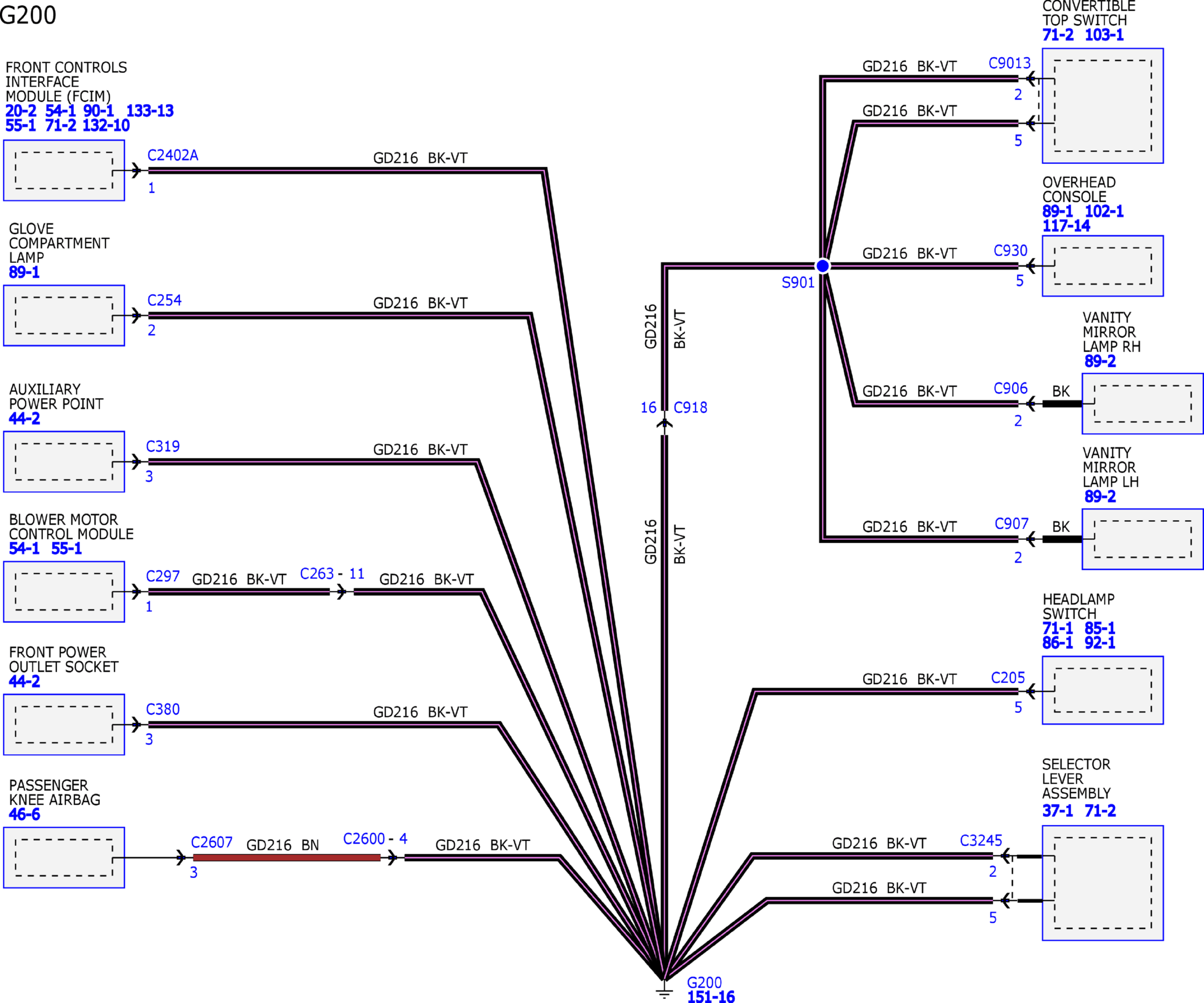

GFDW57350Courtesy of FORD MOTOR COMPANY

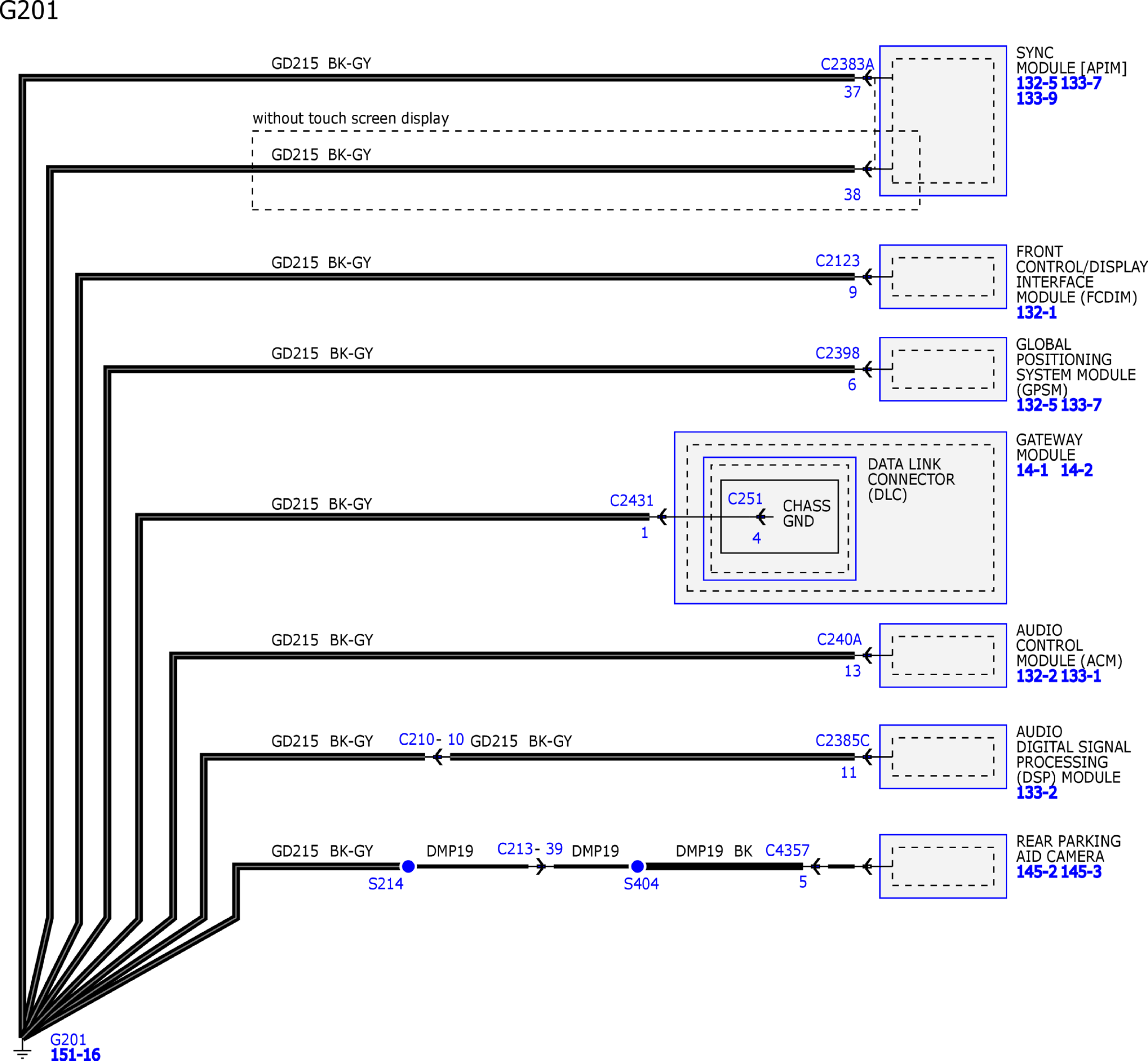

GFDW57351Courtesy of FORD MOTOR COMPANY

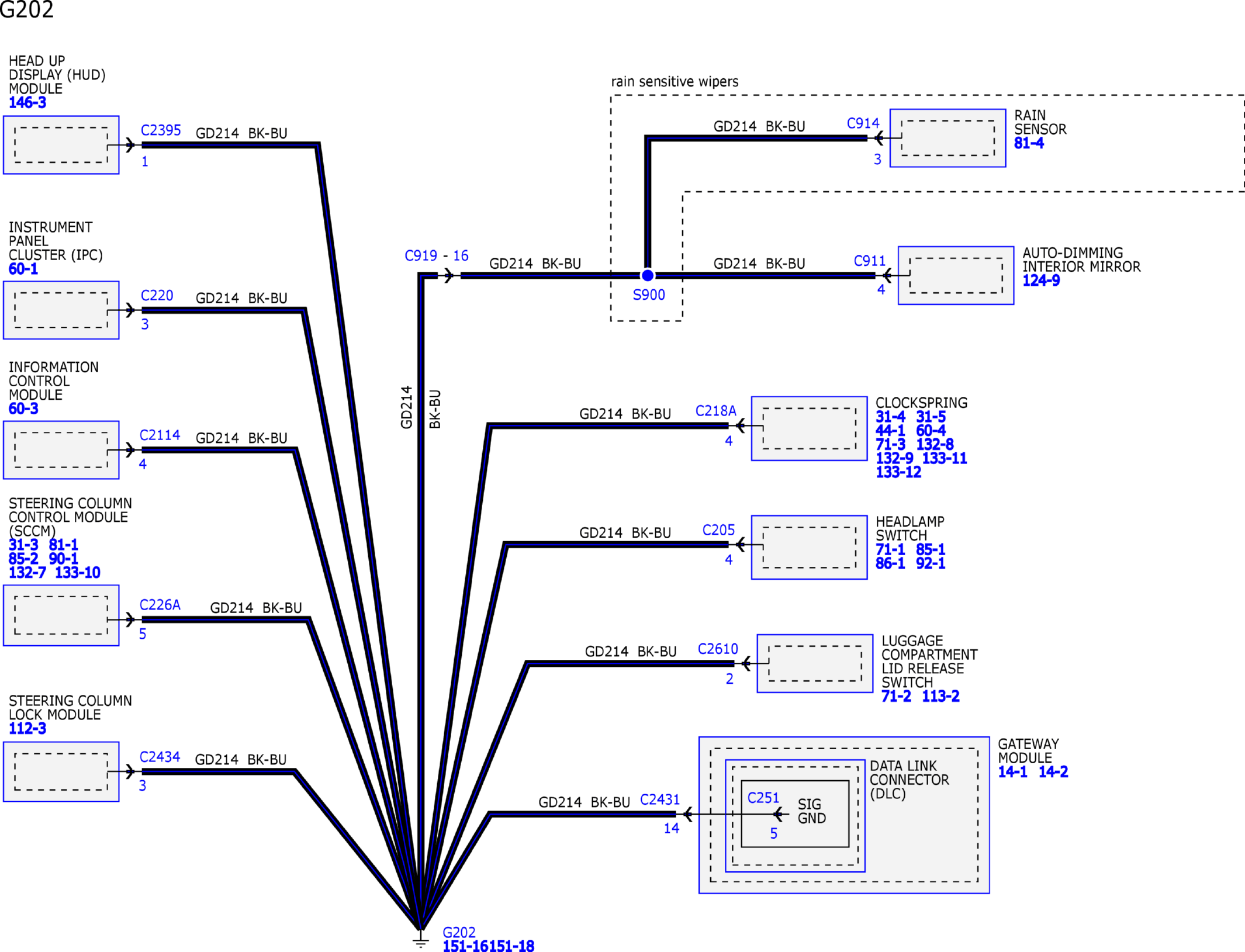

GFDW57352Courtesy of FORD MOTOR COMPANY

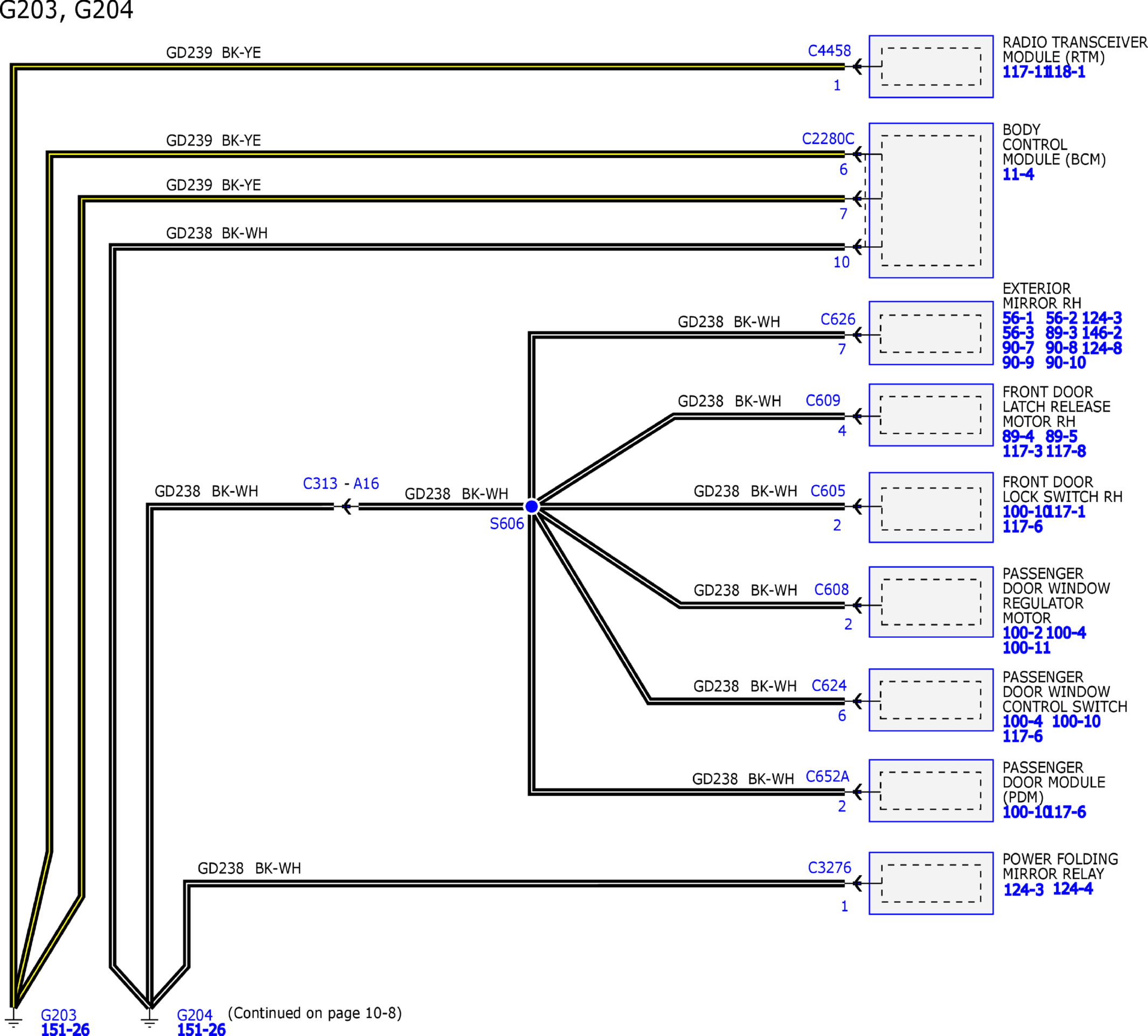

GFDW57353Courtesy of FORD MOTOR COMPANY

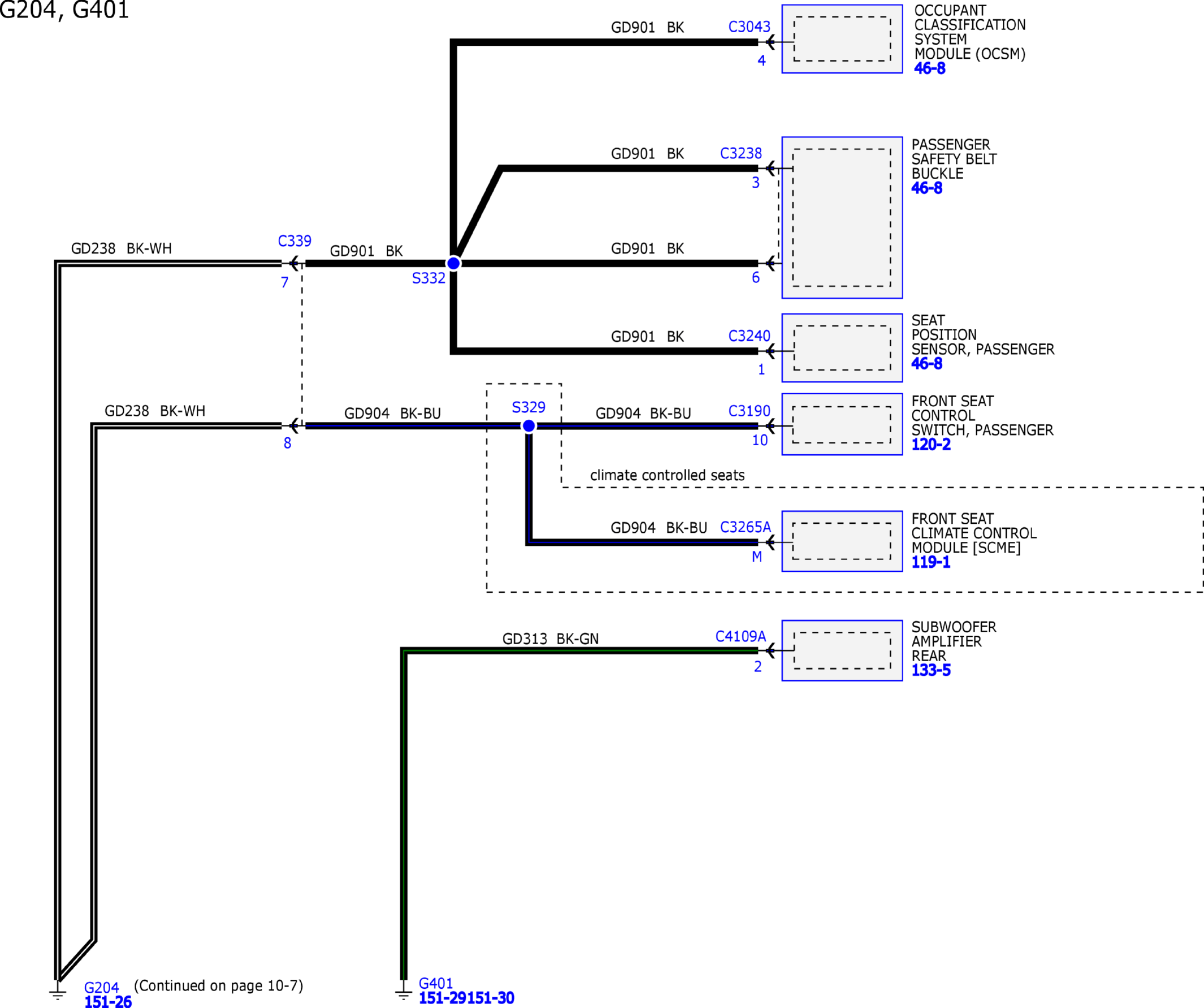

GFDW57354Courtesy of FORD MOTOR COMPANY

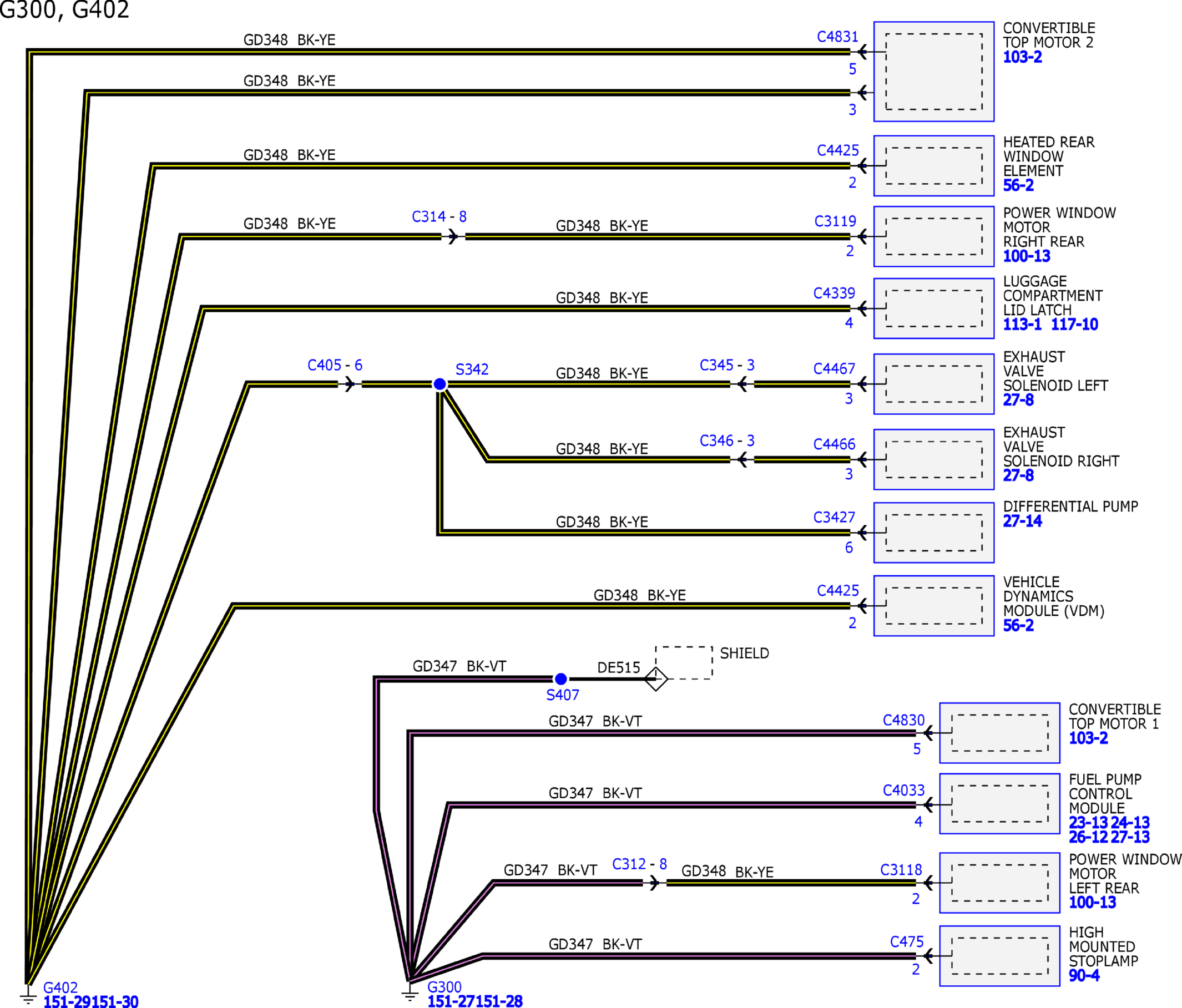

GFDW57355Courtesy of FORD MOTOR COMPANY

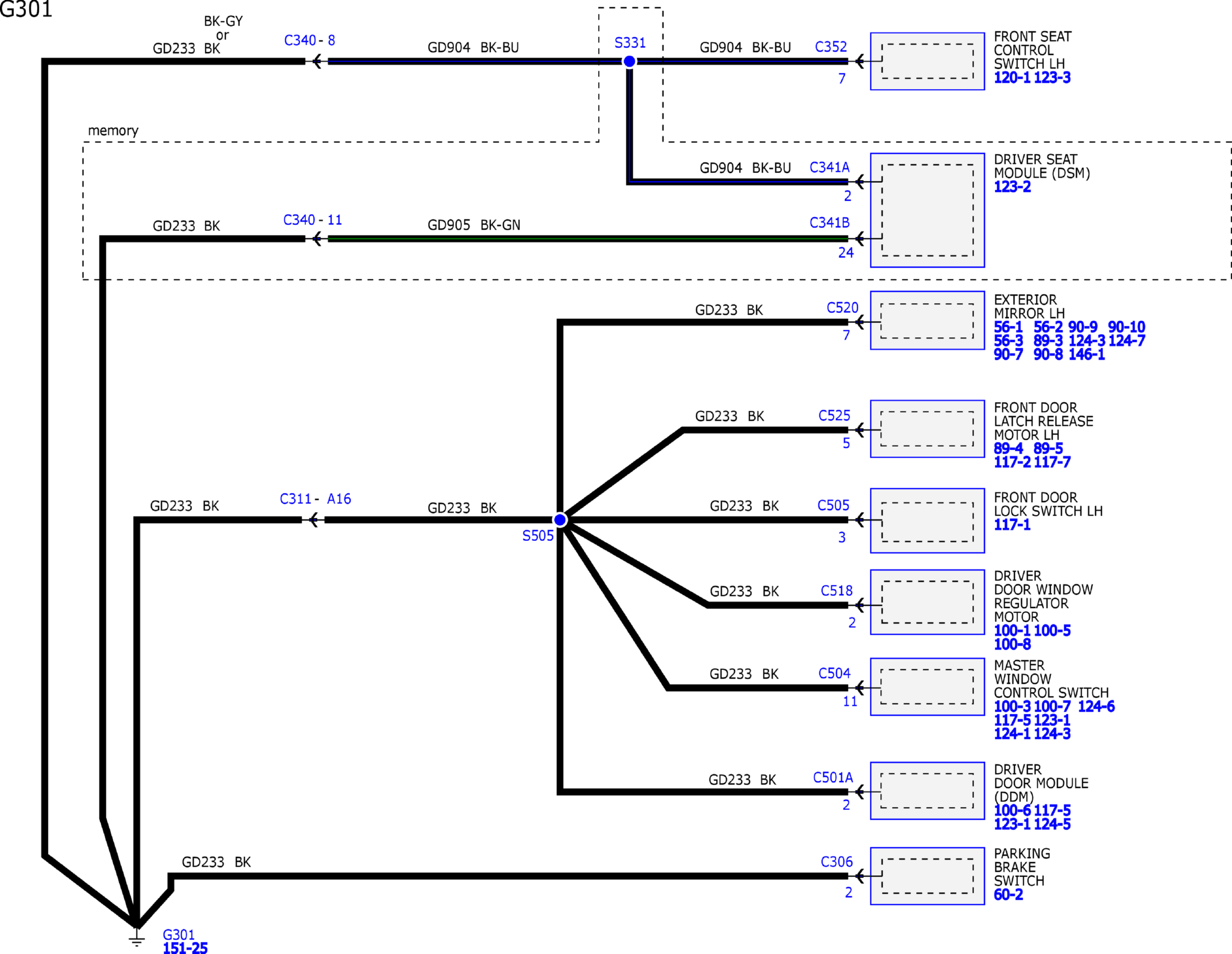

GFDW57356Courtesy of FORD MOTOR COMPANY
