Fuel Pump Driver Module (FPDM): Installation
1.

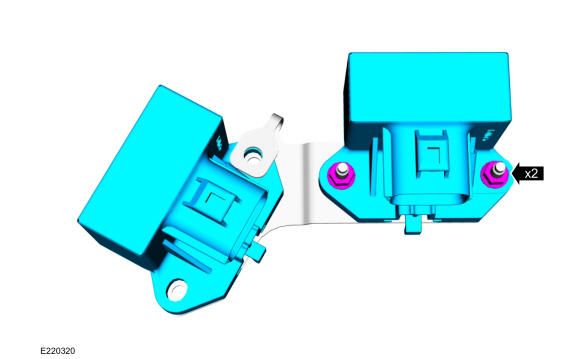

Install the FPDMs to the FPDM bracket, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
2.

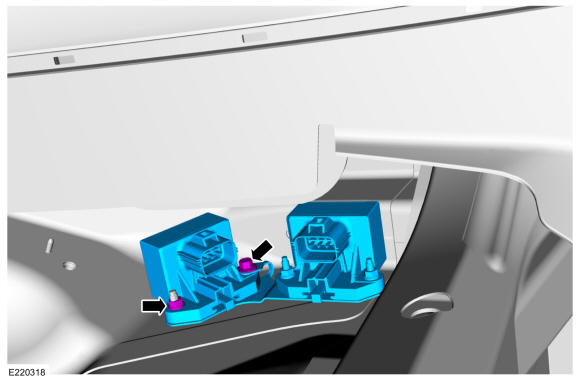

Install the FPDM assembly, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
3.

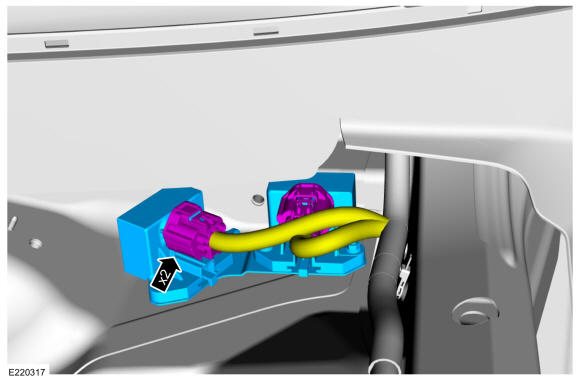

Connect the FPDM electrical connectors.
Courtesy of FORD MOTOR COMPANY
4.
Install the rear seat cushion. Refer to:
Rear Seat Cushion
.
